SIC Structure SC30120PT 30A/1200V Silicon Carbide Schottky Diode in TO-247AB Package
Price:
Negotiable
MOQ:
3,000 Pieces
Delivery Time:
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Product Description
SILICON CARBIDE SCHOTTKY DIODE
Electronics Component
Part Number: SC30120PT

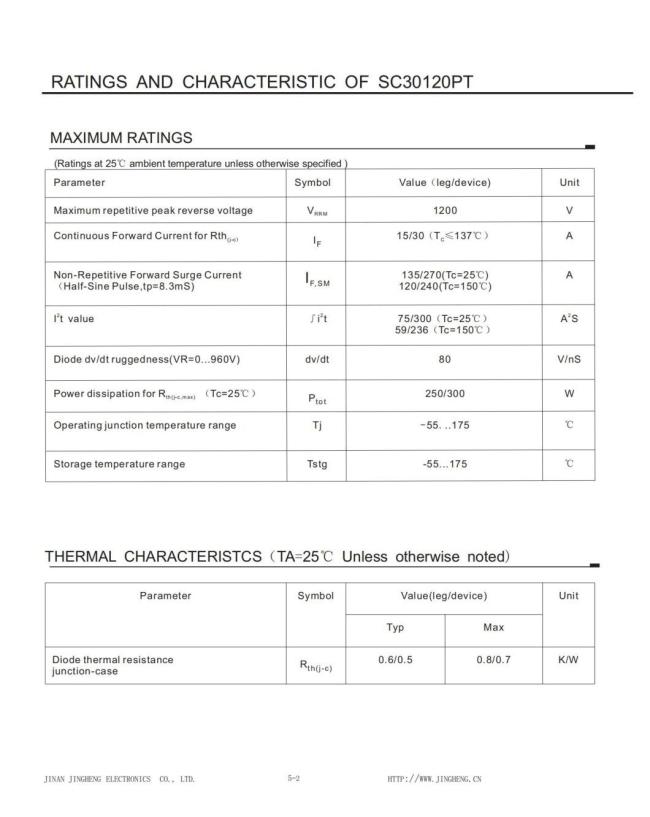

Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(175ºC) | VF(25ºC) | VF(175ºC) | Tj | Outline |
| V | A | μA | μA | V | V | ºC | ||
| SC20120PT | 120 | 2×10 | 5 | 50 | 1.8 | 2.5 | 175 | TO-247AB |
| SC30120PT | 1200 | 2×15 | 5 | 50 | 1.8 | 2.5 | 175 | |
| SC40120PT | 1200 | 2×20 | 5 | 50 | 1.8 | 2.5 | 175 |
Brand: JF logo
Package: TO-247AB
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· Low Reverse Leakage Current
· High surge capability
· High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
· Fast switching for high efficiency
· Low forward voltage drop
· Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
