DO-201AD Package Silicon GPP Junction Fast Recovery Diode SF51G/SF54G/SF56G/SF57G/SF58G
Price:
Negotiable
MOQ:
3,000 Pieces
Delivery Time:
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Product Description

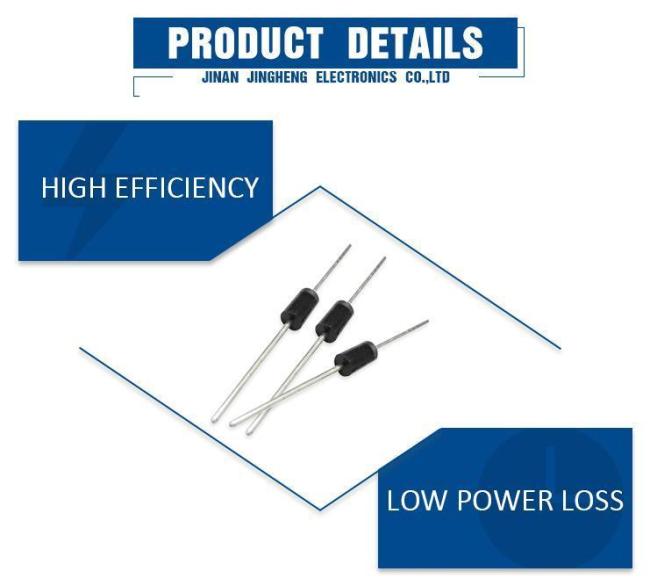

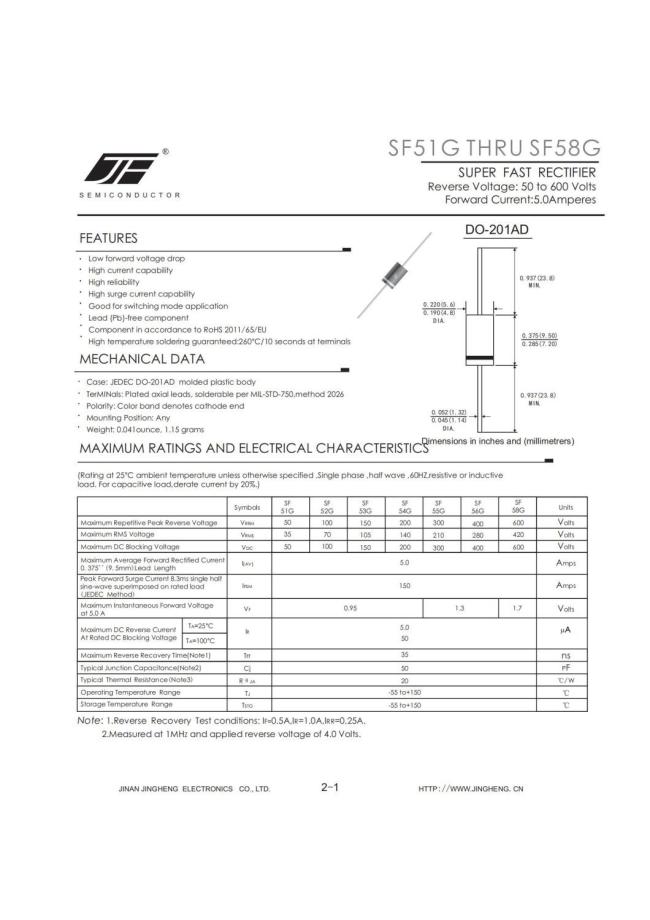

SUPER FAST RECTIFIER DIODES
Electronics Component
Part Number: SF51G THRU SF58G (GPP JUNCTION)
Major Parameter:
Reverse Voltage: 50 to 00 Volts6
Forward Current: 5.0Amperes
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| SF51/SF51G | 50 | 5.0 | 5.0 | 50 | 0.95 | 35 | DO-201AD | |
| SF54/SF54G | 200 | 5.0 | 5.0 | 50 | 0.95 | 35 | ||
| SF56/SF56G | 400 | 5.0 | 5.0 | 50 | 1.3 | 35 | ||
| SF57/SF57G | 500 | 5.0 | 5.0 | 50 | 1.7 | 35 | ||
| SF58/SF58G | 600 | 5.0 | 5.0 | 50 | 1.7 | 35 |
Brand: JF
Package: DO-201AD Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
>Low forward voltage drop
>High current capability
>High reliability
>High surge current capability
>Lead (Pb)-free component
>Component in accordance to RoHS 2011 65 EU
>High temperature soldering guaranteed:260 C/10 seconds at terminals
Application:
Used in power supply, lighting, auto, home appliance field
