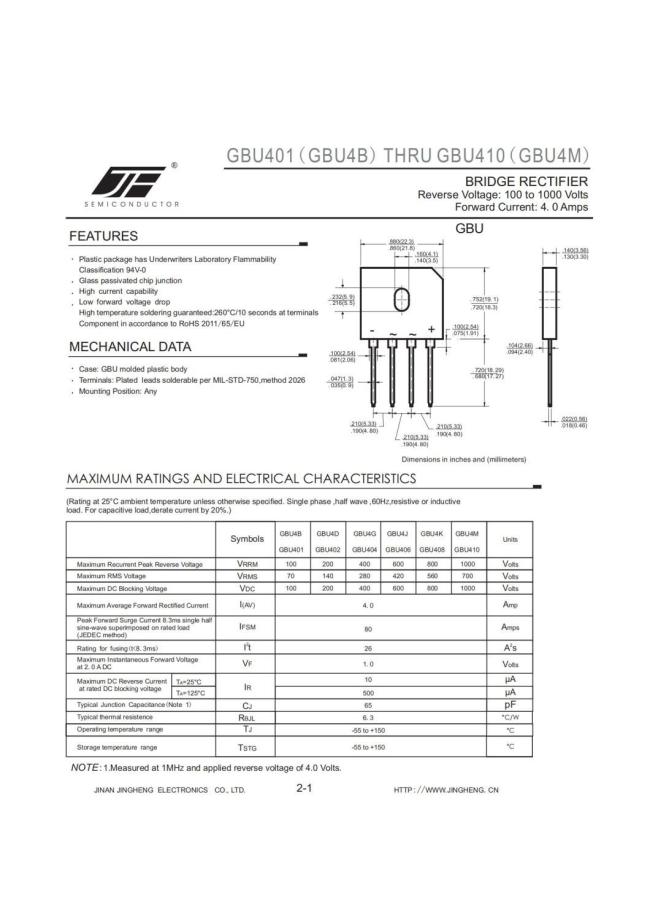

GBU410 Bridge Rectifier Diode for Performance Package Size 20.00cm * 40.00cm * 15.00cm
Price:
Negotiable
MOQ:
3,000 Pieces
Delivery Time:
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Product Description
BRIDGE RECTIFIER
Electronics Component
Electronics Component
Part Number: KBP406 TO KBP410
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr |
| V | A | μA | μA | uA | V | nS | |
| GBU410 | 1000 | 4.0 | 10 | 500 | 1.1 | ||
| GBP406 | 600 | 4.0 | 10 | 500 | 1.1 | ||
| GBP408 | 800 | 4.0 | 10 | 500 | 1.1 | ||
| GBP410 | 1000 | 4.0 | 10 | 500 | 1.1 |
Brand: JF / JH
Package: GBU package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Glass passivated chip junction
Rating to 1000V PRV
Ideal for printed circuit board
High temperature soldering guaranteed:260 C/10 seconds at terminals
°
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
