GPP Chip 2A D 2W005/2W02/2W04/2W06/2W08/2W10 Bridge Rectifier Diode with WOB Package
Price:
Negotiable
MOQ:
3,000 Pieces
Delivery Time:
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Product Description

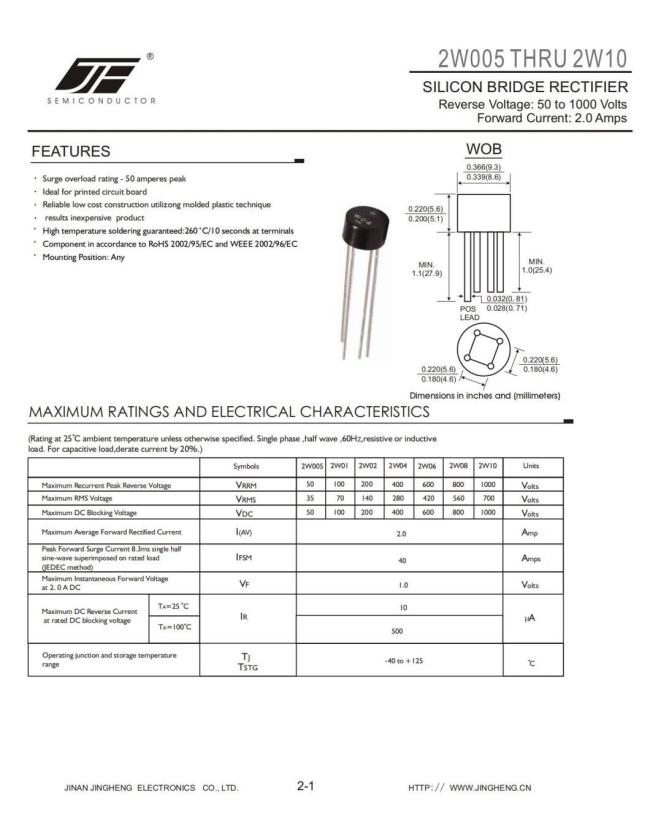

SUPER FAST RECTIFIER DIODES
Electronics Component
Part Number: 2W005/2W01/2W02/2W04/2W06/2W08/2W10
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | μA | uA | V | nS | ||
| 2W01 | 100 | 2.0 | 10 | 500 | 1.1 | WOB | ||
| 2W02 | 200 | 2.0 | 10 | 500 | 1.1 | |||
| 2W04 | 400 | 2.0 | 10 | 500 | 1.1 | |||
| 2W06 | 600 | 2.0 | 10 | 500 | 1.1 | |||
| 2W08 | 800 | 2.0 | 10 | 500 | 1.1 | |||
| 2W10 | 1000 | 2.0 | 10 | 500 | 1.1 |
Brand: JF / JH
Package: WOB package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Surge overload rating - 50 amperes peak
Ideal for printed circuit board
Reliable low cost construction utilizong molded plastic technique
results inexpensive product
High temperature soldering guaranteed:260 C/10 seconds at terminals
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Mounting Position: Any
Application:
Used in power supply, lighting, auto, home appliance field
