BRIDGE RECTIFER DIODE DB201S/DB202S/DB203S/DB204S/DB206S/DB207S with DBS Package
Price:
Negotiable
MOQ:
3,000 Pieces
Delivery Time:
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Product Description

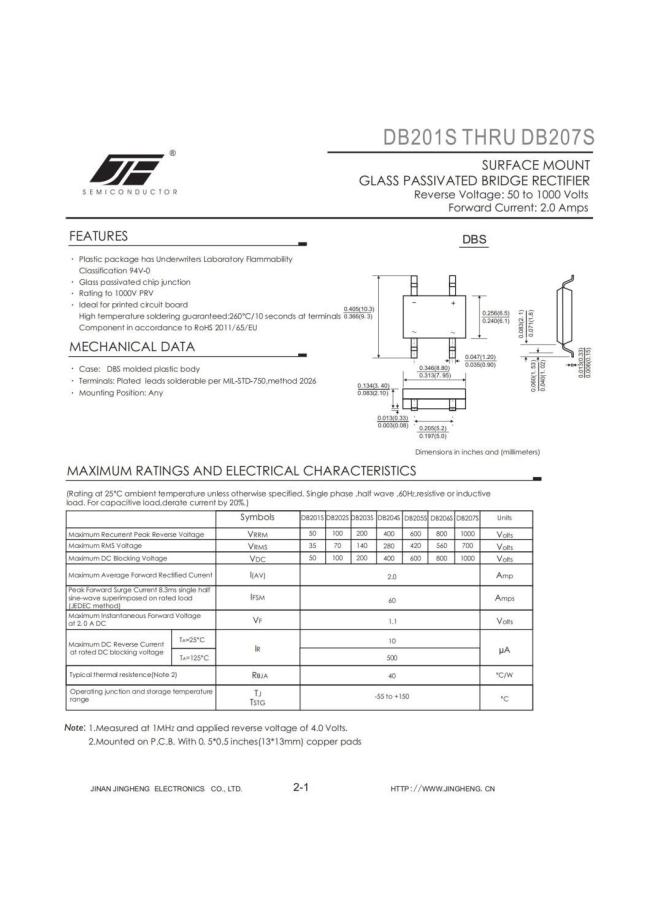

SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Electronics Component
Electronics Component
Part Number: DB201S /DB202S/DB203S/DB204S/DB206S/ DB207S
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | μA | uA | V | nS | ||
| DB202S | 50 | 2.0 | 10 | 500 | 1.1 | DBS | ||
| DB202S | 100 | 2.0 | 10 | 500 | 1.1 | |||
| DB203S | 200 | 2.0 | 10 | 500 | 1.1 | |||
| DB204S | 400 | 2.0 | 10 | 500 | 1.1 | |||
| DB205S | 600 | 2.0 | 10 | 500 | 1.1 | |||
| DB206S | 800 | 2.0 | 10 | 500 | 1.1 | |||
| DB207S | 1000 | 2.0 | 10 | 500 | 1.1 |
Brand: JF / JH
Package: DBS package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Glass passivated chip junction
Rating to 1000V PRV
Ideal for printed circuit board
High temperature soldering guaranteed:260 C/10 seconds at terminals
°
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
