ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
Price:
Negotiable
MOQ:
3,000 Pieces
Delivery Time:
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Product Description
SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Electronics Component
Electronics Component

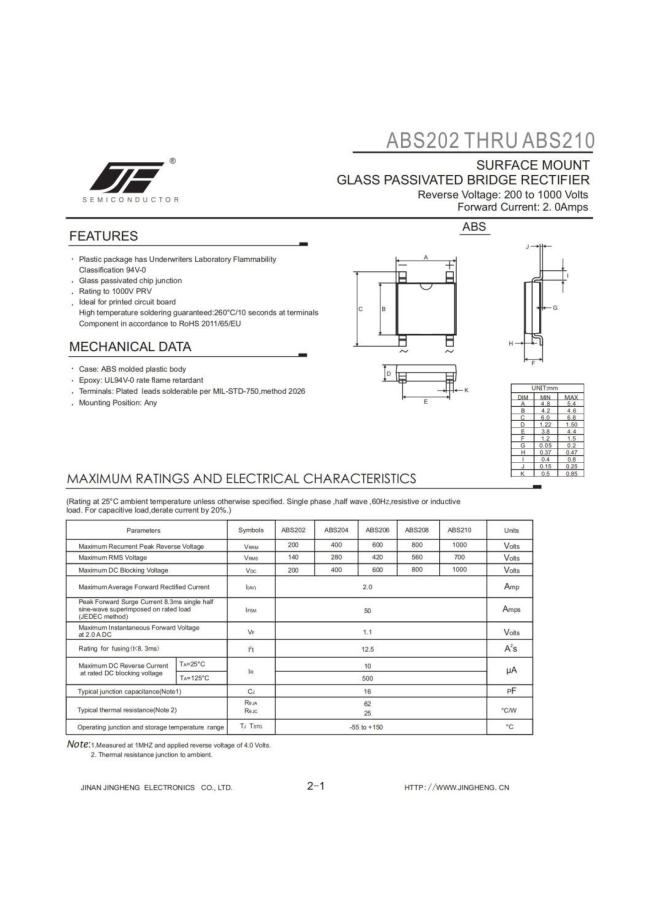

Part Number: ABS202/ABS204/ABS206/ABS208/ABS210
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | μA | uA | V | nS | ||
| ABS202 | 200 | 2.0 | 10 | 500 | 1.1 | ABS | ||
| ABS204 | 400 | 2.0 | 10 | 500 | 1.1 | |||
| ABS206 | 600 | 2.0 | 10 | 500 | 1.1 | |||
| ABS208 | 800 | 2.0 | 10 | 500 | 1.1 | |||
| ABS210 | 1000 | 2.0 | 10 | 500 | 1.1 |
Brand: JF / JH
Package: ABS package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Glass passivated chip junction
Rating to 1000V PRV
Ideal for printed circuit board
High temperature soldering guaranteed:260 C/10 seconds at terminals
°
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
