MB6M/MB8M/MB10M JF DIP Bridge Rectifier Diode in MBM Package for GPP Chip Structure
Price:
Negotiable
MOQ:
3,000 Pieces
Delivery Time:
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Product Description

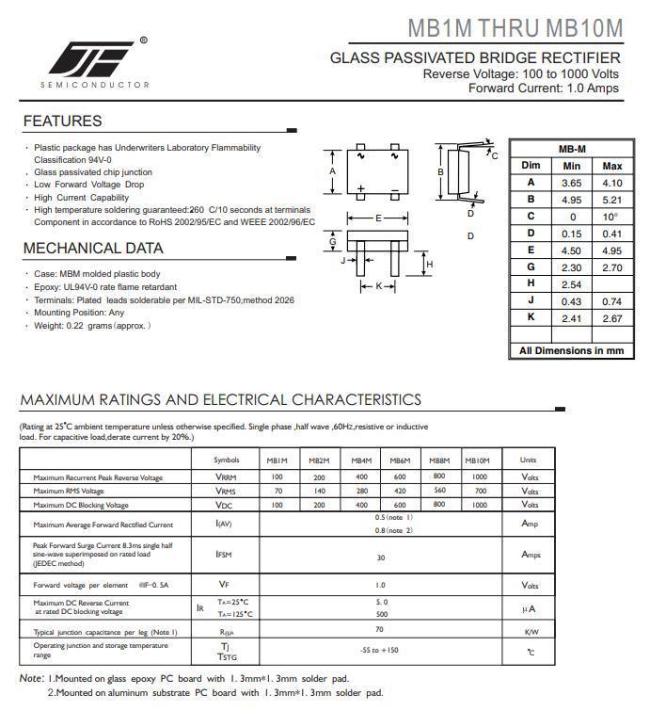

GLASS PASSIVATED BRIDGE RECTIFIER
Electronics Component
Electronics Component
Part Number: MB1M THRU MB10M
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | μA | uA | V | nS | ||
| MB6M | 600 | 1.0 | 5 | 100 | 1.1 | MBM | ||
| MB8M | 800 | 1.0 | 5 | 100 | 1.1 | |||
| MB10M | 1000 | 1.0 | 5 | 100 | 1.1 |
Brand: JF Logo

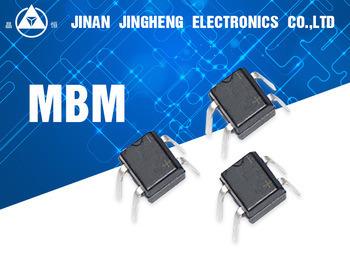

Package: MBM package ( DIP type)
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Glass passivated chip junction
Rating to 1000V PRV
Ideal for printed circuit board
High temperature soldering guaranteed:260 C/10 seconds at terminals
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
