Excavator Telescopic Boom With Clamshell Bucket / Grapple 25m 30m 32m
Excavator Telescopic Boom Telescopic Arm with Clamshell Bucket / Grapple 25m 28m 30m 32m
Introduction of one set of Kaiping Zhonghe Machinery's excavator telescope:
Excavator dipper arm with clamshell bucket is a common tool in construction work. Its famous for its long reach and deeper digging depth. For example, 18ton excavator can carry a 18m telescopic boom excavator, the digging depth reach 18m.
Suitable working environment of excavator telescopic arm with clamshell bucket / grapple:
* Construction work: digging long reach like foundation pit, deep pit etc
Specification details of one set of telescopic dipper arm:
| Digging Depth(m) | Excavator Model(ton) | Bucket Capacity of Clamshell Bucket(cbm) | Counterweight(ton) |
| 12 | 20-25T | 0.6 | 0 |
| 14 | 0.4 | 0 | |
| 16 | 0.4 | 0 | |
| 18 | 0.4 | 2 | |
| 20 | 26-28 | 0.6 | 3 |
| 20-22m | 30-33T | 1.5cbm | 0 |
| 35-38T | |||
| 25m | 30-33T | 3T | |
| 35-38T | 0 | ||
| 35-38T | 2.2cbm | 6T | |
| 40-50T | 0 | ||
| 26-30m | 36-50T | 1.5cbm | 5T |
| 1.5cbm | |||
| 2cbm | 6T | ||
| 2cbm | |||
| 2.2cbm | 7T | ||
| 2.2cbm | |||
| 40-50T | 2.2cbm | 6T | |
| 31-32m | 40-50T | 2.2cbm | 7.2T |
| 2.5cbm | 7.2T | ||
Welcome to send your excavator model to us! Suitable length will be recommended soon.
Model drawing of 16m telescopic arm for excavator, model drawing of 32m telescopic arm for excavator are as below:
More details of one set of telescopic dipper arm:
* Four pulley design: There are two sliding wheels on the top and two on the bottom, which separate the high-pressure hose and the wire rope to reduce mutual wear. Less wear can extend the service life of the telescopic dipper arm.
* Adopt 30mm main rope: We use thicker wire ropes, which can withstand greater tension, are not easy to break, and withstand greater pressure. The wire ropes of telescopic dipper arm are highly wear-resistant and have a long service life.
* Ningbo connector: It is made of metal and has high compression resistance and expansion capacity. Telescopic dipper arm is easy to load and unload, and can be load and unload, and can be loaded and unloaded freely.
* High Quality----Nylon Sliders: siding block, it is nylon material, it can reduce grinding. Our sliding wheel is POM Material, with high mechanical strength and rigidity.
* Lubrication concentrate system: Many holes, many holes on the top and at the side, it is easy and convenient for the operator to refill lubrication oil, they all concentrate on the font of arm.
Front attachments of one set of excavator telescopic arm:
* Excavator Clamshell Bucket:
Used for digging sand soil silt dirt etc
Two types: with teeth type, without teeth type
* Excavator Bucket Grapple
Used for grabbing stone gravel etc

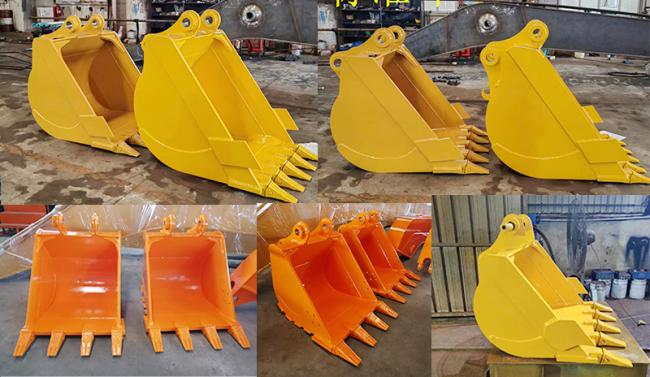

* Excavator Standard Bucket
Used for digging sand soil silt dirt etc
Production Details of one set of telescopic dipper arm:
Main Equipments of Production Line
* Professional *High Control *Strict Control *High Guaranteed
Production Line
* Every procedure of production of telescopic excavator is under strict control. Director Mr.Lee check the quality of every products regulary. Every design drawing are full tested and checked before producing. Director Mr.Zhao test every products and supervise every products every day.
* Every procedure of production of telescopic excavator is strict proceeded.
* Weld flaw detection is our must do procedure. Every welding are full tested before entering into next procedure.
By doing so, the welding bead is full guaranteed which will not easy crack.
Engineering Cases of telescopic excavator:
The feedback from clients is very positive. Many clients mentioned that the telescopic excavator work high efficiency and with lower fail rate comparing with other suppliers.
Introduction of the team of Kaiping Zhonghe Machinery Company:
The Exhibtion We Attended:
The Certifications We Have:
Contact Details:
Kaiping Zhonghe Machinery is a big Manufacturer of Excavator Arms and Booms
Key word: long reach boom excavator, pile arm pile boom, demolition arm, shorten arm/ tunnel arm, rock arm rock boom, telescopic arm, etc
Welcome to contact for a big discount!
