400-500kg Capacity Hydraulic Square Hay Balers 2620*2140*3390MM Max. Capacity 5 ton/h

Price Negotiable
Price: Negotiation
MOQ: 1
Delivery Time: Negotiable
Brand: UT
Product Description

Square Silage hydraulic baling machines

Alfalfa Square baling machines Silage Baler Machine In Pakistan Hydraulic Square Hay Balers 400-500kg


Product Description

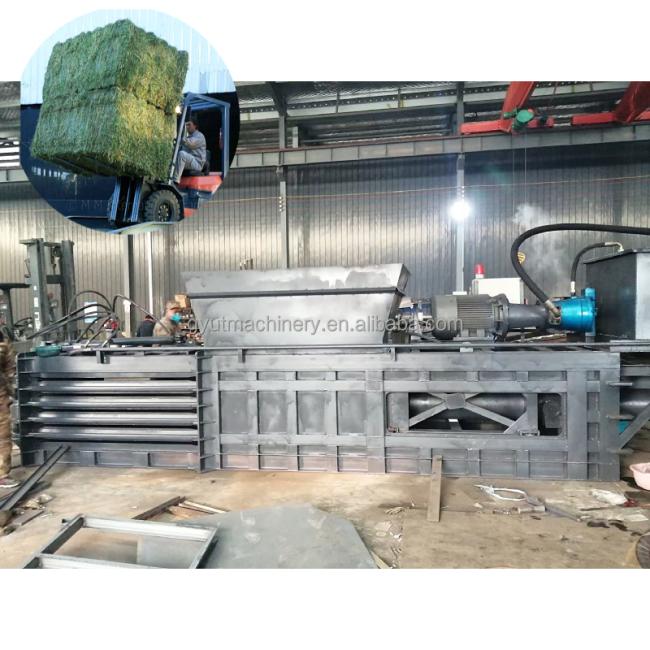

 pictures of  Alfalfa Square baling machines Silage Baler Machine In Pakistan Hydraulic Square Hay Balers 400-500kg

Descriptions of the straw hydraulic baler machine Alfalfa Square baling machines Silage Baler Machine In Pakistan Hydraulic Square Hay Balers 400-500kg:



1. A forage baler is a machine that compresses, bundles, and packages crushed corn stover.


2. The machine has the advantages of compact structure, convenient operation, stable and reliable transmission, and flexibility. Widely used in the green storage and dry storage of animal husbandry forage.


3. It can save storage space and prolong the feeding time of green straw. It greatly reduces the transportation and storage costs of feed and reduces the labor intensity of workers.


4. The equipment belongs to the automatic straw hydraulic baler. The equipment completes the whole straw scrap packing through the work of the stroke switch and the four hydraulic cylinders.









Specifications of straw hydraulic baler machine Alfalfa Square baling machines Silage Baler Machine In Pakistan Hydraulic Square Hay Balers 400-500kg :





small hydraulic automatic  baler horizontal compress / press paper baler machine  Configuration

Model

UT-200

UT-180

UT-160

UT-160

UT-120

UT-120

Nominal Push Force(kn)

2000kn

1800kn

1600kn

1200kn

Motor

30kw+18.5kw Hydraulic pump

22kw+15kw Hydraulic pump

22kw+15kw Hydraulic pump

22kw

Compressed Room Size(L*W)mm

2800*1200

2500*1100

2000*1100

1900*900

The compressed room size can be customized

Bales Size

(L*W*H)mm

1700*1100

*1300

1700*1100

*1300

1500*1100*1300

1700*1100*1300

1500*900*1100

1700*900

*1100

The length can be adjusted

Bales Density

More than 400-450kg/m3

Production Efficiency

8-11 bales/hour

Power system

Hydraulic system with high & low pressure combination

System operating parameters

Mode:YCY14-1BPVR140-17

Rated displacement:230ml/r  ;preset pressure:31.5MPa

System pressure

28MPa

Power

Specifications

3PH  380V

Control System

PLC ,Special detection, automatic control, manual button operation

Hydraulic oil grade

46# Harding-wearing hydraulic oil brand

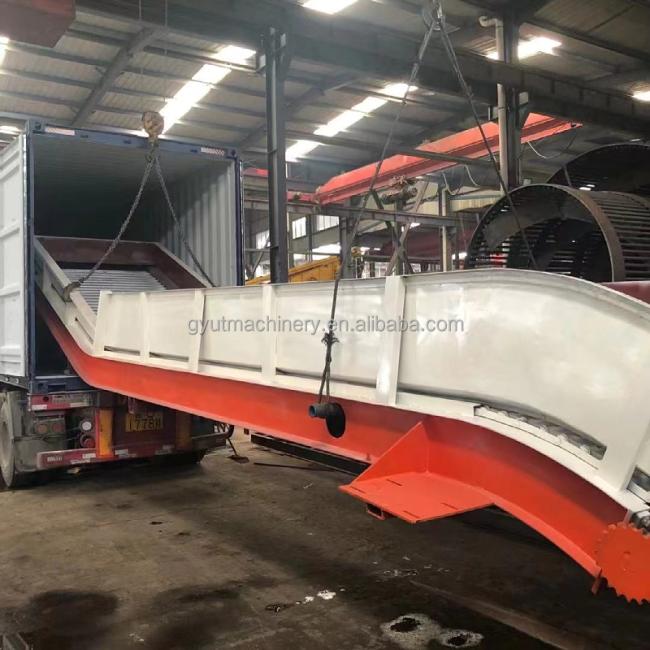

Packaging & Shipping



1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.

2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.

3. Or as per customer's requirements.

Our Services

  Pre-sale:

1. Suggest to client suitable models of our carbonization furnace, according to the raw material, including its type, huimidity, final charcoal capacity requirements.

2. Introduce machine's structure and features in detail, explain the price component;

3. answer client concerned questions.



After-sale:

1. Start production as soon as receiving down payment.

2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.

3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.

4. Documents and certificate available in time.

5. Manual documents available. Engineer can be sent to client site for installation instruction.





Company Information

 Gongyi UT Machinery was in Gongyi City, Zhenzhou, Henan Province.  was founded in 1980s in Gongyi City, Zhengzhou City, Henan Province. It has been a professional crushers, dryers, briquette machines' manufacturer for over 20 years in China Market.
