22kw Gas Heating Wood Sawdust Cyclone Dryer Rotary Drum Sawdust Dryer Spare Parts
Sawdust Cyclone Dryer / Sawdust Dryer Oven/Rotay Drum Sawdust Dryer
Hot Airflow Dryer :
A: Raw materials should be sawdust, suitable for drying the moisture20-50% Final moisture 8-12%
B. Diameter of raw materials: <3mm & < 5mm .
C. Temperature of Hot Air: 180-250 °
D: Working principle: The stoves (boilers) generate hot air, then through the fan to dry the materials
Technical parameters of biomass dryer:
|
Model |
Power(kw) |
Capacity(kg/h) |
Weight(kg) |
Size(m) |
Moisture content |
|
UT-D1 |
4 |
300-400 |
1000 |
1.52*1.22*0.98+2.32*1.42*1.43 |
20-40% to 8-12% |
|
BD-D2 |
5.5 |
400-500 |
1500 |
1.45*1.22*0.98+2.45*1.90*1.15 |
20-40% to 8-12% |
Rotary drum dryer:
a. The dryer is suitable for drying raw material of moisture 20-70%.
b. Wood dryer is suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalks and so on.
c. This wood dryer reduces the moisture to 8-12%.
d. Clients can change the angle of dryers base on the production field.
e. It is only to control the moisture of raw material at a reasonable range that can make good result of biomass briquettes. Or the briquettes will be broken because of too loose or too dry.
Working function of the torary drum dryer:
♣ Fireplace is the place where the firewood, coal, gas or other material is burning for heat, there is a specially designed buffer which can make the hot air through but provent the fire in.
♣ Inlet place is beside the fireplace, thus the material can be dry at a early time.
♣ Roller is running evenly to make the material drying and processing at the same time.
♣ Discharging unit is installed with thermeter to control drying temperature. The temperature change of dryer's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C).
♣ The cyclone is for the discharging, whcih is more convenient and air lock for making the discharging little noise and no waste.
|
Type (mm) |
Inclination (%) |
rotation speed (r/min) |
input temperature (°C) |
motor power (kw) |
Output (t/h) |
|
Φ600×6000 |
3-5 |
3-8 |
≤700 |
3 |
600kg/h |
|
Φ800×8000 |
3-5 |
3-8 |
≤700 |
4 |
800kg/h |
|
Φ1000×10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1000kg/h |
|
Φ1200×12000 |
3-5 |
3-8 |
≤700 |
11 |
1500kg/h |
|
Φ1500×12000 |
3-5 |
2-6 |
≤800 |
15 |
2000kg/h |
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Pre-sale:
1. Suggest to client suitable models of as customer need.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.

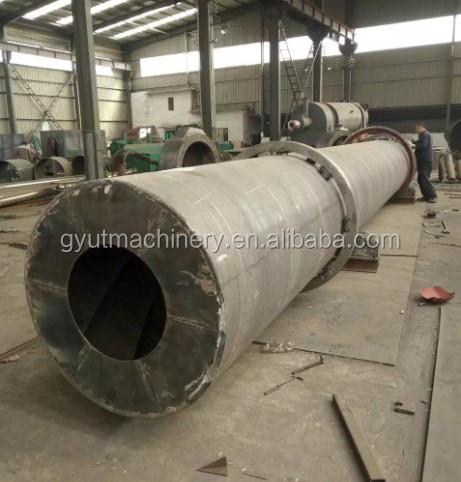

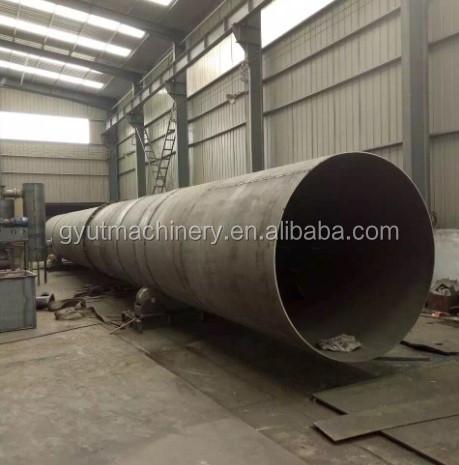

2. Send photos of machine in manufacturing and finished photos to client, for your better
learn about the machine's condition.

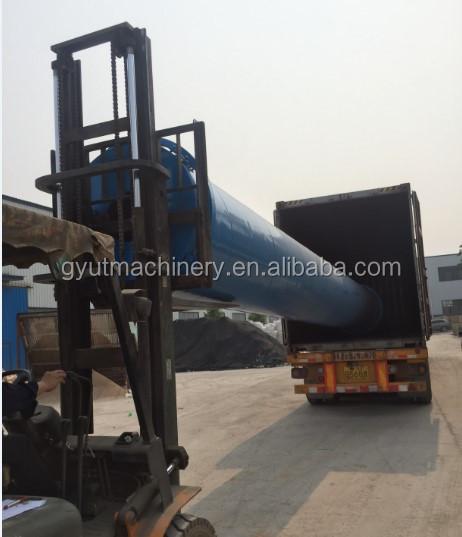

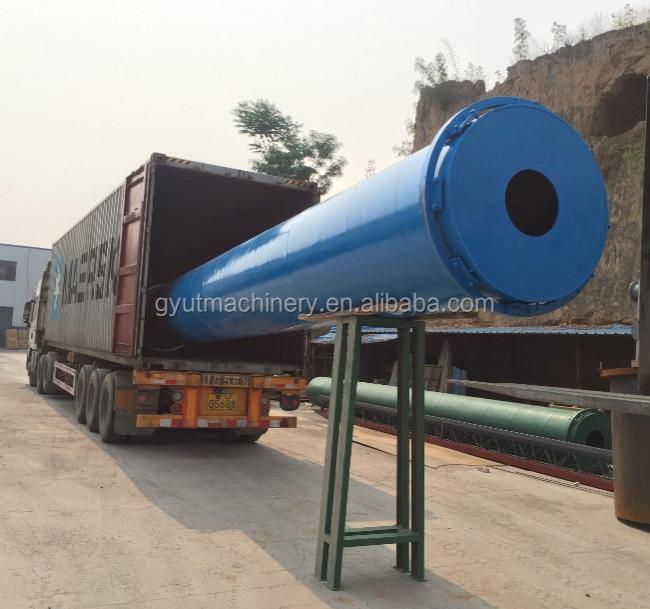

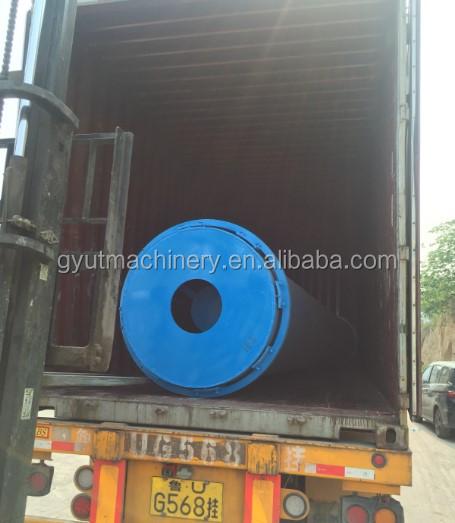

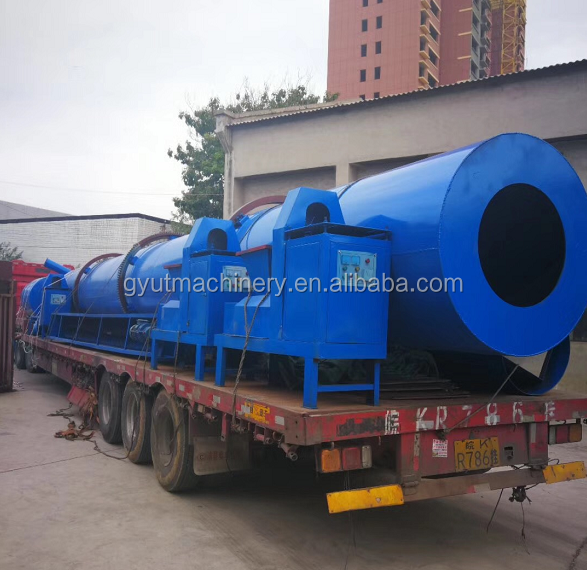

3. Delivery machine in time, taking photos during loading, so you can "remote monitoring"
your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
