4070 KG Wood Logs Wide Used Professional Biomass Drum Wood Chipper
High efficiency wood drum chippers / Wide used professional biomass drum wood chipper Machine
Introduce of Wood drum chipper:
The Drum wood chipper machine is a special device of producing wood chips. It is widely used in stock workshop section of industrial manufacture. For example, the flake board, fibre board, building board, straw power plant.
Raw material of Wood drum chipper:
The raw material can be small diameter wood, timber harvesting, processing residues,such as branches, twigs, planks etc.
It can also be used for cutting non-wood materials,such as sugar cane, reed, bamboo, etc.
Specification of Wood drum chippers:
- Higher capacity and less wear costs.
- Wide range of application suitability.
- Easy to maintain, reduce the downtime and maintenance costs.
- Stable running performance and easy operation.
- Balanced runout rotation ensures best capacity.
Technical Parameters:
|
Model |
UT-BX215 |
UT-BX216 |
UT-BX218 |
UT-BX2113 |
|
Inlet size(H*W) (mm) |
160*400 |
230*500 |
300*680 |
450*700 |
|
Blades number (pcs) |
2 |
2 |
2 |
2 |
|
Knife roller speed (turn/min) |
592 |
590 |
650 |
500 |
|
Max. Diameter (mm) |
160 |
230 |
300 |
450 |
|
Woodchips size (mm) |
30 |
30 |
30 |
38 |
|
Capacity (t/h) |
3-5 |
7-8 |
12-15 |
15-30 |
|
Main motor power (kw) |
45 |
55 |
110 |
200-250 |
|
Feed roller motor power (kw) |
2.2-3 |
3-4 |
4-5 |
7.5*2 |
|
Oil pump motor power (kw) |
1.5*1 |
1.5*1 |
1.5*1 |
3*1 |
|
Weight (kg) |
2990 |
5030 |
7000 |
11840 |
|
Outline Dimension (mm) |
1470×1550×970 |
1800×1900×1210 |
2200×2150×1500 |
3670*2517*2050 |
|
Conveyor motor power (kw) |
3 |
3 |
3 |
3 |

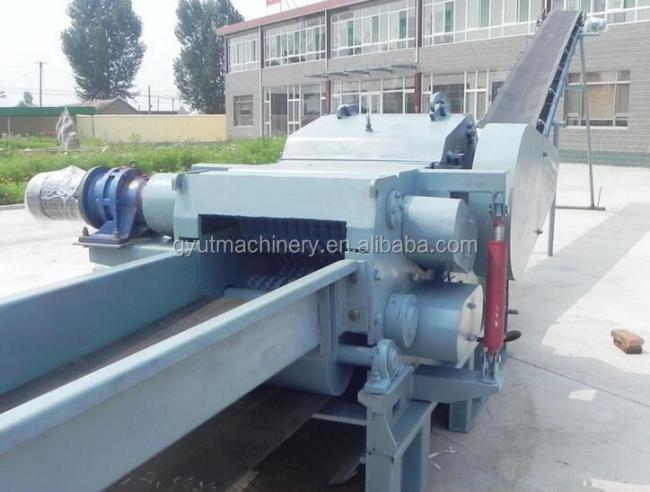

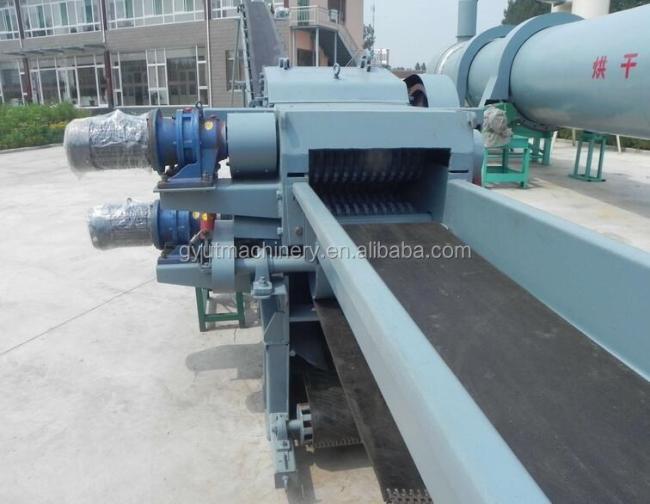

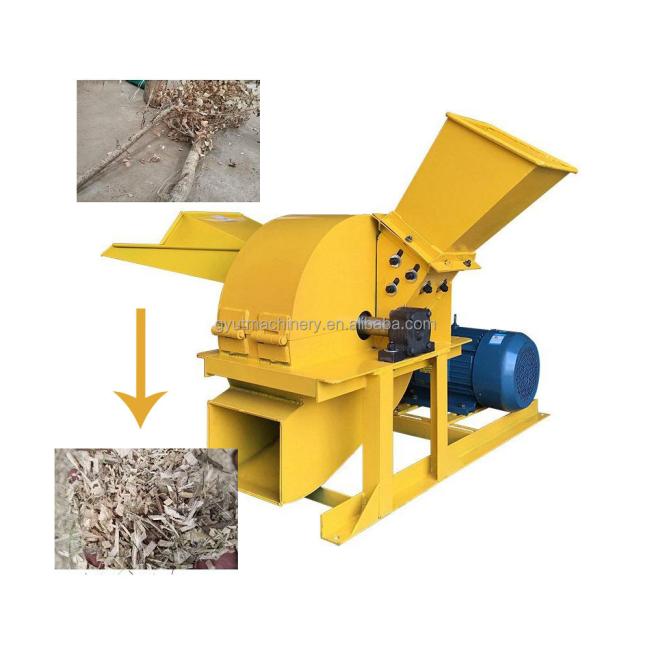

we also supply the other wood crusher machine, kindly check the pictures:
Q1: Can the final size of wood chips be adjusted?
A1: Yes. It can be adjusted according to customer's request.
Q2: Is the wood chipper designed with conveyor?
A2: Yes. This wood chipper is designed with 6m feeding conveyor, 12m discharging conveyor and electric cabinet.
Q3: Can i get some discount if i buy this machine from your company?
A3: Yes. We will give you the most favourable price; if buy more than two sets, the big discount will be given.
Q4: What is your payment term?
A4: 50% TT payment in advance, 50% TT payment before shipment.
Q5: How long is your delivery time?
A5: Within 15 working days after your down payment.
