Wood Logs Carbonization Furnace with 2.4CBM Effective Volume 30-50kg Firewood per Time
Manufacture made wood burning carbonization furnace for wood logs royal oak charcoal
The Introduction of wood carbonization furnace
The hoisting type wood carbonization furnace manufacturerd is mainly used to carbon the briquette made by the briquette making machine or the original wood log, bamboo, coconut shell, rice husk, peanut shell, palm fiber, etc into charcoal.

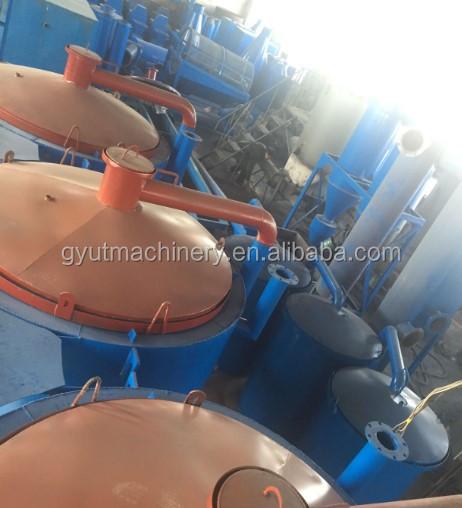

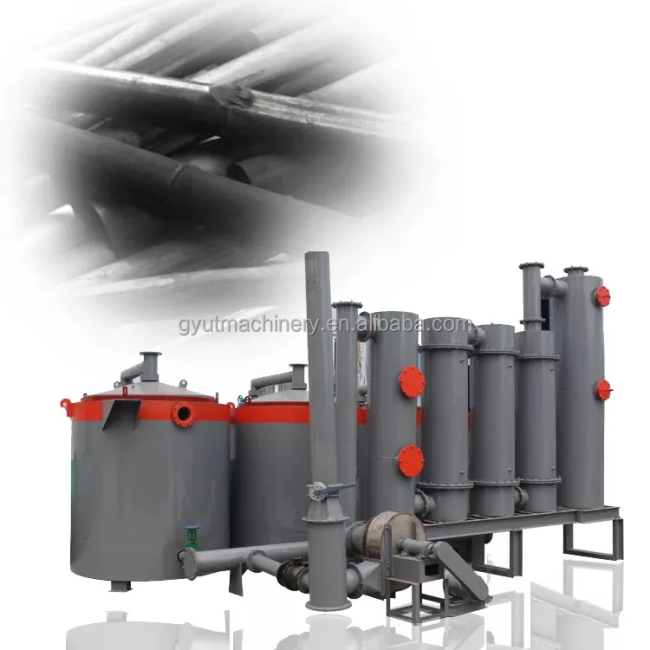

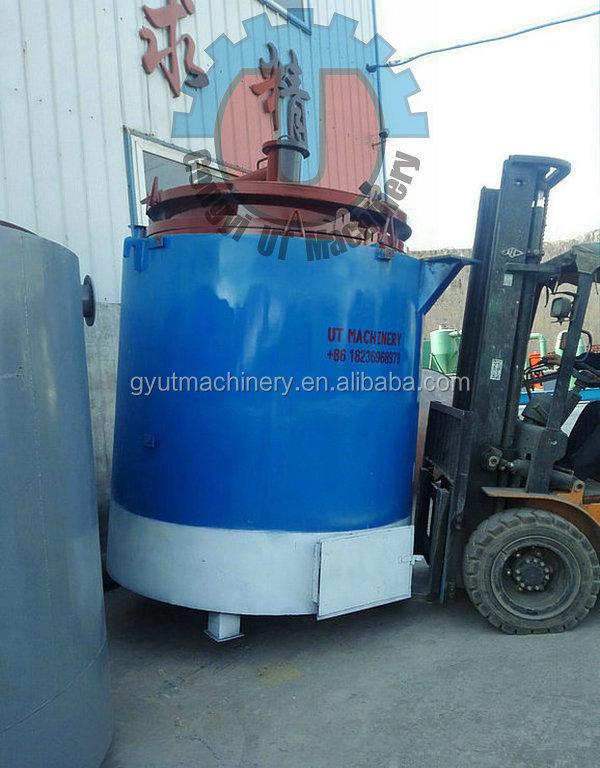

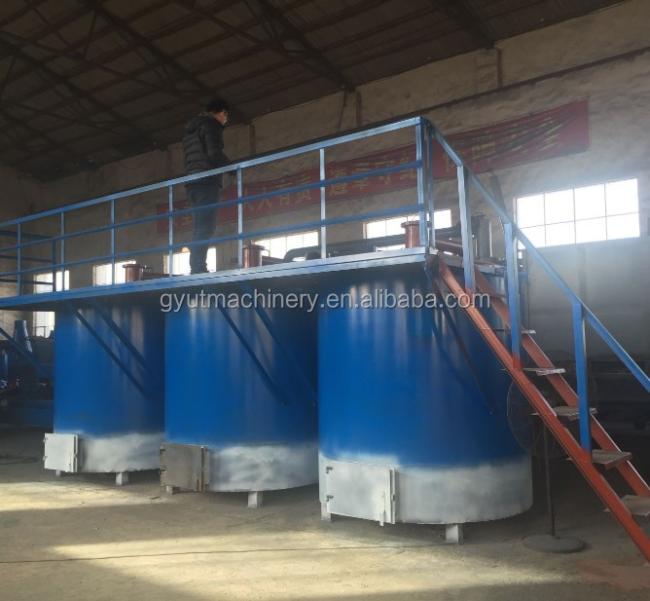

Carbonizing furnace for charcoal is energy-saving type which includes one outer stove, three set of inner stoves, smoke recycling system and the 3 ton hoisting tools.
Structure:
♦ Ourter stove
♦ Inner stove
♦ Cover
♦ Hoist
♦ Purify system
| Model | Capacity | Note | Power | Weight | Temperature |
| UT-C1 | 1-3t/day | 1 outer furnace+3 inner furnace | No | 3.8T | 420-480℃ |
| UT-C2 | 4-6t/day | 2 outer furnace+6 inner furnace | No | 7.6T | 420-480℃ |
| UT-C3 | 7-9t/day | 3 outer furnace+9 inner furnace | 0.75kw | 10.8T | 420-480℃ |
| UT-C4 | 10-12t/day | 4 outer furnace+12 inner furnace | 0.75kw | 14.4T | 420-480℃ |
|
| any need, contact with me freely 0086-18236986068 | ||||
| Raw materials | Wood, coconut shell, wood briquettes, bamboo, almond, palm shell ect. | ||||
| Environment | Totally no pollution, no smoke comes out to the air | ||||
| Energy consumption | 20-30kg firewood or 15kg liquid gas. This type will save 30% cost | ||||
| Final product | For wood, its caloric value is 6000-6500 kcal For wood briquettes, its caloric value is 6500-7500 kcal For nutshell, its caloric value is 7000-8000 kcal | ||||
Procedures on inputting the raw material
1. Open the cover of the furnace
2. Hoist the inner stove out of the furnace and open the cover of inner stove, then make it into a tilt for easy
material loading.
3. When loading1/2 material, put one high temperature resistant steel wire mesh and continuous adding material above the steel wire mesh.
4. After finish inputting the material, close the cover of inner stove and hoist it into the carbonization furnace. Then put some clay or sand among the inside stove and outside stove for insulation.
Advantages of wood carbonization furnace
1. Easy operate and maintain.
2. High carbonization rate, With smoke removal equipment. It is environmental friendly.
3. 8 hours per stove and work continuously.
4. The combustible gas generated during carbonization process will come down along the pipes to the lighting hole to become fuel to heat the stove.
5. With hoisting tools, which can hang the inside stove very easily.

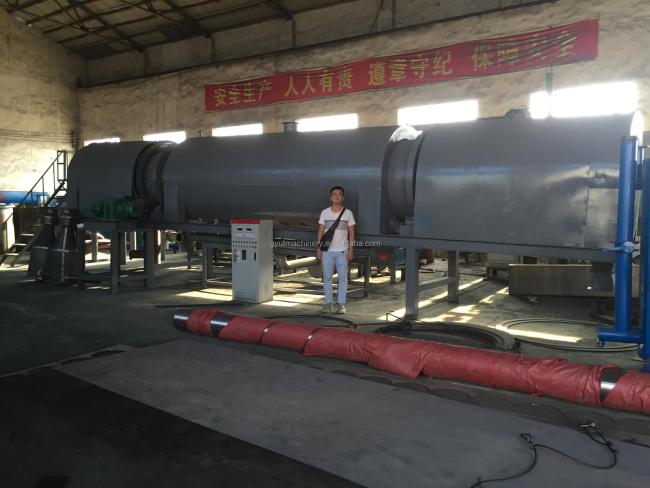

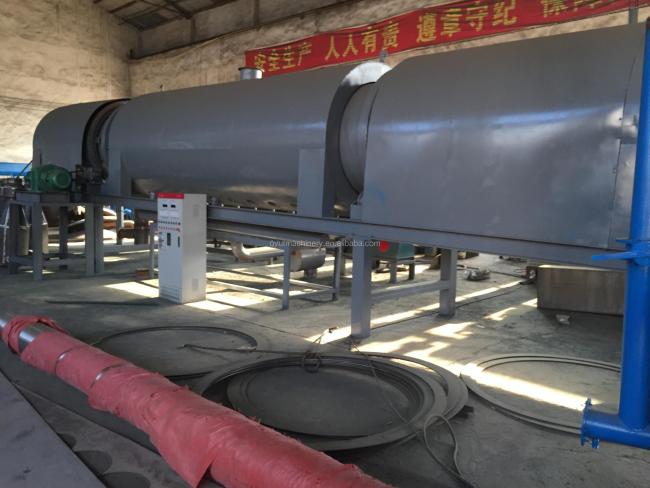

There is also other model furnace for your choose:

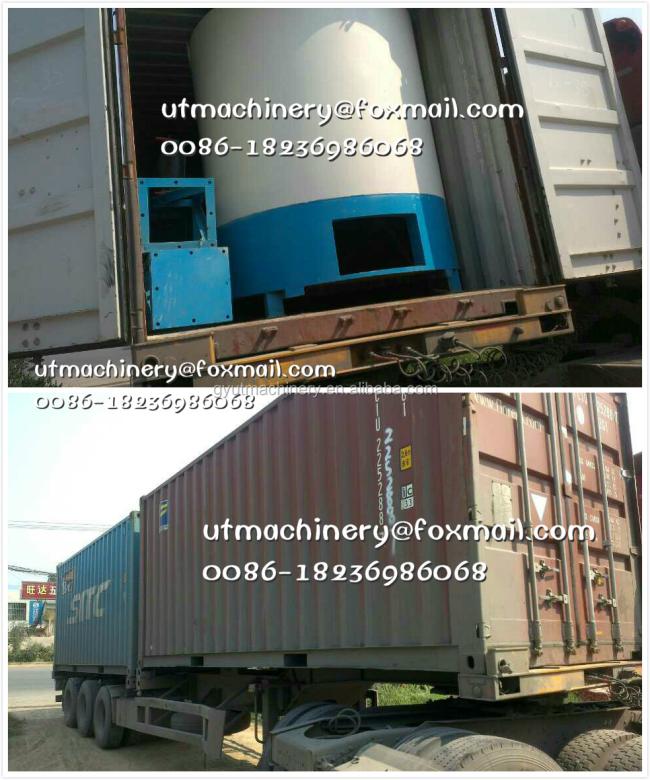

1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Pre-sale:
1. Suggest to client suitable models of our carbonization furnace, according to the raw material, including its type, huimidity, final charcoal capacity requirements.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
