Video Technical Support Pneumatic Seed Seeder Machines for Microgreen Spinach Cabbage
Gongyi UT Machinery
WhatsApp/Viber/Phone: 0086-18236968979
Skype: orion.chai

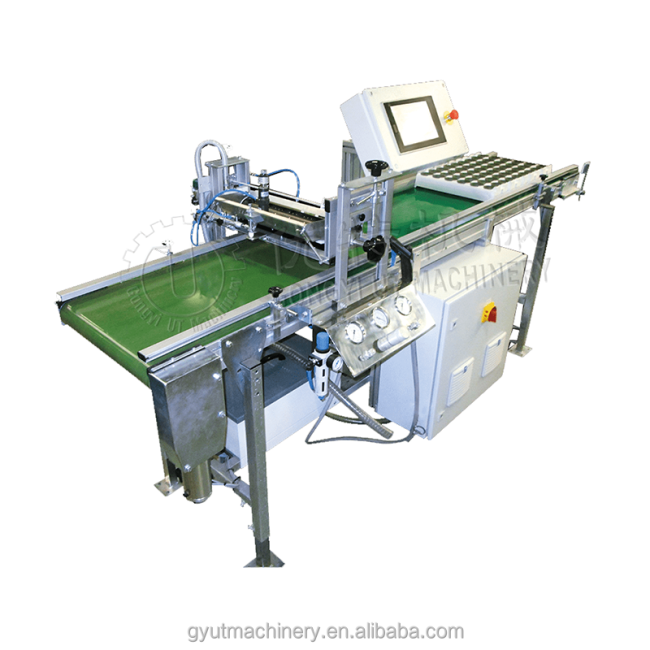

Pneumatic seed seeder machines Microgreen spinach cabbage seed seeder machines
Soil Feeding—Pressing Cell Holes—Seedling—Cover Soil
| Speed | 750 trays/hour |
| Trays Cells | 32-288 cells |
| Trays type | white tray, the black tray |
| Machine Size | 3850*950*1450 |
| Seed Size | 0.2-12 mm |
| Seedling Rate | 98% for round, 95% for others |
| Operater | 2 Persons |
Vegetable and Flower Seedling Machine is the most popular product in related fields with the advantages of high accuracy, fast speed, wide application range, saving labor and improving work efficiency.
2, the machine is suitable for seeds of different shapes from 0.2mm to melon seeds size.
3.The precision for sowing round seeds and other shapes reach to 97% and 95% respectively.
4.When the motor transports the disc hole, the sowing efficiency can reach 900-1200 trays per hour.
5.A"sowing line" is equivalent to the workload of 60 skilled technicians.
6.The line is composed from matrix screening,matrix strirring, matrix loading,hole pressing,seeding,soil covering and watering.
7.Compared with semi-automatic manual,it can increase production effciency by 2-3 times.
Product Parameters
packing dimensions 2100*680*1150 mm
weight 100kg
voltage 220v/1.2kw
qualification rate of sowing ≥95%
Working theory:
Air aspiration type seeder is use the high speed fan to produce negative pressure, and pass on to the vacuum chamber of the seeding machine. When seeding tray returned, it will adsorb the seed and rotate with the seed tray. When the seed rool out the vacuum chamber, it will not bear negative pressure, and fall down to the tray by the self weight.
Specification:
1) This machine is air-aspiration type seeder.
2) Adopts mechanical arm type swing equipment, operation is flexible and convenient.
3) One tray per seeding, high efficiency, the capacity is 220-240 per hour.
4) The seeding accuracy is more than 95%-98%.
5) Have the equipment of seed recovery after seeding.
Shipping and packing:
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
1.WHAT SERVICES DO WE OFFER?
Pre-sale communication → Design proposal, signature confirmation→
Customized production→ Test machine before shipment →Package &
delivery→ Engineer installation→Training operator → Technical support
2.PAYMENT TERMS:
50% of total amount should be paid by T/T as down payment ,the balance (50% of total amount) should be paid before delivery by T/T or irrevocable L/C by payment(at sight).
3.DELIVERY CONDITIONS:
3.1 Delivery condition: FOB Qingdao/ Shanghai port or CIF destination Port.
3.2 Delivery terms: Within 10-14 working days after receipt of advanced payment, the seller should inform the buyer to do inspection,the seller should finish packing of goods and ready for shipment within 15 working days after the seller receipt the full payment.
4.WARRANTY TERMS
5.1 Warranty period: 12 months, starting from the machine receipt in customer's warehouse
5.2 Seller shall grant: services and spare parts, free-of-charge service throughout the entire equipment during warranty period.
5.3 long life service: the seller should provide long life service for the sold goods, the buyer pay for needed spare parts after the 12months warranty terms.
5.INSPECTION
When the machine finished, the seller should inform the buyer to do inspection before shipment, the seller guaranty good performance of all the sold goods.the seller undertake the material cost for the machine inspection in seller's factory. the buyer should come to seller's factory to do the inspection work, or the buyer could entrust any third party to come to seller's factory to do the inspection work.
6.INSTALLATION AND EQUIPMENT COMMISSIONING:
if the buyer requires, the seller should send technician team to buyer's factory for installation and testing the whole line, and the buyer should undertake the whole food/place and round tickets (airplane, food, hotel, and so on), and pay salary to engineer for 100 usd/day/engineer.
