3mm R1.5*3*6*3*50 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
3 days for standard products, 1-2weeks for custom products.
Brand:
BABOS
Product Description
3mm R1.5*3*6*3*50 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron
Product Description:
The 3mm 2-Flute Ball Nose End Mill is designed for precision machining and smooth 3D contouring. The ball nose geometry allows for superior surface finishes, while the 2-flute design ensures efficient chip evacuation and reduced cutting forces.
Features:
- Cutting Diameter: 3mm
- 2-Flute ball nose for excellent 3D profiling and surface finishing
- AITiN (Aluminum Titanium Nitride) coating for outstanding heat resistance and extended tool life
- Made from high-quality carbide substrate for rigidity and durability
- Suitable for high-speed and dry machining
Applications:
Ideal for machining materials such as carbon steel, alloy steel, stainless steel, and cast iron, commonly used in mold & die making, aerospace, and general metalworking applications.

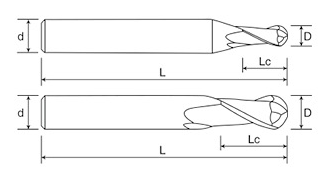

| 2 Flutes Ball Nose End Mill Specifications (Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron) |
|||||
| Sizes | Cut Diameter D |
Cut Length Lc |
Shank Diameter d |
Overall Length L |
Flutes No. |
| R1.5*6*3*50 | 3 | 6 | 3 | 50 | 2 |
| R1.5*6*3*75 | 3 | 6 | 3 | 75 | 2 |
| R1.5*6*3*100 | 3 | 6 | 3 | 100 | 2 |
| R0.5*2*4*50 | 1 | 2 | 4 | 50 | 2 |
| R0.75*3*4*50 | 1.5 | 3 | 4 | 50 | 2 |
| R1*4*4*50 | 2 | 4 | 4 | 50 | 2 |
| R1.25*5*4*50 | 2.5 | 5 | 4 | 50 | 2 |
| R1.5*6*4*50 | 3 | 6 | 4 | 50 | 2 |
| R1.75*7*4*50 | 3.5 | 7 | 4 | 50 | 2 |
| R2*8*4*50 | 4 | 8 | 4 | 50 | 2 |
| R2*8*4*75 | 4 | 8 | 4 | 75 | 2 |
| R2*8*4*100 | 4 | 8 | 4 | 100 | 2 |
| R0.5*2*4*75 | 1 | 2 | 4 | 75 | 2 |
| R0.75*3*4*75 | 1.5 | 3 | 4 | 75 | 2 |
| R1*4*4*75 | 2 | 4 | 4 | 75 | 2 |
| R1.25*5*4*75 | 2.5 | 5 | 4 | 75 | 2 |
| R1.5*6*4*75 | 3 | 6 | 4 | 75 | 2 |
| R2.5*10*5*50 | 5 | 10 | 5 | 50 | 2 |
| R2.5*10*5*75 | 5 | 10 | 5 | 75 | 2 |
| R2.5*10*5*100 | 5 | 10 | 5 | 100 | 2 |
| R0.5*2*6*50 | 1 | 2 | 6 | 50 | 2 |
| R0.75*3*6*50 | 1.5 | 3 | 6 | 50 | 2 |
| R1*4*6*50 | 2 | 4 | 6 | 50 | 2 |
| R1.25*5*6*50 | 2.5 | 5 | 6 | 50 | 2 |
| R1.5*6*6*50 | 3 | 6 | 6 | 50 | 2 |
| R2*8*6*50 | 4 | 8 | 6 | 50 | 2 |
| R2.5*10*6*50 | 5 | 10 | 6 | 50 | 2 |
| R3*12*6*50 | 6 | 12 | 6 | 50 | 2 |
| R3*12*6*75 | 6 | 12 | 6 | 75 | 2 |
| R3*12*6*100 | 6 | 12 | 6 | 100 | 2 |
| R3*12*6*150 | 6 | 12 | 6 | 150 | 2 |
| R3.5*14*8*60 | 7 | 14 | 8 | 60 | 2 |
| R4*16*8*60 | 8 | 16 | 8 | 60 | 2 |
| R4*16*8*75 | 8 | 16 | 8 | 75 | 2 |
| R4*16*8*100 | 8 | 16 | 8 | 100 | 2 |
| R4*16*8*150 | 8 | 16 | 8 | 150 | 2 |
| R4.5*18*10*75 | 9 | 18 | 10 | 75 | 2 |
| R5*20*10*75 | 10 | 20 | 10 | 75 | 2 |
| R5*20*10*100 | 10 | 20 | 10 | 100 | 2 |
| R5*20*10*150 | 10 | 20 | 10 | 150 | 2 |
| R5.5*22*12*75 | 11 | 22 | 12 | 75 | 2 |
| R6*24*12*75 | 12 | 24 | 12 | 75 | 2 |
| R6*24*12*100 | 12 | 24 | 12 | 100 | 2 |
| R6*24*12*150 | 12 | 24 | 12 | 150 | 2 |
| R7*28*14*80 | 14 | 28 | 14 | 80 | 2 |
| R7*28*14*100 | 14 | 28 | 14 | 100 | 2 |
| R7*28*14*150 | 14 | 28 | 14 | 150 | 2 |
| R8*32*16*100 | 16 | 32 | 16 | 100 | 2 |
| R8*32*16*150 | 16 | 32 | 16 | 150 | 2 |
| R9*36*18*100 | 18 | 36 | 18 | 100 | 2 |
| R9*36*18*150 | 18 | 36 | 18 | 150 | 2 |
| R10*40*20*100 | 20 | 40 | 20 | 100 | 2 |
| R10*40*20*150 | 20 | 40 | 20 | 150 | 2 |
