10*25*10*75*4T 4flutes End Mill AlTiN Coating For Alloy Steel, Hardened Steel,Gray Cast Iron, Ductile Cast Iron
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
3 days for standard products, 1-2weeks for custom products.
Brand:
BABOS
Product Description
10*25*10*75*4T 4flutes End Mill AlTiN Coating For Alloy Steel, Hardened Steel,Gray Cast Iron, Ductile Cast Iron
Product Description:
This 4-flute solid carbide end mill is designed for high-efficiency machining of tough materials including alloy steel, hardened steel, gray cast iron, and ductile cast iron. With a robust geometry and advanced AlTiN (Aluminum Titanium Nitride) coating, it offers exceptional heat resistance, wear protection, and extended tool life.
Key Features:
- Unequal spiral design, good seismic performance, suitable for dynamic milling
- Adopting nano composite coating for greater wear resistance
Product Specifications:
| Tool Type | Solid Carbide End Mill |
| Material |
Cobalt content 10%, grain size 0.8 μ m, HRA91.5-92
|
| Coating | AlTiN |
| Number of Flutes | 4 |
| Cutting Diameter (D) | 10 mm |
| Flute Length (L1) | 25mm |
| Shank Diameter | 10 mm |
| Overall Length (L) | 75 mm |
| Helix Angle | 35°-37° |
| Application | Carbon steel alloy steel (<35HRC),Alloy Steel (35-48HRC),Stainless Steels,Gray Cast iron, Ductile Cast Iron (<32HRC) |
| Cooling Method | Air Cooling |

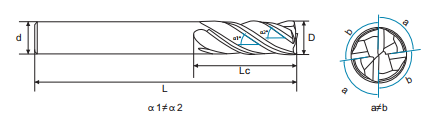

Model |
Specifications (OEM and customization is acceptable.) |
Flutes |
Spiral Angle |
Groove Profile |
Coating |
|||
| Cut Dia D |
Cut Length Lc |
Shank Dia d |
Overall Length L | |||||
| 3*8*3*50*4T | 3 | 8 | 3 | 50 | 4 | 35°-37° | U slot | AlTiN |
| 3*12*3*50*4T | 3 | 12 | 3 | 50 | 4 | 35°-37° | U slot | AlTiN |
| 3*15*3*50*4T | 3 | 15 | 3 | 50 | 4 | 35°-37° | U slot | AlTiN |
| 4*10*4*50*4T | 4 | 10 | 4 | 50 | 4 | 35°-37° | U slot | AlTiN |
| 4*16*4*50*4T | 4 | 16 | 4 | 50 | 4 | 35°-37° | U slot | AlTiN |
| 4*20*4*75*4T | 4 | 20 | 4 | 75 | 4 | 35°-37° | U slot | AlTiN |
| 6*15*6*50*4T | 6 | 15 | 6 | 50 | 4 | 35°-37° | U slot | AlTiN |
| 6*24*6*75*4T | 6 | 24 | 6 | 75 | 4 | 35°-37° | U slot | AlTiN |
| 6*30*6*75*4T | 6 | 30 | 6 | 75 | 4 | 35°-37° | U slot | AlTiN |
| 8*20*8*60*4T | 8 | 20 | 8 | 60 | 4 | 35°-37° | U slot | AlTiN |
| 8*32*8*75*4T | 8 | 32 | 8 | 75 | 4 | 35°-37° | U slot | AlTiN |
| 8*40*8*100*4T | 8 | 40 | 8 | 100 | 4 | 35°-37° | U slot | AlTiN |
| 10*25*10*75*4T | 10 | 25 | 10 | 75 | 4 | 35°-37° | U slot | AlTiN |
| 10*40*10*100*4T | 10 | 40 | 10 | 100 | 4 | 35°-37° | U slot | AlTiN |
| 10*50*10*100*4T | 10 | 50 | 10 | 100 | 4 | 35°-37° | U slot | AlTiN |
| 12*30*12*75*4T | 12 | 32 | 12 | 75 | 4 | 35°-37° | U slot | AlTiN |
| 12*48*12*100*4T | 12 | 48 | 12 | 100 | 4 | 35°-37° | U slot | AlTiN |
| 12*60*12*100*4T | 12 | 60 | 12 | 100 | 4 | 35°-37° | U slot | AlTiN |
| 14*45*14*100*4T | 14 | 45 | 14 | 100 | 4 | 35°-37° | U slot | AlTiN |
| 14*70*14*150*4T | 14 | 70 | 14 | 150 | 4 | 35°-37° | U slot | AlTiN |
| 16*45*16*100*4T | 16 | 45 | 16 | 100 | 4 | 35°-37° | U slot | AlTiN |
| 16*64*16*150*4T | 16 | 64 | 16 | 150 | 4 | 35°-37° | U slot | AlTiN |
| 16*80*16*150*4T | 16 | 80 | 16 | 150 | 4 | 35°-37° | U slot | AlTiN |
| 18*45*18*100*4T | 18 | 45 | 18 | 100 | 4 | 35°-37° | U slot | AlTiN |
| 18*90*18*150*4T | 18 | 90 | 18 | 150 | 4 | 35°-37° | U slot | AlTiN |
| 20*45*20*100*4T | 20 | 45 | 20 | 100 | 4 | 35°-37° | U slot | AlTiN |
| 20*80*20*150*4T | 20 | 80 | 20 | 150 | 4 | 35°-37° | U slot | AlTiN |
| 20*100*20*200*4T | 20 | 100 | 20 | 200 | 4 | 35°-37° | U slot | AlTiN |
Workpiece Material and processing parameters
| Workpiece Material | ap | ae | vc m/min |
fz mm/z |
|||||||||||||||||||||||||||||||||||||||
|
Carbon steel alloy steel (<35HRC)
|
ap≤1.5D | ap≤0.15D | 180 | 0.0085D | |||||||||||||||||||||||||||||||||||||||
| Alloy Steel (35-48HRC) | ap≤1D | ae≤0.12D | 140 | 0.0075D | |||||||||||||||||||||||||||||||||||||||
| Stainless Steels | ap≤1.5D | ae≤0.15D | 140 | 0.0075D | |||||||||||||||||||||||||||||||||||||||
| Gray Cast iron, Ductile Cast Iron (<32HRC) | ap≤1.5D | ae≤0.15D | 160 | 0.0075D | |||||||||||||||||||||||||||||||||||||||
