M0820-150mm Extended 6mm Shank Tungsten Carbide Burrs Standard Double Cut Carbide Burrs
M0820-150mm Extended 6mm Shank Tungsten Carbide Burrs Standard Double Cut Carbide Burrs
Description:
The M0820-150mm Extended 6mm Shank Tungsten Carbide Burr with Standard Double Cut combines the extreme durability and cutting power of tungsten carbide with a versatile conical shape and extended reach, making it an indispensable tool for precision work and material removal in challenging applications.
Specifications:
Brand: BABOS
Cutting Head Material: Tungsten Carbide
Shank Material: 40Cr Steel
Cut Dia.: 8mm
Cut Length: 20mm
Shank Diameter: 6mm
Shank Length: 150mm
Cut Type: STANDARD CUT(M), STANDARD DOUBLE CUT (X), WIDE CUT (C), FINE CUT (F), ALUMINUM CUT (W), DIAMOND CUT(D)

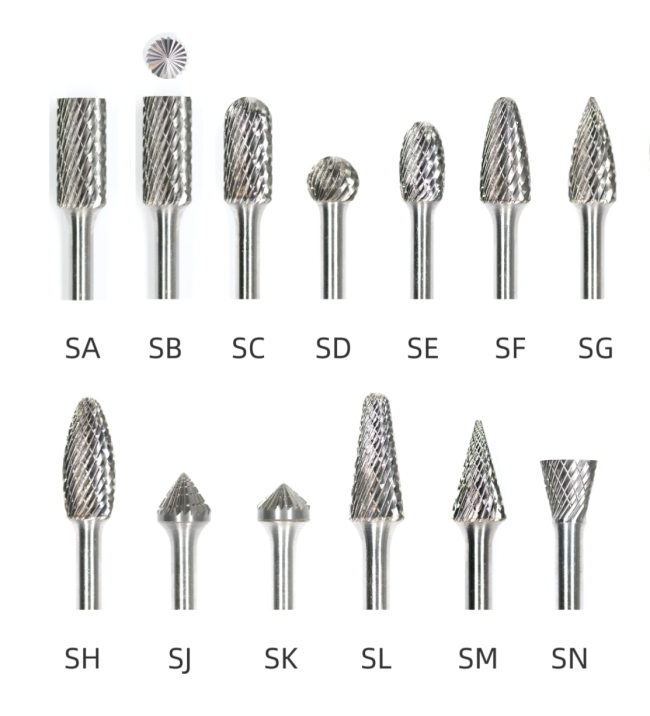

Available Shapes(A-N)
SA: Cylindrical (Without End Cut)
SB: Cylindrical With End Cut
SC: Cylindrical Ball Nose(Cylindrical Radius End)
SD: Ball Shape
SE: Oval Shape
SF: Tree RadiusShape
SG: Tree Point Shape
SH: Flame Shape
SJ: 60-degree countersink
SK: 90-degree countersink
SL: Ball Nosed Cone Shape(Taper Radius End)
SM: Cone Shape
SN: Inverted Cone Shape
Customization:
- Please send us the drawings or other important information if you need non-standard carbide burrs.
- Please contact us if you need more information about 150mm extended shank burrs with any shape.
- OEM is avaliable.
- Free sample is avaliable.

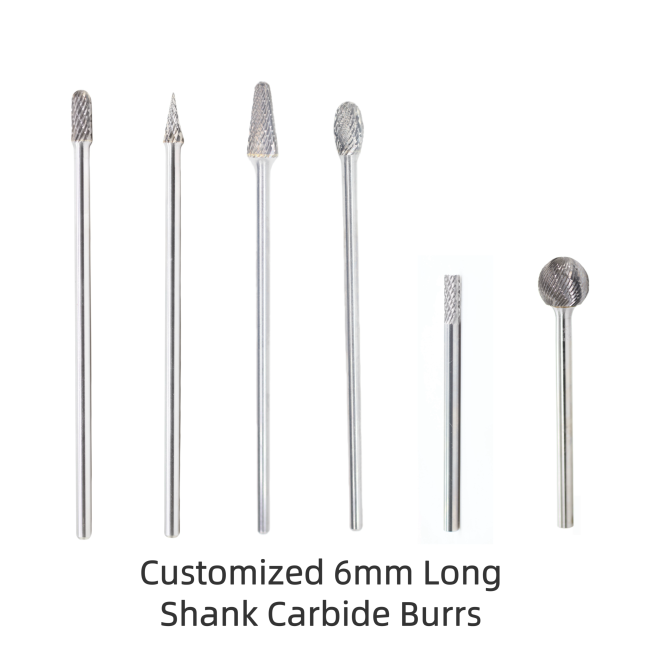

- We also offer other long shank burrs in metric standard, such as: 75mm, 100mm,150mm,300mm,450mm
Cut Selection Guide:
| STANDARD CUT(M) |
STANDARD DOUBLE CUT (X) |
WIDE CUT (C) |
FINE CUT (F) |
ALUMINUM CUT(W) |
DIAMOND CUT(D) |
 |
 |
 |
 |
 |
 |
