9.5mm Dia Customized Cylindrical Radius Carbide Burrs With 6mm Shank Standard Double Cut
Price:
Negotiable
MOQ:
20pcs
Delivery Time:
3 days for standard products, 1-2weeks for custom products.
Brand:
BABOS
Product Description

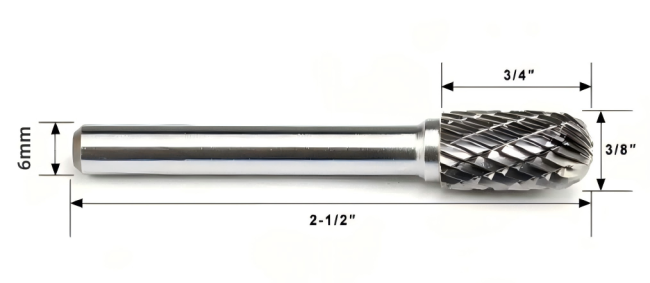

Customized SC Cylindrical Radius Carbide Burrs 9.5mm*19mm With 6mm Shank Standard Double Cut
Description:
This is a custom-made product. It is a rotary file with the head sized to ANSI standards and the shank in metric dimensions, tailored to customer requirements.
Brand: BABOS
Material: Tungsten Carbide
Cut Diameter:3/8" (9.5mm)
Length of Flute: 3/4" (19mm)
Shank Diameter: 6mm
OAL:64mm
Cut Type: Standard Double Cut
Other Available Sizes Related to Type C Carbide Burrs Both in Metric and Inch Standard:
| Metric Standard | |||||
| Shank Dia. (mm) | Cutter Dia. (mm) | Length of Cut (mm) | Overall Length (mm) | Tool No. | The Combination of Head and Shank |
| d2 | d1 | l2 | l1 | ||
| 3 | 2 | 11 | 38 | C0211 | Solid |
| 2.5 | 11 | 38 | C2511 | Solid | |
| 3 | 13 | 38 | C0313 | Solid | |
| 5 | 13 | 38 | C0513 | Brazed | |
| 6 | 13 | 45 | C0613 | Brazed | |
| 6 | 6 | 16 | 63 | C0616 | Brazed |
| 6 | 25 | 65 | C0625 | Solid | |
| 8 | 20 | 65 | C0820 | Brazed | |
| 10 | 20 | 65 | C1020 | Brazed | |
| 11 | 25 | 70 | C1125 | Brazed | |
| 12 | 25 | 70 | C1225 | Brazed | |
| 16 | 25 | 70 | C1625 | Brazed | |
| 19 | 25 | 70 | C1925 | Brazed | |
| 25 | 25 | 70 | C2525 | Brazed | |
| 8 | 12 | 25 | 70 | C1225 | Brazed |
| 16 | 25 | 70 | C1625 | Brazed | |
| 19 | 25 | 70 | C1925 | Brazed | |
| 25 | 25 | 70 | C2525 | Brazed | |
| Inch Standard | |||||
| 1/8'' | 1/8" | 1/2" | 1-1/2" | SC-42 | Solid |
| 1/4" | 1/2" | 2" | SC-51 | Brazed | |
| 1/4" | 3/16" | 9/32" | 2'' | SC-14 | Solid |
| 1/4" | 1" | 2'' | SC-1L | Solid | |
| 5/16" | 3/4'' | 2-1/2" | SC-2 | Brazed | |
| 3/8" | 3/4'' | 2-1/2" | SC-3 | Brazed | |
| 7/16" | 1" | 2-3/4" | SC-4 | Brazed | |
| 1/2" | 1" | 2-3/4" | SC-5 | Brazed | |
| 5/8" | 1" | 2-3/4" | SC-6 | Brazed | |
| 3/4" | 1" | 2-3/4" | SC-7 | Brazed | |
| 7/8" | 1" | 2-3/4" | SC-8 | Brazed | |
| 3/8'' | 1" | 1" | 2-3/4" | SC-9 | Brazed |
Customization:
- Please send us the drawings or other important information if you need non-standard carbide burrs.
- Please contact us if you need more information about type C burrs or other shapes of burrs.
- OEM is avaliable.
Cut Selection Guide:
| STANDARD CUT(M) |
STANDARD DOUBLE CUT (X) |
WIDE CUT (C) |
FINE CUT (F) |
ALUMINUM CUT(W) |
DIAMOND CUT(D) |
 |
 |
 |
 |
 |
 |
