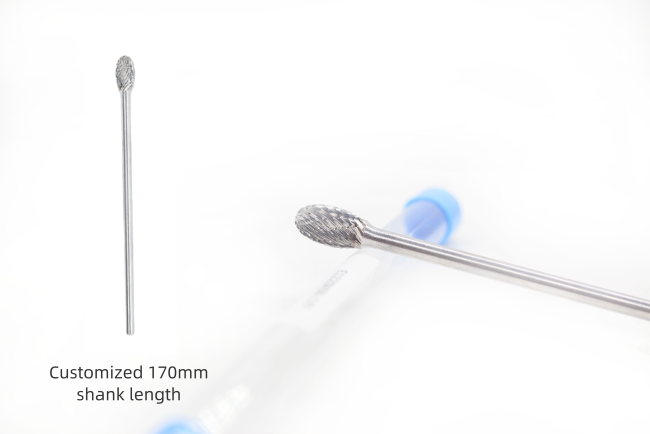

Customized E-Oval Shape Tungsten Crbide Burrs 12*20 Standard Double Cut 6mm Shank With 170 Overall Length

This customized E-oval shape tungsten carbide burr features a 1/2"(12.7mm) diameter and 20mm cutting length, engineered for efficient contouring, surface smoothing, and deburring across a wide range of metals. The standard double-cut tooth geometry delivers fast stock removal while minimizing chatter, ensuring excellent control and a fine surface finish. Built with a durable 6mm shank and an extended 170mm shank length, it provides superior reach for deep or narrow areas where standard burrs cannot access. Ideal for metal fabrication, mold work, weld removal, and precision finishing applications.

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:12mm

Length of Flute: 20mm

Shank Diameter: 6mm

Shank Length: 170mm

OAL: 190mm

Cut Type: Standard Double Cut

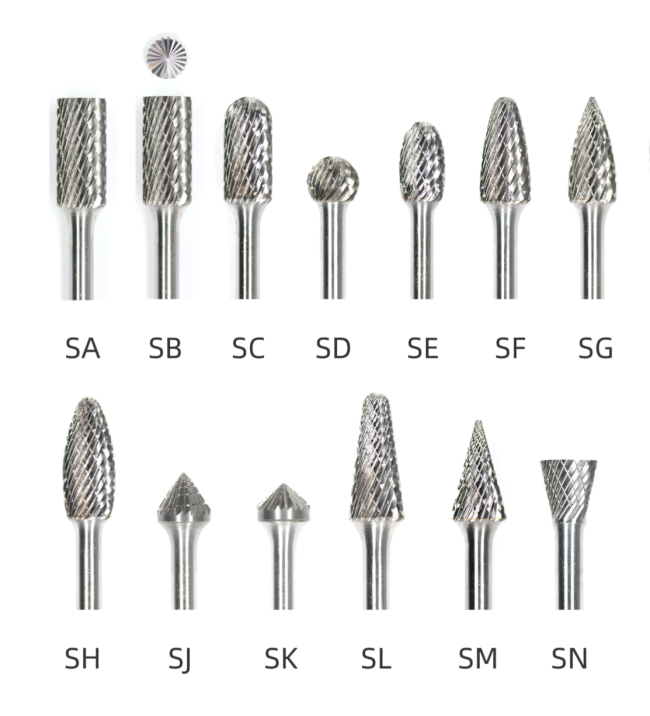

Available Shapes(A-N)

SA: Cylindrical (Without End Cut)
SB: Cylindrical With End Cut
SC: Cylindrical Ball Nose(Cylindrical Radius End)
SD: Ball Shape
SE: Oval Shape
SF: Tree RadiusShape
SG: Tree Point Shape
SH: Flame Shape
SJ: 60-degree countersink
SK: 90-degree countersink
SL: Ball Nosed Cone Shape(Taper Radius End)
SM: Cone Shape
SN: Inverted Cone Shape

Other Available Standard Sizes Related to Type E-Oval Shape Carbide Burrs Both in Metric and Inch Standard:

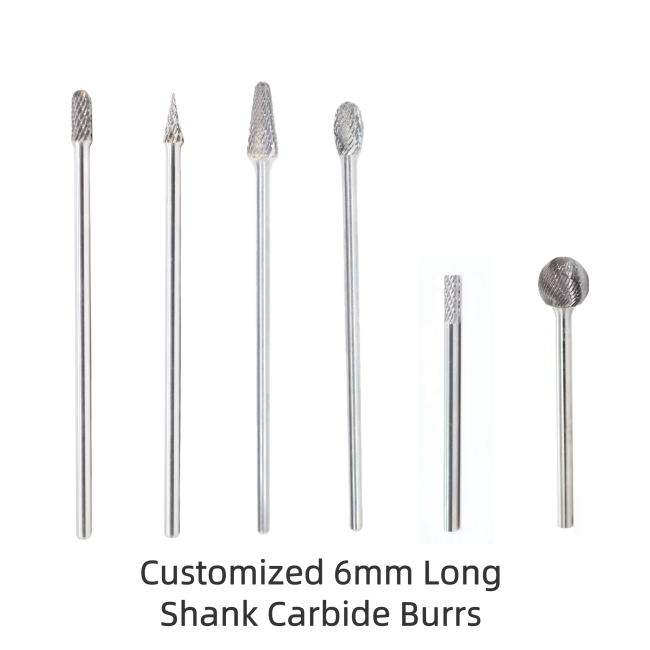

Customization:

1. Please send us the drawings or other important information if you need non-standard carbide burrs.
2. Please contact us if you need more information about type E burrs or other shapes of burrs.
3. OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)	STANDARD DOUBLE CUT (X)	WIDE CUT (C)	FINE CUT (F)	ALUMINUM CUT(W)	DIAMOND CUT(D)
