2S Gear Oil Pump Mud Pump Accessories 512601010031000000 2S For Drilling Rigs

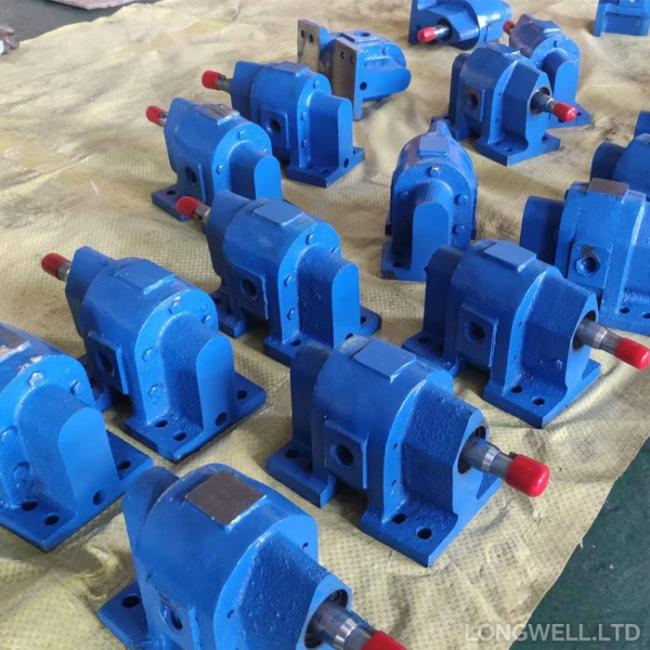

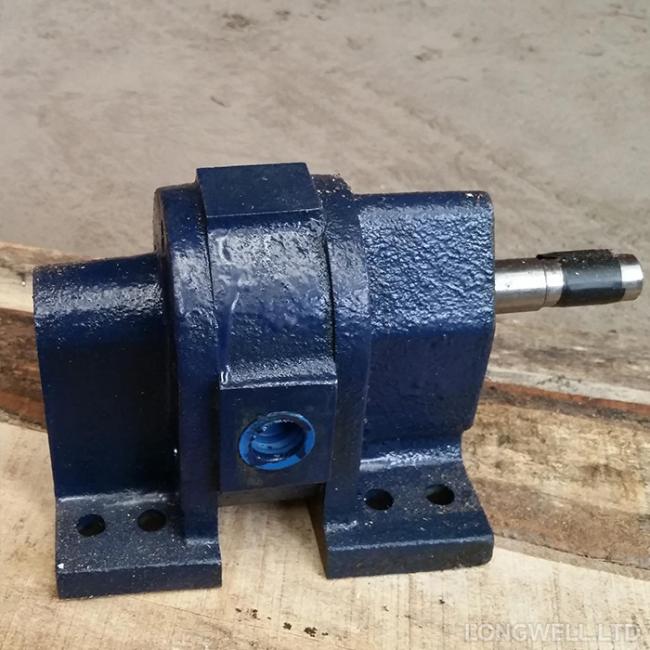

What is 2S gear oil pump?
2S gear oil pump is the main part of power end lubrication system in mud pump of oil drilling and production equipment, which is suitable for F series and 3NB series mud pump.
How does 2S gear oil pump work?
2S gear oil pump has two rotary gears, one is a passive, are installed in the pump body, the two teeth mutual adhesion, and according to the working space of the pump body is divided into two independent space, space near the inlet of oil absorption, oil in and out of the mouth for oil discharge space, when the main gear rotary.
At this point, the passive gear followed, such making that the oil absorption of the pump body space formation of partial vacuum, due to the atmospheric pressure will oil pool of oil through the oil suction piping between the pressure into the oil absorption, full of the tooth valley, along with the rotary gear, through to the discharge of oil to the outer space and transmitted to the row of tank.
Mud Pump Parts Model We Can Do
| BOMCO | F-500 | F-800/1000 | F-1300/1600 | F-1600HL |
| Hong Hua | HHF-500 | HHF-800 | HHF-1300/1600 | 3NB-1600F |
| HRSB | RSF-1300/1600 | RSF-1600 | ||
| RG | RGF-800/1000 | RGF-1300/1600 | ||
| LS | 3NB1000C | 3NB1300C | 3NB1600F | 3NB1600L |
| EMSCO | FB-1300 | FB-1600 | FD-1000 | FC-1600 |
| Gardner Denver | PAH | P7 | P8/9 | P10/11 |
| National | 10-P-130 | 12-P-160 | 14-P-200 | |
| Oilwell | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT |
| TSC | WF-800/1000 | WF-1300/1600 | ||
| IDECO | T-800/1000 | T-1300/1600 | ||
| RUSSIA | UNBT-1180L | UNBT-950A | UNB-600 | 8T650 |
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T is the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details. Then we issue you an PI for your confirmation. You will be requested to do pr-e paid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-25 days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4) How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5) How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
