BOMCO Mud Pump Valve Seat AH33001-05.17A.06 AH0000020101 Pump Valve Assembly

What is the type of BOMCO Mud Pump Valve Seat?

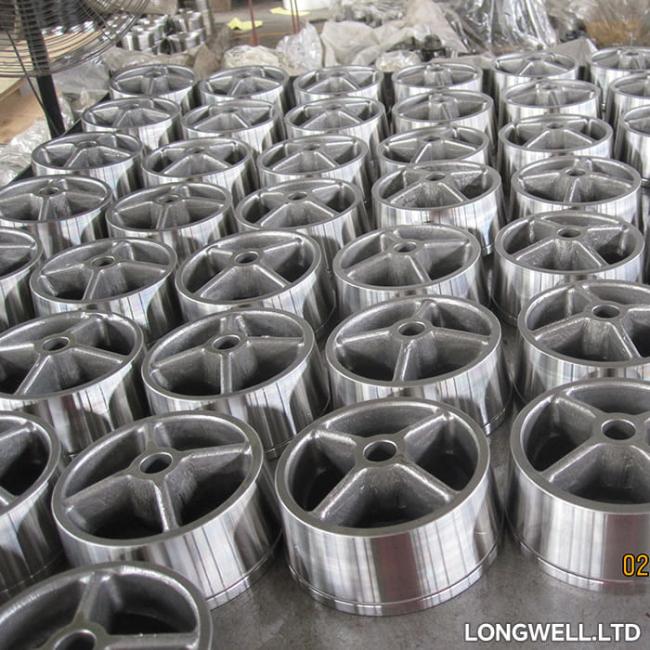

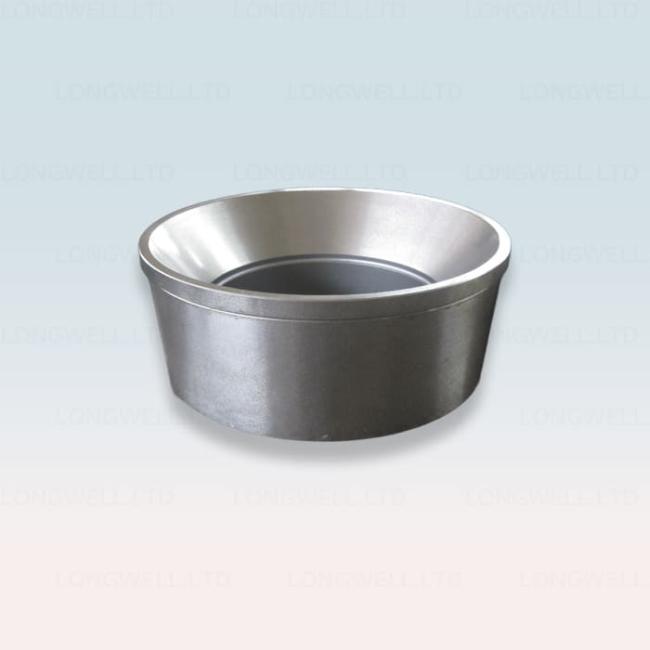

According to the inner hole form of the valve seat, the valve assembly can be divided into a through hole valve, a three-rib valve and a four-rib valve.

The part numbers of Mud Pump 7# Full Open Valve Assembly are AH0000020100 AH33001-05.17A.00 AH0000020300 GH3161-0511-00 AH36001-05.12A.00

What is the surface hardness of BOMCO Mud Pump Valve Seat?

The valve assembly the surface hardness is greater than HRC60, and the conical surface is ground to ensure high roughness requirements and geometric dimensions. is the key component of the hydraulic end of the mud pump.

What is the BOMCO Mud Pump Valve Seat consists?

The valve assembly consists of valve body, valve rubber, valve nut, guide frame, gland, clamp spring, steel ball, etc. (i.e. valve assembly with valve seat removed).

The valve body and the valve seat of the valve assembly are carburized and quenched with high-quality bonded steel 20 Customer-relationship Management NTI,

More part numbers for other valves:

AH36001-05.12A.00
AH36001-05.12.00
AH0000020400
AH35001-05.14.00
AH0000020600
AH0000020500
RGF1000-05.17.00
RS11309.05.10.00
