Ceramic Liner / Ceramic Bushing Part No.: RS11306A.05.18.00 For F-1000 drilling pump
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
LONGWELL
Product Description

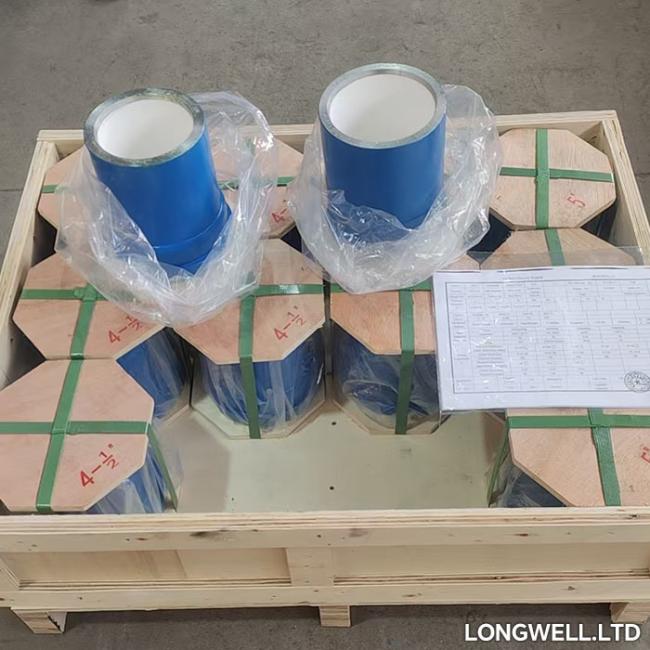

Ceramic Liner / Ceramic Bushing
Part No.: RS11306A.05.18.00
For F-1000 drilling pump
Technical specifications:
Inner diameter: Ø 6 3/4" (171.45 mm)
Outer diameter: Ø 196 mm
Flange diameter: Ø 222 mm
Height: 365 mm
Technical requirements:
Ceramic inner working surface
Minimum service life: 3000 operating hours in polymer medium
Working pressure: 25 MPa
Ceramic material composition:
Aluminum oxide (Al₂O₃)
Zirconium dioxide (ZrO₂)
Yttrium oxide (Y₂O₃)
Mechanical properties:
Flexural strength: approx. 560 MPa
Hardness: 91 HRA (Rockwell A)
Wear resistance: 0.28 cm³
Warranty requirement:
Minimum 3000 operating hours after installation in polymer medium
