Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site
Price:
Negotiable
MOQ:
1set
Delivery Time:
20days
Brand:
SUNTECHMACH
Product Description

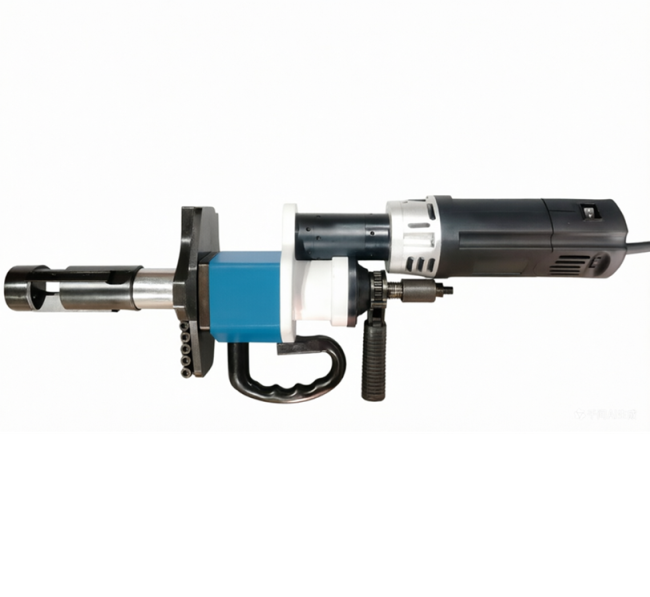

Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site
This machine can face and bevel all type of pipe ends, pressure vessel and flanges. it adopts“Y” design to realize the minimal radial working space. With the light weight.it is portable and can be used on-site working situation. It is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipe lines.
Feature
- ID mounted, adopt Y structure beveling shape: U, Single-V, double-V, J beveling
- Processing for repairing inner wall and deep hole.
- Working range: 60-820mm
- Driven motor: Pneumatic and Electric
Technical Parameter
| Electric Model | Pneumatic Model | Working Range (ID mm) | Thickness (mm) | Power (kw) | Rotation (rpm) |
|---|---|---|---|---|---|
| ISY-150 | TCM-150 | φ60-170 | ≤15 | 1.43 | 30 |
| ISY-250 | TCM-250 | φ80-240 | ≤15 | 1.43 | 16 |
| ISY-351 | TCM-351 | φ150-330 | ≤15 | 1.43 | 10 |
| ISY-457 | TCM-457 | φ250-430 | ≤15 | 1.43 | 9 |
| ISY-630 | TCM-630 | φ300-600 | ≤15 | 1.43 | 8 |
| ISY-850 | TCM-850 | φ600-820 | ≤15 | 2 | 7 |
Power supplies
Electric: 1.43kw 2.0kw@220~230V 50~60Hz,1P
Pneumatic: 1500~2000L/ min@0.63~0.8MPa

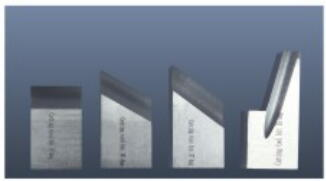

Material: M42, M35, W6
size: 20*40*8 mm,
Angle: 0°, 30°, 37°,- 15°

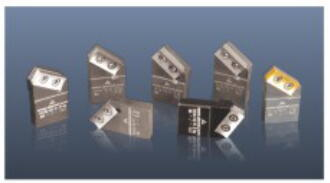

Tool holder: 40Cr
Insert: Carbide
size:20*40*8 mm
Angle: 0°, 30°, 37°
