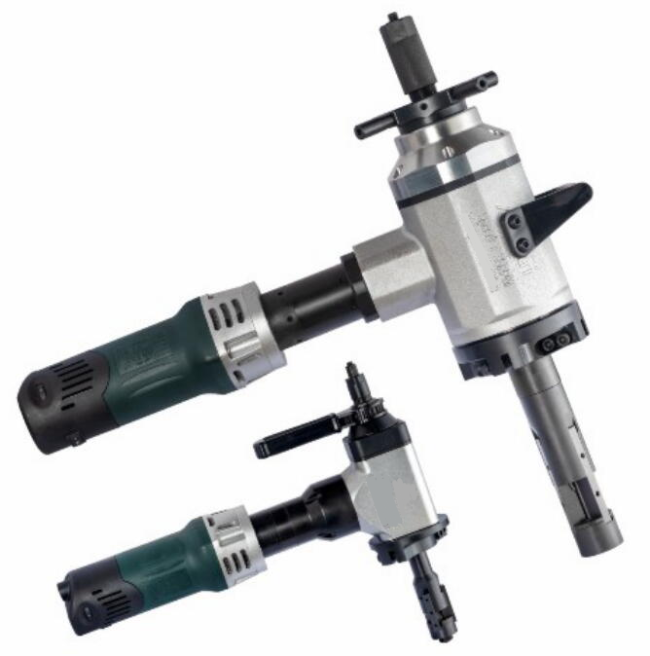

T Type Pipe Beveling Machine On Sale For Eavy Type Pipe Lines Of Petroleum, Chemical Natural Gas, Power Supply Construction, Boiler And Nuclear Power
This machine can face and bevel all type of pipe ends, pressure vessel and flanges.The machine adopts"T" design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. It is applicable to end face machining of metal pipes, such as carbon steel, stainless steel and alloy steel.It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.
FEATURES
Cold cutting, without influence the material of the pipe
ID mounted, adopt T structure
Bevel shape: U, Single-V, double-V, Jbeveling
Processing for repairing inner wall and deep hole.
Working range:12.5-330mm
Driven motor: Pneumatic and Electric
| Model | Working Range | thickness | Power | Rotation | |
| Electric | Pneumatic | ID mm | mm | kw | rpm |
| ISY-80T | TCM-80T | φ28-76 | ≤15 | 1.43 | 53 |
| ISY-90T | TCM-90T | φ36-90 | ≤15 | 1.43 | 50 |
| ISY-28TN-1 | TCM-28TN-1 | φ12.5-15 | ≤3 | 1.43 | 70 |
| ISY-28TN-2 | TCM-28TN-2 | φ15-20 | ≤5 | 1.43 | 70 |
| ISY-28TN-3 | TCM-28TN-3 | φ20-28 | ≤6 | 1.43 | 70 |
| ISY-80TN | TCM-80TN | φ26-79 | ≤15 | 1.43 | 70 |
| SDC-120TN | TCM-120TN | φ45-105 | ≤20 | 1.43 | 34 |
| SDC-150TN | TCM-150TN | φ60-170 | ≤20 | 1.43 | 34 |
| SDC-350T | TCM-350T | φ150-330 | ≤20 | 1.43 | 14 |
POWER SUPPLIES:
Electric: 1.43kw 2.0kw@220~230V 50~60Hz,1P
Pneumatic: 1500~2000L/ min@0.63~0.8MPa
Material: M42, M35, W6
size: 20*40*8 mm,
Angle: 0°, 30°, 37°,- 15°
Tool holder: 40Cr
Insert: Carbide
size:20*40*8 mm
Angle: 0°, 30°, 37°
