Indoor 4G 5G WiFi Das Distributed Antenna System Directional Panel Wall Mount Antenna
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 698-806 806-960 1710-2170 2200-2700 3300-4000 | |
| Gain(dBi) | 5.0±0.5 6.0±0.5 7.0±0.5 7.5±0.5 8.5±0.5 | |
| VSWR | ≤1.8 | |
| Polarization | ±45 | |
| Beam width(deg) | Horizontal Vertical | 80 80 65 60 55 |
| 73 70 60 60 30 | ||
| Front-To-Back Ratio( dB) | >5 >8 >10 >15 >10 | |
| PIM, 3rd Order, 2 x2 W(dBc) | -150 | |
| Maximum Power(W) | 50 | |
| Impedance(Ω) | 50 | |
| Connector Type : | 4.3-10-F×2 | |
| Dimensions, HxWxD (mm) | 320x195x55 | |
| Weight, without Mounting Kit(kg) | 0.9 | |
| Mounting Kit | On-wall | |
| Color | White | |
| Relative humidity(%): | < 95 | |
| Operating Temperature(ºC): | -55~60 | |
| Applications: | Indoor | |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid

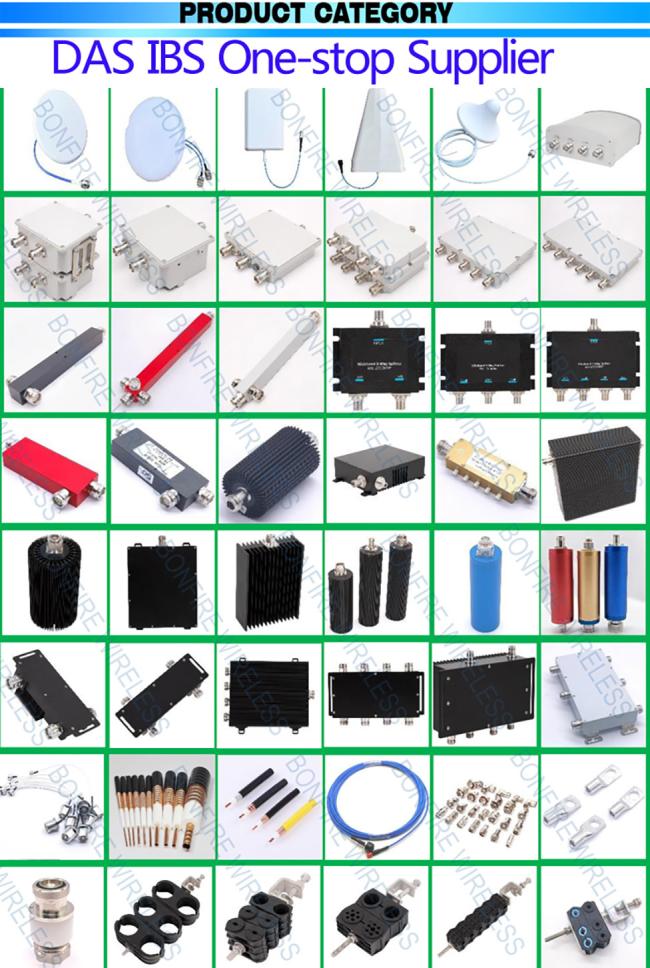

All our products category :
RF Antenna , RF combiner, Power Splitter , RF Connector , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
