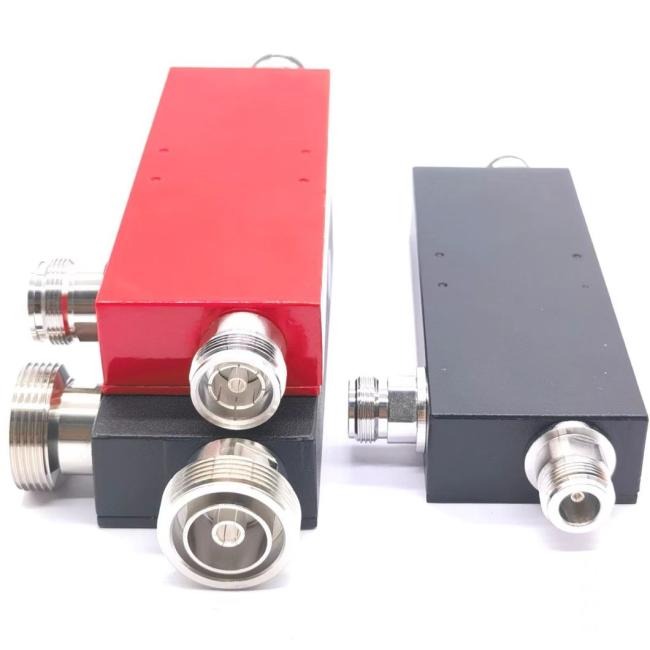

10dB N Female Flange Panel Directional Cavity Coupler for High Frequency Applications
FEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 698-3800 | |||||||||||
| Coupling(dB) | 3 | 5 | 6 | 7 | 8 | 10 | 12 | |||||
| Coupling Loss (dB) | ±0.8 | ±0.8 | ±0.8 | ±0.8 | ±1.0 | ±1.0 | ±1.0 | |||||
| Insertion Loss (dB) | ≤3.8 | ≤2.3 | ≤1.76 | ≤1.47 | ≤1.42 | ≤0.96 | ≤0.94 | |||||
| Isolation (dB) | ≥21 | ≥23 | ≥24 | ≥25 | ≥26 | ≥28 | ≥30 | |||||
| Coupling(dB) | 13 | 15 | 20 | 25 | 30 | 40 | ||||||
| Coupling Loss (dB) | ±1.0 | ±1.2 | ±1.2 | ±1.3 | ±1.5 | ±1.7 | ||||||
| Insertion Loss (dB) | ≤0.6 | ≤0.44 | ≤0.34 | ≤0.32 | ≤0.3 | ≤0.3 | ||||||
| Isolation (dB) | ≥31 | ≥33 | ≥38 | ≥43 | ≥48 | ≥55 | ||||||
| VSWR | ≤ 1.25 | |||||||||||
| PIM3 (dBc@2*43dBm) | ≤ -155 | |||||||||||
| Input Power(W) | 300 | |||||||||||
| Impedance(Ω) | 50 | |||||||||||
| RF Connector | N-F | |||||||||||
| Color | Black | |||||||||||
| Relative humidity | 5%~95% | |||||||||||
| Operating Temperature(°C) | -35 ~ +75 | |||||||||||
| Applications | Indoor/Outdoor(IP65) | |||||||||||
