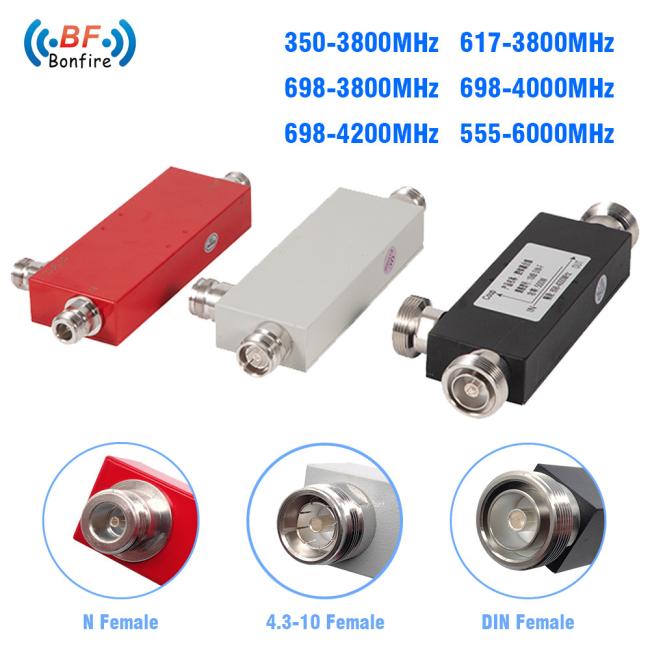

698-3800MHz RF Directional Coupler 30dB Low Pim for Wireless Communication Systems
FEATURES: ★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 698-3800 |
| Coupling(dB) | 15 |
| Coupling Loss (dB) | ±1.2 |
| Insertion Loss (dB) | ≤0.44 |
| Isolation (dB) | ≥33 |
| VSWR | ≤ 1.25 |
| PIM3 (dBc@2*43dBm) | ≤ -150 |
| Input Power(W) | 300 |
| Impedance(Ω) | 50 |
| RF Connector | 4.3-10 F |
| Color | Black |
| Relative humidity | 5%~95% |
| Operating Temperature(°C) | -35 ~ +75 |
| Applications | Indoor/Outdoor(IP65) |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid

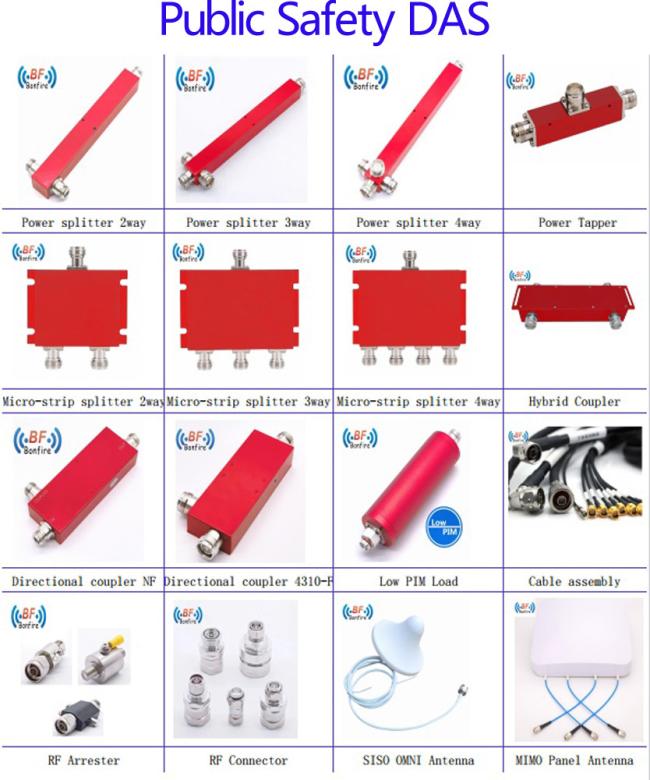

All our products category :
RF Antenna , RF combiner, Power Splitter , RF Connector, Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
