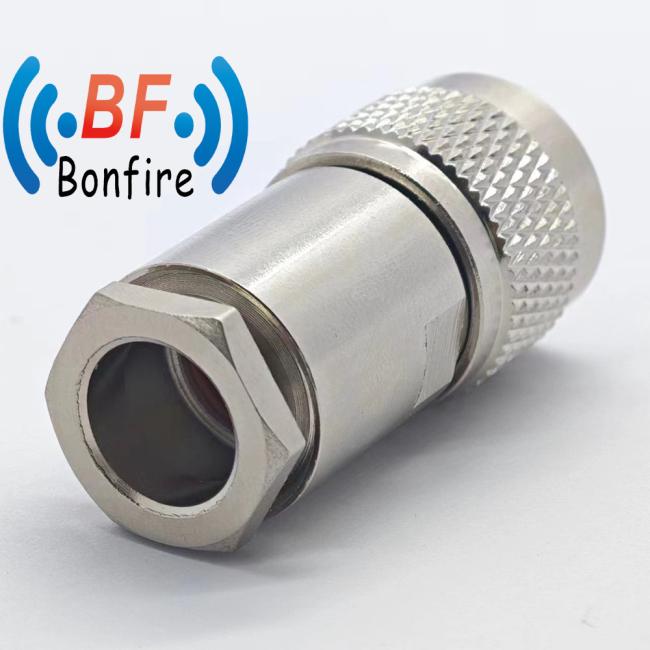

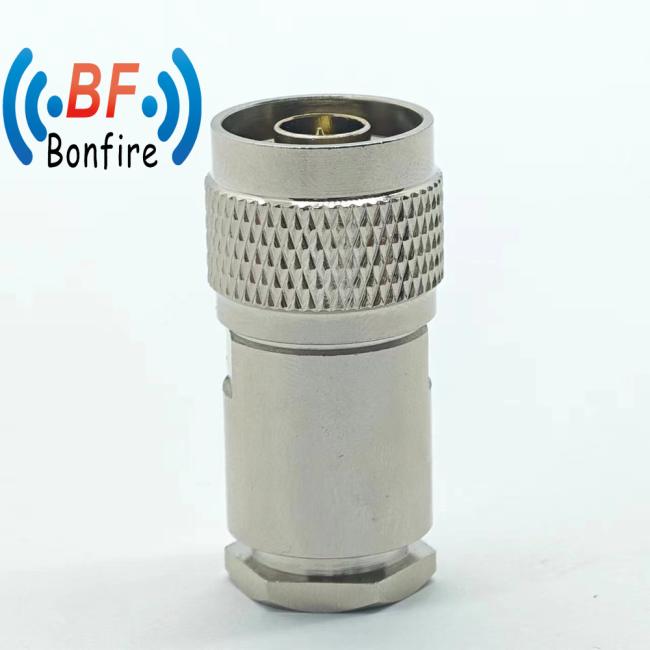

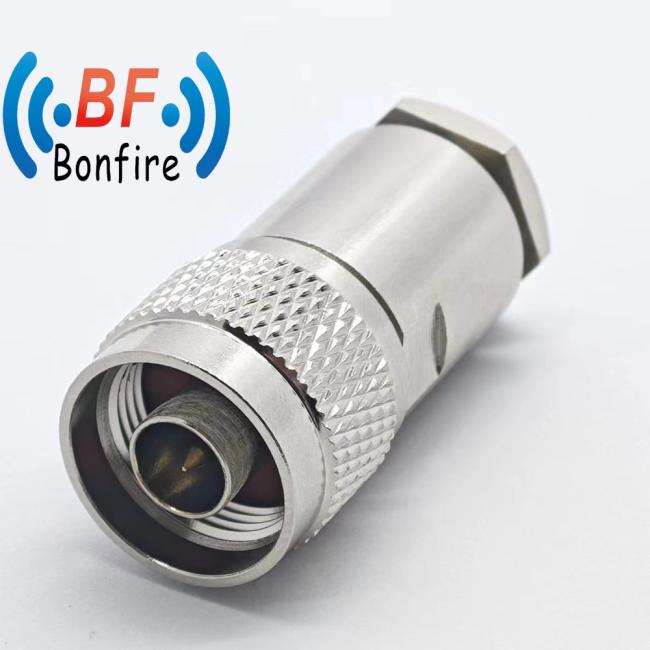

DC-11GHz N Male Straight Clamp LMR 400 Captive Type RF Connector Waterproof Rate IP 67
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Material and Plating | ||
| Center contact | Brass / Gold Plating | |
| Outer contact & Body | Brass / CuSnZn Plating | |
| Dielectric | PTFE | |
| Gasket | Silicone Rubber | |
| Nut | Brass / CuSnZn Plating | |
| Electrical Characteristics | ||
| Characteristics Impedance | 50 Ohm | |
| Frequency Range | DC~11GHz | |
| Insulation Resistance | ≥5000MΩ | |
| Contact resistance | Center contact | ≤1.0 mΩ |
| Outer contact | ≤0.4 mΩ | |
| Dielectric Strength | 2500V rms (AC) | |
| Working voltage | 1000V rms | |
| Insertion Loss | ≤0.15dB@3GHz | |
| VSWR | ≤1.15@3GHz | |
| EnviroNFental and Mechanical Specifications | ||
| Durability (matings) | ≥500 cycles | |
| Thermal Shock Test Method | MIL-STD-202, Method 213, Test Condition G | |
| Vibration Test Method | MIL-STD-202, Meth. 204, Cond. B | |
| Temperature Range | -65°C to +165°C | |
| Weight | 40g | |
| RoHS | Compliant | |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
