N Type RF Connector Adapter Cable Assembly for 1/2 Cable Package Gross Weight 0.210kg

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Product Description

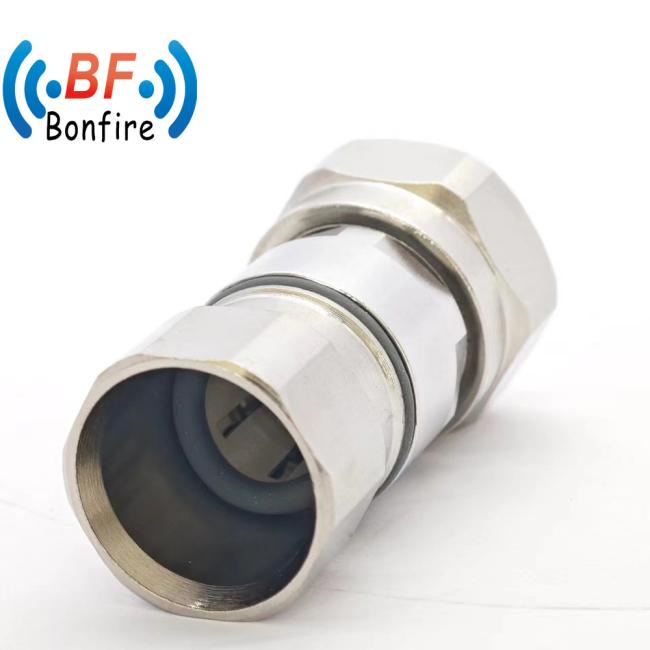

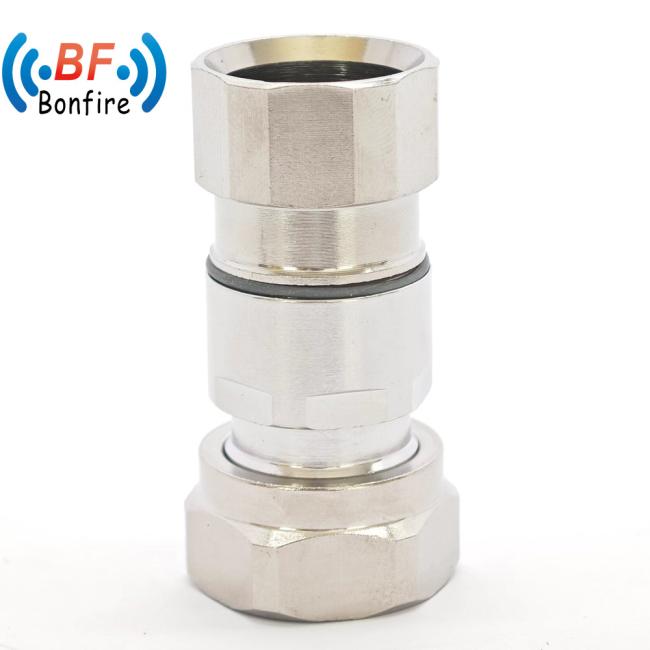

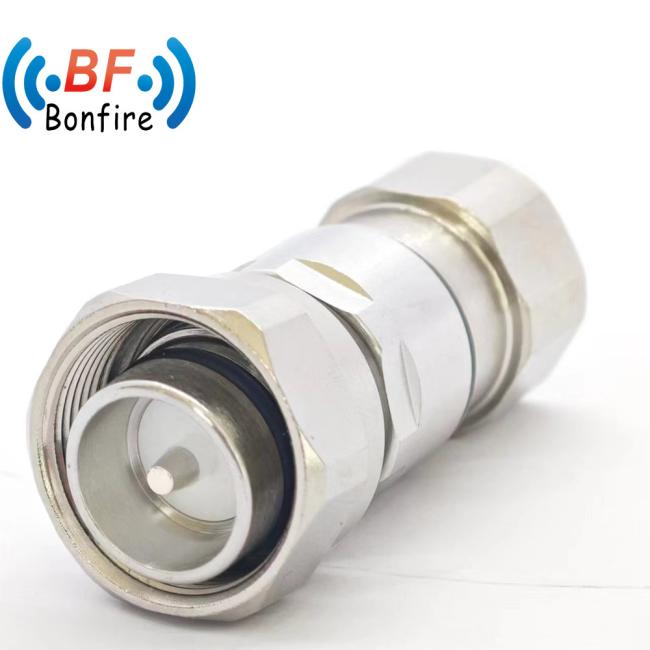

N Type RF Connector Adapter Cable Assembly for 1/2 Cable

FEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.

Specifications:
Electrical
Characteristic Impedance 50 ohm
Frequency Range DC-4GHz
VSWR ≤1.15
Insertion Loss ≤0.1dB
Intermodulation 3rd ≤ -155dBc
Dielectric Withstanding Voltage ≥2500V RMS,50hz,at sea level
Working Voltage 1500V RMS,50Hz,at sea level
Dielectric Resistance 5000MΩ
Contact Resistance Center Contact ≤1.0mΩ
Outer Contact ≤1.0
Environmental  & Mechanical
Temperature Range -45ºC ~ +85ºC
Waterproof Rate IP 67
Durability ≥500 cycles
ROHS compliant Full ROHS compliance
Material and Plating
  Material Plating
Body Brass Tri-alloy
Insulator PTFE -
Center conductor Brass Ag
Circlip Stainless steel -
Connection sleeve Brass Ni
N Type RF Connector Adapter Cable Assembly for 1/2 Cable

N Type RF Connector Adapter Cable Assembly for 1/2 CableN Type RF Connector Adapter Cable Assembly for 1/2 CableN Type RF Connector Adapter Cable Assembly for 1/2 CableN Type RF Connector Adapter Cable Assembly for 1/2 Cable
N Type RF Connector Adapter Cable Assembly for 1/2 Cable
N Type RF Connector Adapter Cable Assembly for 1/2 Cable
N Type RF Connector Adapter Cable Assembly for 1/2 Cable

N Type RF Connector Adapter Cable Assembly for 1/2 Cable
N Type RF Connector Adapter Cable Assembly for 1/2 Cable

All our products can satisfy :

1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid

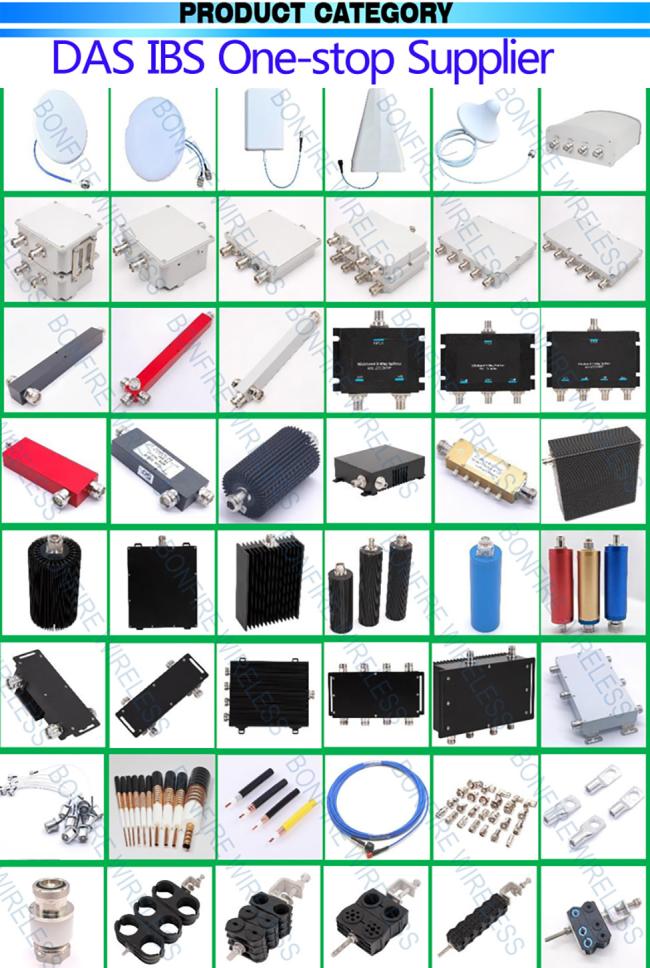

All our products category :

RF Antenna , RF combiner, Power Splitter , RF connector , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable,   RF Coaxial Cable , Cable clamp , etc.

We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .



Customers we served :

HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
