A220B Recessed LED Strip Light With SMD2835 60pcs/m DC12V 3000/4000/6000K CRI 90

A220B Recessed LED strip light, 1000*22*14, 10w, 1500mm, DC12V,3000/4000/6000K, CRI＞90

Installation Caution

1. When installing and repairing the lamps, they should be operated by professional personnel.
2. Please check the lamp cord, transformer and all other parts regularly for damage, if any part is damaged, the
If any part is damaged, stop using it.
3. When installing and using the product, please strictly follow the requirements of this manual and keep it for future use.
4. The light source of this product is a non-replaceable light-emitting diode (LED).
5. Please do not install the lamp in high temperature, high humidity, high dust environment.
6. Hold the product gently to avoid damage to the product.

Maintenance
1. Before cleaning, please make sure the fixture is not connected to the power supply.
2. Wipe the product gently with a soft cloth periodically to maintain the original finish.
3. Do not use harsh chemicals on the product to avoid affecting the color or finish.

Installation

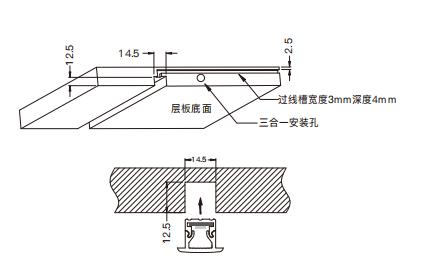

1. Cabinet laminates open width 14.5mm depth 12.5mm through the groove, laminates side opening width 3mm depth 4mm over-wire groove.

2. Light fixtures are installed in laminate light slots and light wires are installed in laminate side wire slots.

3. When installing the laminate, open a φ8 mm wire hole at the corresponding position on the back panel of the cabinet, and insert the male connector of the light wire into the power supply driver to complete the installation.

Assembly Schematic
