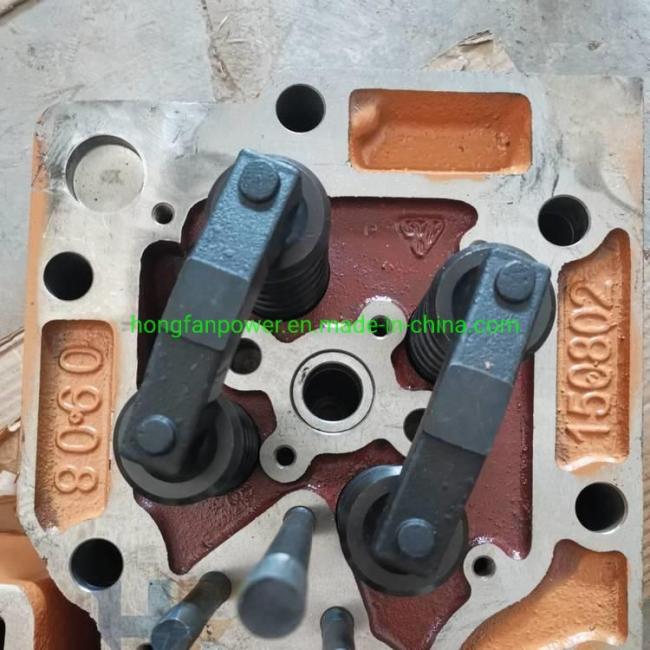

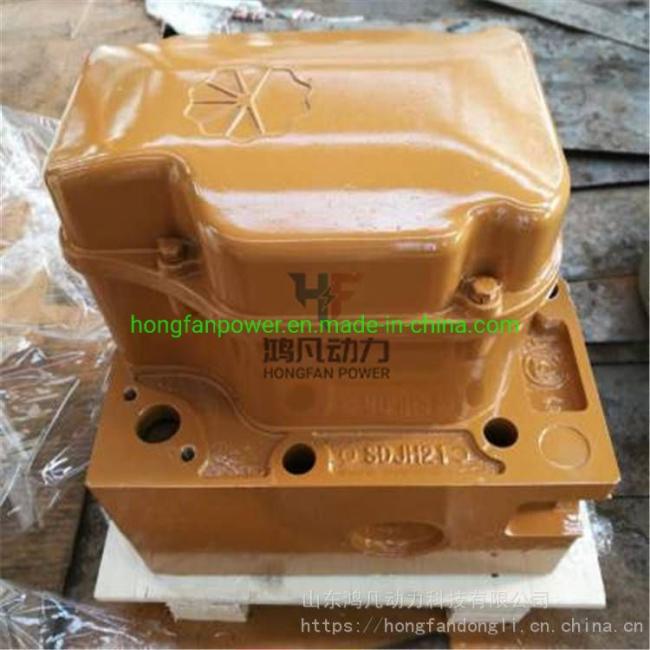

Jichai 12V190 Chidong Shengdong Diesel Engine Parts 12vb. 03.00 Cylinder Head Assembly
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
jichai, chidong,shengdong diesel engine parts 12vb.03.00 cylinder head assembly
Jechai 500KW cylinder head assembly accessories details (engine) 127.03.00C
![Jichai 12V190, Chidong, Shengdong Diesel Engine Parts 12vb. 03.00 Cylinder Head Assembly]()
![Jichai 12V190, Chidong, Shengdong Diesel Engine Parts 12vb. 03.00 Cylinder Head Assembly]()
![Jichai 12V190, Chidong, Shengdong Diesel Engine Parts 12vb. 03.00 Cylinder Head Assembly]()
Answer JiChai 6190 free ship 8 v190 engine/machine/JiChai JiChai 12 v190 engine | gas machine/JiChai 16 v190 biogas engine troubleshooting, such as machine failure analysis, etc. The company is located in Jinan, Shandong Province. It provides Jichai 190 engine and generator set accessories for thousands of customers. Ji Chai accessories sales center 24 hours for customer service, accessories warehouse, convenient logistics, fast delivery, accessories factory quality, reasonable! The company supplies Jichai 190 accessories, Jichai diesel engine accessories, Jichai 12V190 drilling supporting diesel engine accessories, Jichai 6190-8190 Marine engine accessories, Jichai natural gas generator set accessories, Jichai 500KW, 600KW, Jichai H16V190 gas generator set accessories, Shengda 190 gas machine accessories.
Jechai 500KW cylinder head assembly accessories details (engine) 127.03.00C
| no | num | name |
| 1,2,3,5,6,7,12,13, | 12VB.03.10 | Rocker arm |
| 8 | 12VB.03.09B | Rocker arm seat bolt (long) |
| 9 | GB93 | Washer 14 (Rocker arm retaining bolt) |
| 10 | Q/JC11013 | Nut M14*1.5 |
| 11 | 12VB.03.04 | Short bolt (Rocker arm fixing bolt) |
| 14 | 1812T.03.03 | Coupling sleeve |
| 15 | Q/JC11010 | Bolt M10*30 (press plate fixing bolt) |
| 16 | 127.03.06 | Spark plug sheath gasket |
| 17 | 127.03.04B | Pressure plate |
| 18 | 127.03.03 | gasket |
| 21 | 127.03.80.01C | Cylinder head |
| 23 | 12VB.03.51 | Cushion (Rocker arm seat) |
| 29 | 127.03.80.04 | Intake valve seat |
| 30 | 12VB.03.37C | Intake valve |
| 31 | 12VB.03.22C | Exhaust valve |
| 32 | 127.03.80.03A | Exhaust valve seat |
| 33 | 12VB.03.29 | Gas plug |
| 36 | GB848 | Washer 10 (Lower cover housing retaining bolt) |
| 37 | GB93 | Washer 10 (press plate retaining bolt) |
| 41,42,43,44 | 12VB.03.70 | Fork assembly |
| 45 | 12VB.03.30B | Transverse arm (bridge) convex head parts |
| 46 | GB6173 | Nut M14*1 (Adjusting Screw) |
| 47 | 12VB.03.60B | Adjusting screw parts (Rocker arm) |
| 48 | 12VB.03.03B | Cross arm cross bridge |
| 49 | 12VB.03.90B | Adjusting screw parts (cross bridge) |
| 50,51,52 | 601.03.16A | Buckle tile |
| 53 | 127.03.30A | Valve rotating mechanism |
| 54 | Z12V.03.18A | Outer valve spring |
| 55 | Z12V.03.17A | Internal valve spring |
| 57 | 12VB.03.12A | Seal ring |
| 58 | 1812T.03.14 | Lower housing |
| 60 | 12VB.03.11 | Seal ring |
| 61 | 1812T.03.02 | Upper housing |
| 62 | GB848 | Washer 8 (Upper cover housing retaining bolt) |
| 63 | GB5782 | Bolt M8*30 (Upper cover housing retaining bolt) |
| 64 | 1812T.03.05 | Spark plug cover |
| 65 | 1812T.03.01 | Set of |
| 66 | 1812T.03.04 | O-ring seal |
| 67 | Q/JC11010 | Bolt M10*100 (Lower cover housing retaining bolt) |
| 69 | 12VB.03.19 | Spring lower seat |
| 127.03.80.06 | Oil seal | |
Answer JiChai 6190 free ship 8 v190 engine/machine/JiChai JiChai 12 v190 engine | gas machine/JiChai 16 v190 biogas engine troubleshooting, such as machine failure analysis, etc. The company is located in Jinan, Shandong Province. It provides Jichai 190 engine and generator set accessories for thousands of customers. Ji Chai accessories sales center 24 hours for customer service, accessories warehouse, convenient logistics, fast delivery, accessories factory quality, reasonable! The company supplies Jichai 190 accessories, Jichai diesel engine accessories, Jichai 12V190 drilling supporting diesel engine accessories, Jichai 6190-8190 Marine engine accessories, Jichai natural gas generator set accessories, Jichai 500KW, 600KW, Jichai H16V190 gas generator set accessories, Shengda 190 gas machine accessories.
