Custom Aluminum Profile U Channel U Base Shoe With Handrail For Glass Railing Balustrade

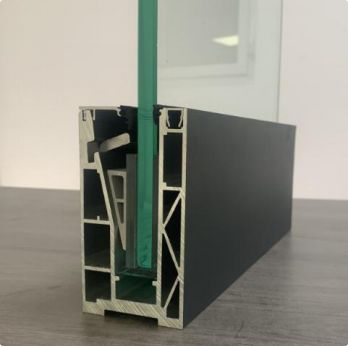

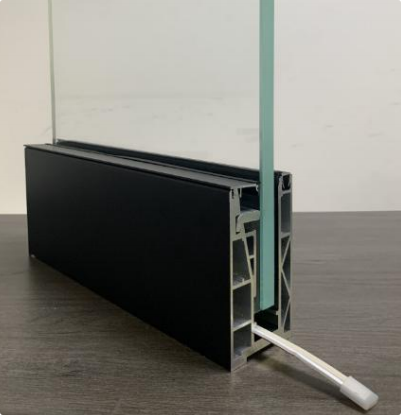

Aluminum u channel also called U-shaped channel/U-profile/U base, it is the popular structural element for glass railing balustrade, it's durable/modern and easy to install, with the excellent corrosion resistant for indoor and outdoor use.

The specification of Aluminum Profile U Channel:

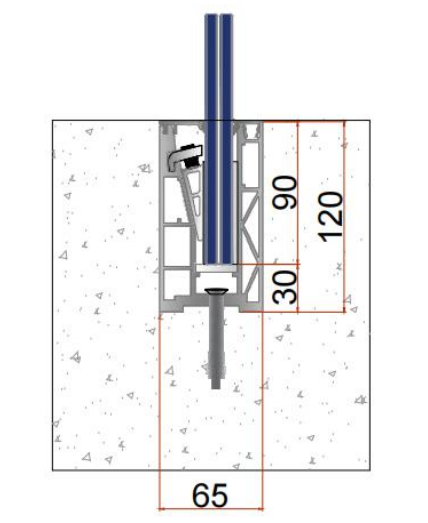

	Profile specifications	width 65mm/height 120mm.
	Suitable glass	12mm, 15mm, 6mm+1.52+6mm, 8mm+1.52+8mm.
	The depth of glass into the U channel	90mm
	Standard colors	Sand black, sand gray, sand coffee. Customized colors support
	Regular length	4m per pc

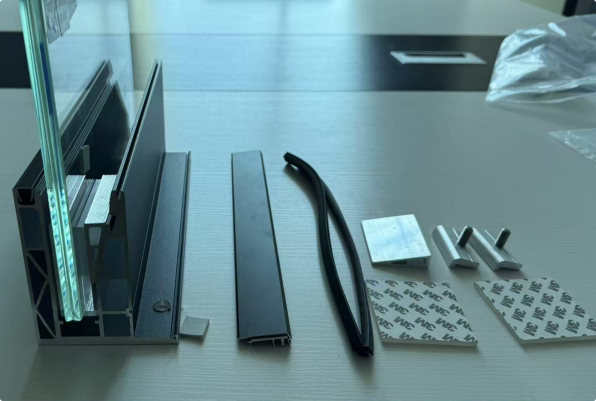

	Accessories	4 sets per meter of fastening accessories/m (triangle blocks, pressure blocks, acrylic, etc.), 5 sets per meter of expansion screws. (Standard 304 stainless steel pull-out).
	Led strip	If you need, support to make it for you.

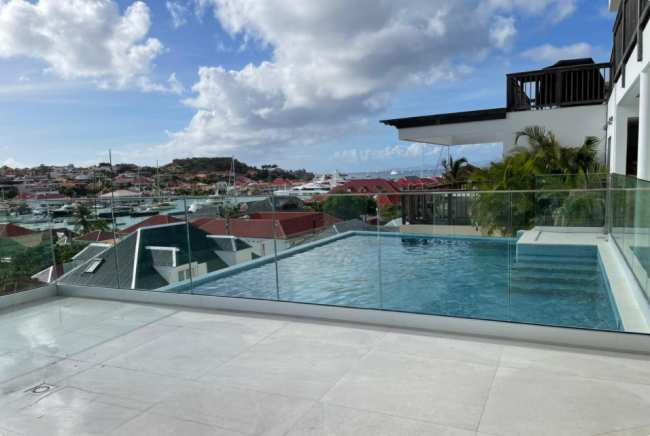

	Application	deck/stair/balcony/divider

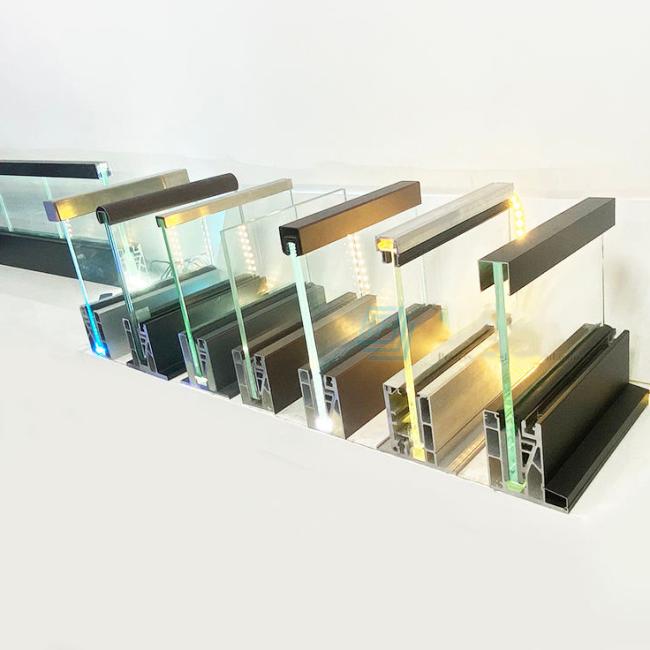

Different types of the Aluminum alloy handrail on the top of the glass

Why choose the aluminum u channel with handrail for glass railing?

Aluminum U channel with handrail for glass railing, offers a modern/durable and low-maintenance system that provides a sleek, frameless appearance while ensuring structural integrity. The aluminum is weather-resistant, corrosion-resistant, and can be a more affordable and faster to install than other systems.

The advantage of aluminum U-channel with handrail for glass raing:
1.Modern aesthetics: The U-channel provides a clean, frameless look by securely holding the glass directly in the base, which creates a modern and minimalist design.
2.Durable and easy to maintain: The high-grade aluminum is durable, resistant to corrosion, rust, and UV damage, making it suitable for both interior and exterior decoration.
3.Strong and safe: Aluminum channels provide robust structural support for glass panels, and the combination with a separate handrail adds an extra layer of safety, especially in commercial or high-traffic areas.
4.Easy to install: Aluminum U-channel systems are often designed for easy installation, without requiring welding, and can be mounted in several ways (e.g., embedded, floor-mounted, or side-mounted).
5. Handrail options: can be square or round and made of stainless steel or matching aluminum, can be added on top of the U-channel for a more traditional handhold.
