5tons Electric Knuckle Boom Xcmg Howo Used Mobile Wrecker Mounted Crane Truck

Name: 5tons Electric Knuckle Boom Xcmg Howo Used Mobile Wrecker Mounted Crane Truck
Brand: Zhejiang Bioclean Machinery Technology Co., Ltd

Price Negotiable

Price: 5000-10000 USD

MOQ: 1

Delivery Time: 40 Workingdays

Brand: BIOCLEAN

Product Description

Product descriptions

This truck-mounted crane perfectly combines maneuverability and lifting power, delivering exceptional adaptability for diverse hoisting operations. Capable of both transporting cargo and performing on-location lifts, it cuts idle time, minimizes expenses, and boosts work efficiency. This robust equipment turns complex tasks into manageable ones, rendering heavy hoisting safer and more streamlined regardless of the job site.

Product Specification

Maximum liting capacity	5000kg
Boom length range	3.8~11.5m
Boom shape	Hexagonal arm
Maximum liting moment	125KN.M
Rotation angle	360°
Rotating structure	Integrated turntable
Rear outrigger width/span	Optional (single/doublechamber legs)
How to operate	Next operation
Boom sections	4 sections
Maximum working radius	11.5m
Maximum liting height	13.5m
Luffing Angle	0-78°
Rotation speed	3r/min
Front outrigger width/span	2m/4.9m
Gear Pumps	Single Pump

Product Overview

Goods Transport & Hoisting Integration

This vehicle seamlessly combines goods transport and lifting capabilities, serving as a two-in-one equipment with enhanced efficiency. It merges transportation and hoisting functions, enabling smooth adaptation to diverse working scenarios while maximizing operational flexibility.

Integrated Rotation Turntable

Featuring an electric slip ring, the turntable supports 360° continuous rotation without limitations. Its rotation assembly adopts a dual-stage planetary gear reducer, ensuring the entire rotating process remains extra steady and reliable.

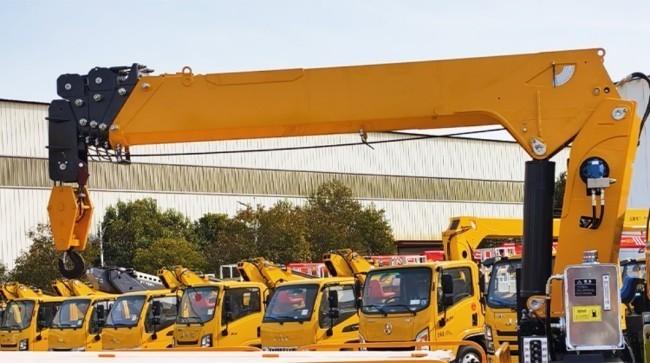

U-Shaped Single-Plate Boom

The U-shaped single-plate boom boasts a sleek design, with a wider load-bearing surface and even stress distribution. It is robust and long-lasting, significantly elevating the crane’s overall hoisting performance with superior structural strength.

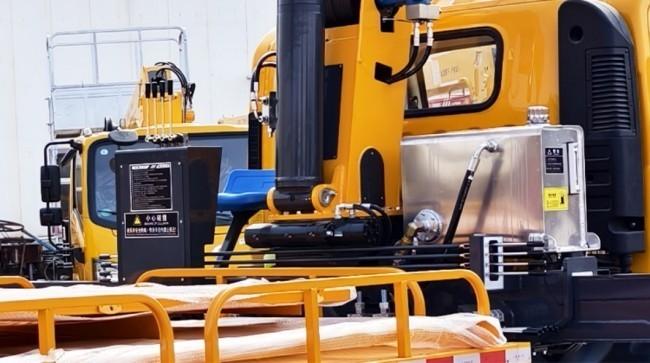

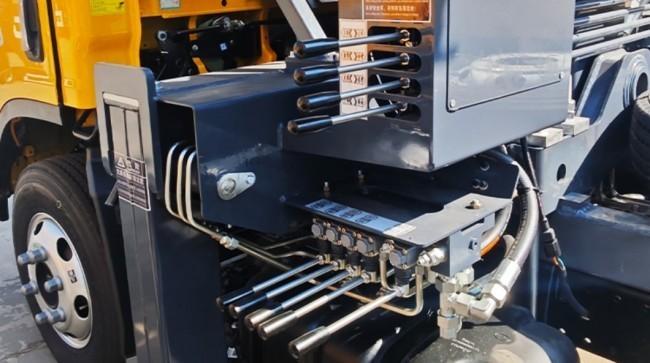

Hydraulic Control Valve

The hydraulic system’s off-board control valve employs a Type-20 reinforced valve core, offering intuitive and straightforward operation. It delivers enhanced stability and reliable safety, meeting professional operation requirements with ease.

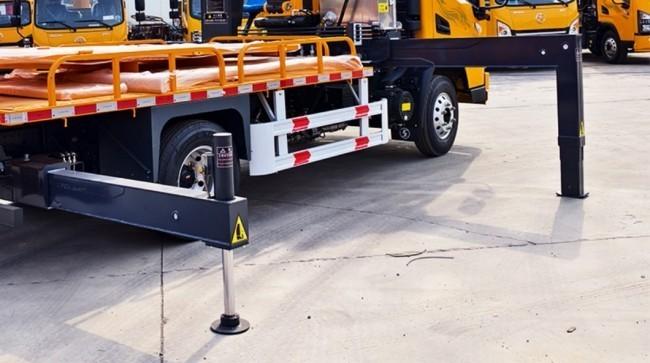

H-Type Support Legs

With an expanded lateral spread and excellent telescopic range, the H-type legs expand the vehicle’s supporting footprint. This design allows strong adaptability to rough terrain and uneven work areas, ensuring stable operation in complex environments.
