6tons Tricycle Knuckle Boom Xcmg Howo Used Mobile Wrecker Mounted Crane Truck
Price:
5000-10000 USD
MOQ:
1
Delivery Time:
40 Workingdays
Brand:
BIOCLEAN
Product Description
Product descriptions

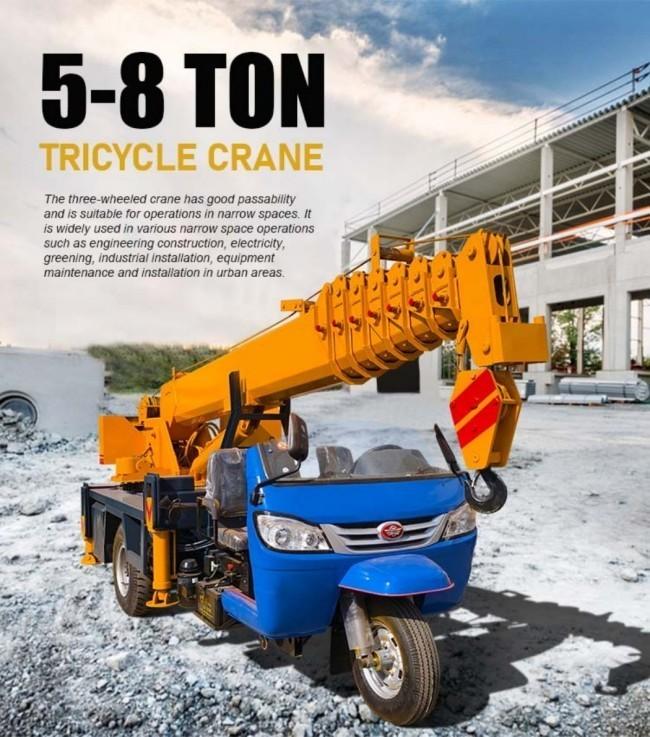

6-Ton Three-Wheeled Truck-Mounted Crane: Compact & Versatile Lifting Solution
The 6-ton three-wheeled truck-mounted crane is particularly well-suited for outdoor locations lacking power sources, with wide applicability across light-duty trucks, panel vans, covered lorries, loading/unloading yards, work platforms, and logistics hubs. Its streamlined structure, compact dimensions, lightweight build, and minimal space requirement enhance maneuverability, making it an ideal choice for lifting light loads and small-batch goods that require precise positioning in confined areas.
Product Specification
| Chassis | BC three-wheel chassis | BC three-wheel chassis | BC three-wheel chassis |
| Engine | 25horsepower | 28horsepower | 3Zhorsepower |
| Braking performance | Oil brakeHigh and low speed8files | Oil brakeHigh and low speedl0files | Air brakeHigh and low speedlofiles |
| Upper arm | 3 meters*7 sections | 3.5rice*7Festival | 3.5rice8Festival |
| Maximum lift height | 16 meters | 19 meters | 21meters |
| Outriggers | Fully hydraulic lateral legs*4stripBack shift | Fully hydraulic lateral legs 4stripBack shift leg*lstrip | Fully hydraulic lateral legs 4stripBack shift |
| Large frame | Hydraulic rear extension 0.8rice | Hydraulic rear extension 0.8rice | Hydraulic rear extension 0.8rice |
| Lifting system | Single hook6Tons winch | Single hook6Tons winch | Single hook6Tons winch |
| Tire | 750-16 | 825-16 | 825-16 |
| Slewing bearing | Crane special turntablelrice | Crame special turntablelrice | Crame special turntablelrice |
| Turning capability | 360°Rotation | 360°Rotation | 360°Rotation |
| Vehicle weight | 5ton | 5ton | 5ton |
| Specification | 5.3* 1.55*2.2m | 5.4*1.55*2.3m | 5.5*1.55*2.3m |
| Lifting capacity | Hanging1Ton Stretch15leter height, maximum lifting | Hanging1Ton Stretch18leter height, maximum lifting | Hanging1Ton Stretchtwenty oneleter height, maximum |
Product Overview
HOOK
Precision-engineered and manufactured to stringent standards, the crane hook boasts superior strength and excellent toughness. Its robust design guarantees stable, reliable performance throughout every lifting operation, minimizing risks during load handling.

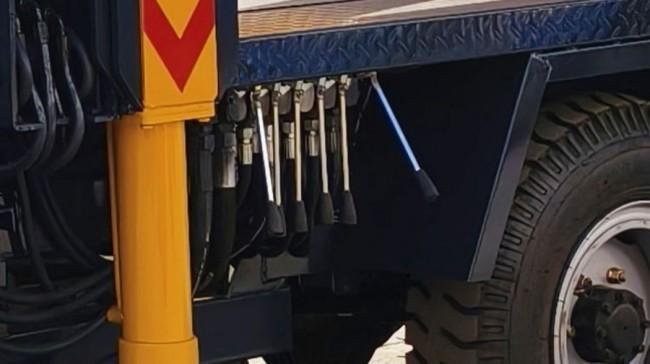

HYDRAULIC SYSTEM
The all-hydraulic control system features intuitive and straightforward operation, with streamlined controls that reduce operational complexity. It delivers exceptional safety performance and smooth responsiveness, meeting professional lifting requirements with ease.

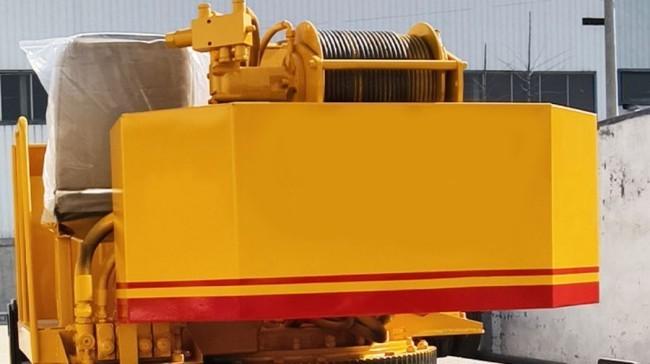

HOIST
Equipped with a high-performance hoist, the crane offers robust hoisting capability paired with top-tier safety and reliability. Its sturdy construction ensures long-lasting durability, while the optimized design keeps failure rates remarkably low for consistent workflow.

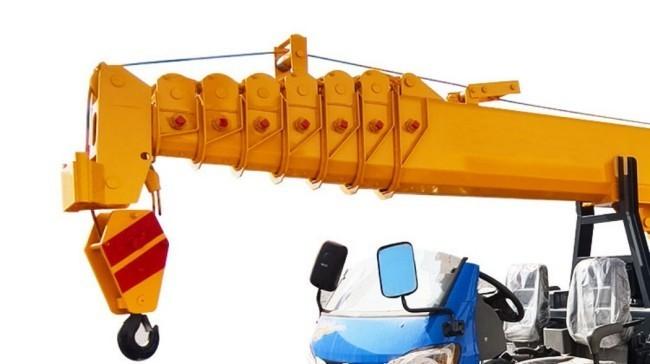

U-ARM
The U-shaped arm showcases a sleek and ergonomic design, combined with enhanced durability and structural integrity. Its optimized load distribution elevates the crane’s overall hoisting efficiency, making it stand out in handling light to medium-duty lifting tasks.

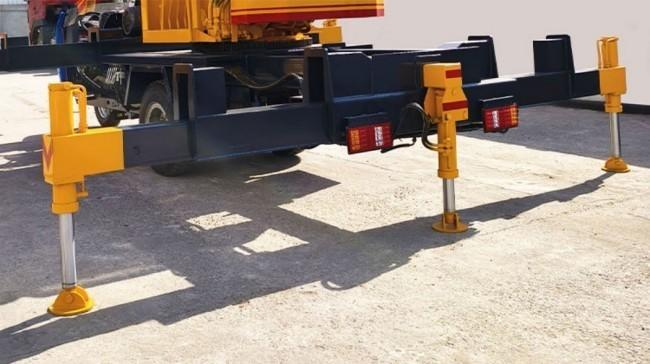

H-SHAPED OUTRIGGERS
Featuring innovative H-style support legs, this crane excels on rough terrain and uneven work areas. The redesigned outrigger structure enhances adaptability to damaged roads and irregular job sites, providing superior stability during lifting operations.
