6000L Truck-mounted Tack Hot Bitumen Pressure Asphalt Emulsion Distributor Trailer Sprayer Truck
Price:
5000-10000 USD
MOQ:
1
Delivery Time:
40 Workingdays
Brand:
BIOCLEAN
Product Description
Product descriptions

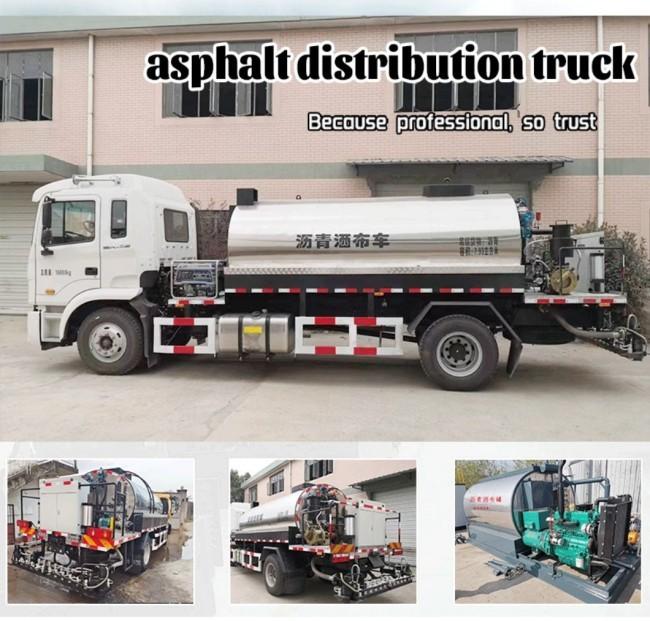

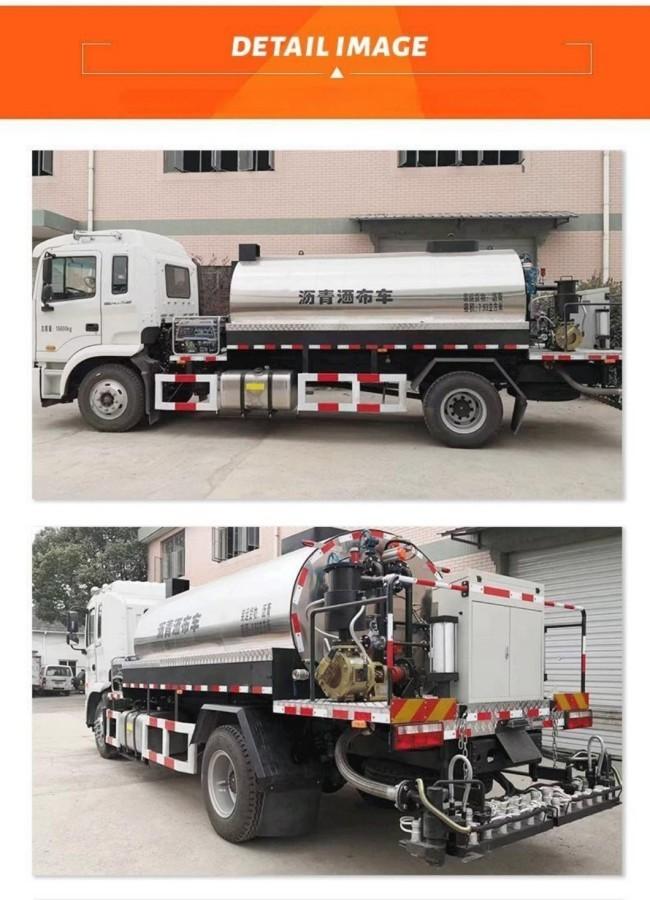

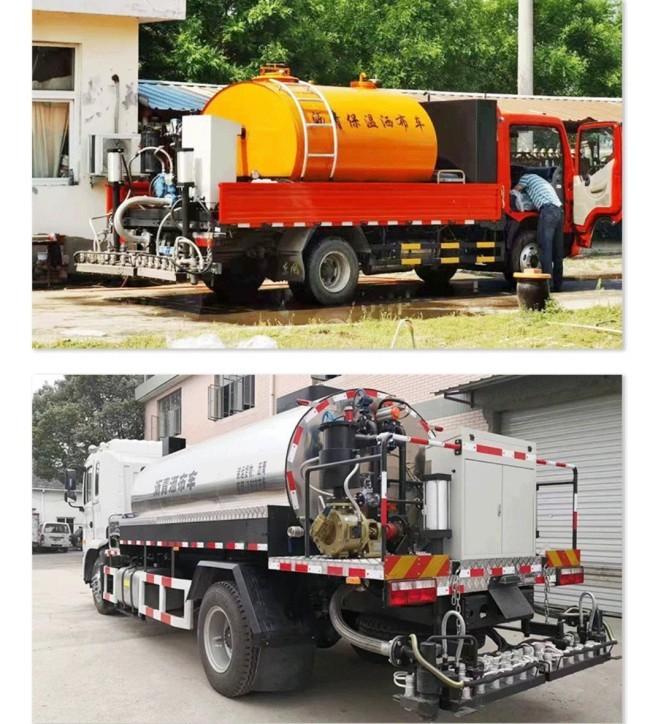

6000L Truck-Mounted Tack Hot Bitumen Pressure Emulsion Distributor
Introducing our 6000L truck-mounted tack hot bitumen pressure emulsion distributor – a high-performance solution engineered for precise asphalt application. Every atomizing spray head boasts independent regulation, enabling flexible adjustment of spray coverage paired with instant activation and shutoff for meticulous operation.
Controlled via a pneumatic cylinder directly from the driver’s cab, the system ensures safe, hassle-free operation without the need for on-site adjustments. A high-precision proportional asphalt pump delivers exact control over spray rates, guaranteeing consistent application across all surfaces. The fan-shaped atomizing design of the spray heads further enhances uniformity, achieving a flawless coating effect that meets professional construction standards.
The asphalt pump is heated by engine cooling water, while a low-speed motor drive minimizes energy consumption and ensures easy startup even in low-temperature environments. For pipeline maintenance, the integrated cleaning system combines diesel circulation flushing with high-pressure air purging, effectively preventing residue buildup and extending equipment lifespan.
With an intuitive control interface, the distributor offers straightforward operation and simplified maintenance, reducing downtime and operational costs. Equipped with a reliable RIELLO burner, the system efficiently heats bitumen to the required temperature, ensuring optimal fluidity for seamless spraying in various construction scenarios.
Product Specification
| Model | BCADT-6000 |
| Color | Red ,white or optional |
| Drive type | 4x2,right hand drive |
| Dimensions | |
| Wheel base | 3800mm |
| Overall Dimension | 7450x2300x2800mm |
| Tank volume | 6.000L |
| Weights | |
| Payload weight | 9850kg |
| Curb weight | 6300kg |
| Front /Rear tread | 1798/1764mm |
| Front/rear overhang | 1240/1995mm |
| Approach/Departure angle | 23/15° |
| Engine | |
| Engine model | YN4102QBZL |
| Engine power | 116HP |
| Engine manufacturer | Power Co.,Ltd |
| Emission standard | Euro 2 |
| Displacement | 3760L |
| Drive Line | |
| Transmission | 6 forwarder,1 reverse gearManual operation |
| Power steering | Yes |
| Braking system | Service brake |
| Axles | |
| Front Axle-Model | 2.7ton |
| Rear Axle(drive axle)-Model | 7.2 ton |
| Tire specification | 7.50R16, radial tire,6 tires+1 spare tire |
