8.2m³ High-Capacity Water Sprinkler Truck for Efficient Road Watering and Dust Suppression
Price:
10999 USD
MOQ:
1
Delivery Time:
30 work days
Brand:
Bioclean
Product Description
Basic Info.
Model NO.
ZBJ5120GSSC
Volume
5001 - 10000L
Certification
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Emission Standard
Euro 6
Sprinkling Area
10-16m
Transmission Type
Manual
Payload
6750kg
Fuel
Diesel
Drive Wheel
4×2
Engine Capacity
＜4L
Condition
New
Chassis
EQ1125SJ8CDC
Engine
CY4SK361
Maximum Speed
103km/H
Approaching/Departure Angle
15°/14°
Axle Load
4350/7645kg
Front/Rear Overhang
1130/1910mm
Curb Weight
5050kg
Rated Loading
6750kg
Total Mass
11995kg
Tank Material
Carbon Steel or Stainless Steel
Tank Thickness
4mm/5mm/6mm
Effective volume
7.08m³
Transport Package
Wooden Case /Iron Frame/Container/SKD /CKD
Specification
6840x2190x2415mm
Trademark
Bioclean
Origin
Ningbo, China
HS Code
8705909990
Production Capacity
5000PCS/Year
Packaging & Delivery
Package Size
690.00cm * 230.00cm * 250.00cm
Package Gross Weight
11000.000kg
Product Description
Product Description:
Water Sprinkling Customized Watering Tank Truck Water Spraying Truck
friendly reminder:
The images shown as below are new ones, if you would like a used same model for cheaper price, please contact us for details! wait for your futher discussion ,thanks .

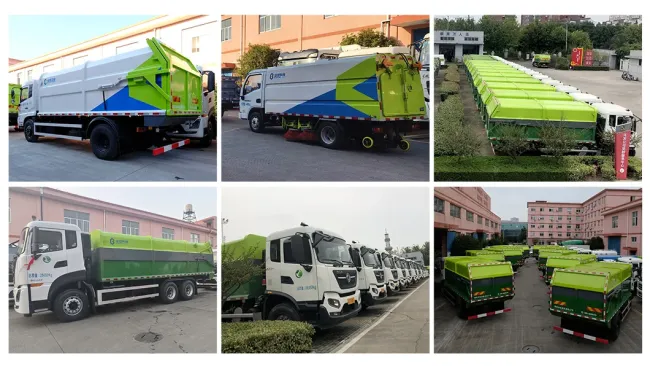

Best selling models
Water Sprinkling Customized Watering Tank Truck Water Spraying Truck
friendly reminder:
The images shown as below are new ones, if you would like a used same model for cheaper price, please contact us for details! wait for your futher discussion ,thanks .
Best selling models

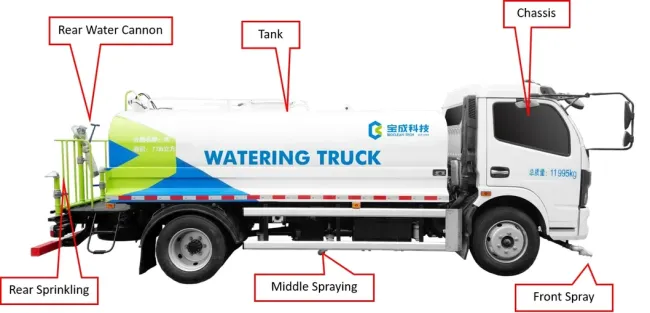

| Serial Number | Component Name | English Description |
|---|---|---|
| 1 | Chassis | Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle. Engine: Adopt a diesel engine of a well-known brand, which has strong power. |
| 2 | Water Tank | The water tank has a large volume and a long working time. The water tank is optimized in design using the finite element analysis method and has passed strict reliability tests. The water tank adopts the advanced one-time tank forming technology, and it has been detected by penetration non-destructive flaw detection, with no water leakage and a long service life. |
| 3 | Low-pressure Water Circuit System | Low-pressure Water Pump: Adopt a self-priming two-stage centrifugal pump from a renowned enterprise, which has high efficiency and good reliability. Front Spraying Device: There is a pair of duckbill-shaped forward nozzles under the front of the cab, which can perform forward fan-shaped spraying and cover 3 lanes at a time. Middle Opposite Flushing: There is one conical nozzle on each side of the opposite flushing device under the tank body for two-way flushing. By loosening the two rotating sleeves at the nozzles, the nozzle angle can be adjusted arbitrarily. The front opposite flushing can wash 6 lanes at a time. Rear Sprinkling Device: The rear sprinkling device is arranged on the vertical water pipes on both sides of the rear platform. The upper part of the water pipe is a duckbill-shaped nozzle facing left and right sides, and the lower part is a circular nozzle. When the two rear sprinkling nozzles are turned on at the same time, the sprinkling width is not less than 14m. Water Cannon: The water cannon is an aluminum-made long-range water cannon, installed on the right side of the rear workbench. The water cannon can rotate 0° to 360°, and the cannon body can be operated to pitch up and down. By turning the adjustment sleeve at the front of the cannon body forward and backward, the spraying shape (columnar or conical) of the water flow can be adjusted and the water cannon can be closed. The water cannon is controlled by a manual ball valve, and the water cannon can be opened and closed arbitrarily during operation. The firing range of the water cannon is not less than 50m. |
| 4 | Operation Mode | The vehicle adopts the control mode of "electric control pneumatic valve/solenoid valve". When starting and stopping the operation, the opening and closing of all nozzles except the water cannon are controlled through the operation box. |
Superb Cleaning Effect, High-Efficiency Operation

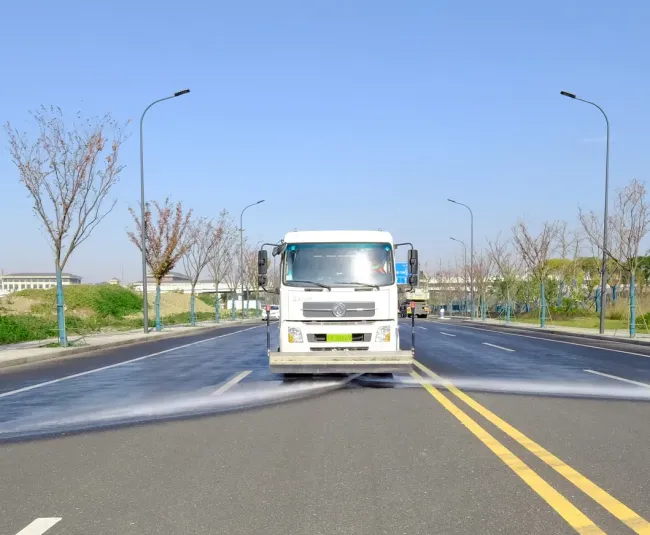

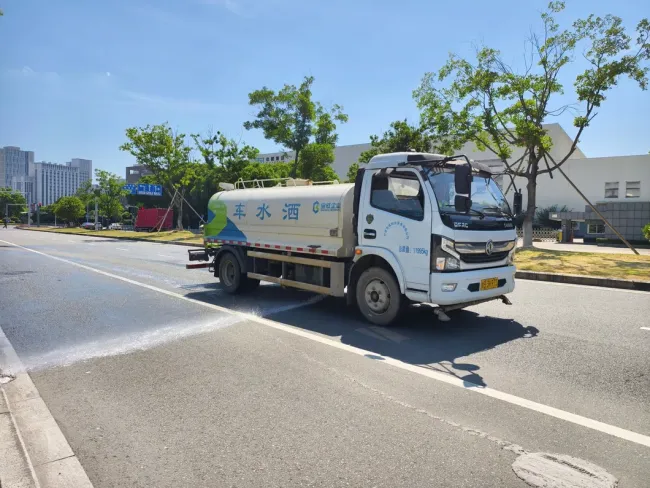

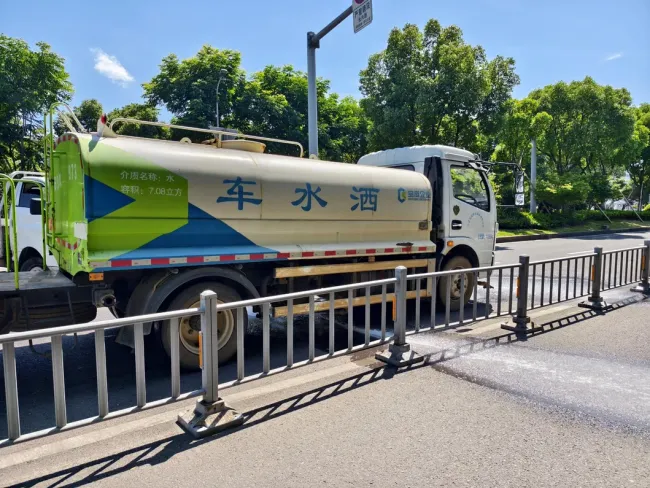

The water sprinkler truck is equipped with a powerful sprinkler pump and diverse sprinkling devices. The front flushing device can cover 6 lanes at once with strong impact force, effectively removing dust, mud, and stubborn stains on the road surface. The rear sprinkling device has a sprinkling width of over 14 meters, evenly moistening the road and achieving remarkable dust suppression results. The long-range water cannon has a firing range of more than 50 meters, which can easily handle tasks such as road flushing, greening irrigation, and emergency firefighting, greatly improving the efficiency of sanitation operations.
The water sprinkler truck is equipped with a powerful sprinkler pump and diverse sprinkling devices. The front flushing device can cover 6 lanes at once with strong impact force, effectively removing dust, mud, and stubborn stains on the road surface. The rear sprinkling device has a sprinkling width of over 14 meters, evenly moistening the road and achieving remarkable dust suppression results. The long-range water cannon has a firing range of more than 50 meters, which can easily handle tasks such as road flushing, greening irrigation, and emergency firefighting, greatly improving the efficiency of sanitation operations.
Intelligent and Convenient Operation, Easy to Control

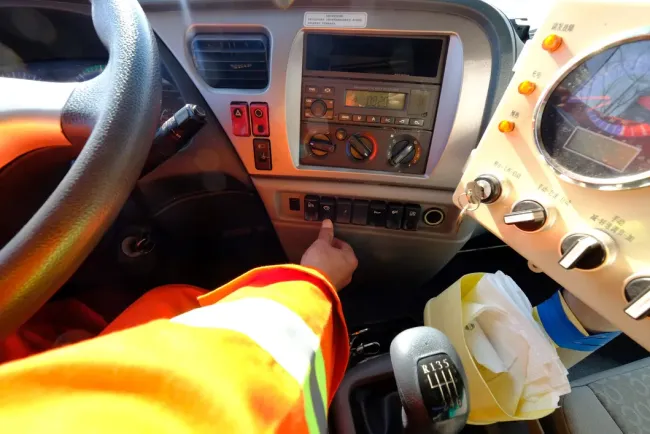

It adopts an intelligent control mode of "electric control pneumatic valve/solenoid valve" and is equipped with a simple operation panel. Drivers can quickly switch between different operation modes such as front flushing, rear sprinkling, and water cannon operation through buttons in the cab, without complex operation procedures. At the same time, the visual liquid level display and alarm system can provide real-time feedback on the water volume in the tank, making it convenient to replenish water in a timely manner and ensuring more worry-free operation.
It adopts an intelligent control mode of "electric control pneumatic valve/solenoid valve" and is equipped with a simple operation panel. Drivers can quickly switch between different operation modes such as front flushing, rear sprinkling, and water cannon operation through buttons in the cab, without complex operation procedures. At the same time, the visual liquid level display and alarm system can provide real-time feedback on the water volume in the tank, making it convenient to replenish water in a timely manner and ensuring more worry-free operation.
Reliable Quality Assurance, Stable and Durable
It selects second-class chassis from well-known brands and high-quality diesel engines, with strong load-bearing capacity and abundant power, ensuring the vehicle can drive stably under various complex road conditions. The water tank is optimized in design using finite element analysis, and has passed strict reliability tests and non-destructive flaw detection. Combined with the advanced one-time tank forming technology, it has excellent anti-leakage and anti-corrosion performance, a long service life, and reduces the occurrence of failures.
It selects second-class chassis from well-known brands and high-quality diesel engines, with strong load-bearing capacity and abundant power, ensuring the vehicle can drive stably under various complex road conditions. The water tank is optimized in design using finite element analysis, and has passed strict reliability tests and non-destructive flaw detection. Combined with the advanced one-time tank forming technology, it has excellent anti-leakage and anti-corrosion performance, a long service life, and reduces the occurrence of failures.
Simple Maintenance Design, Time and Labor Saving
The components of the vehicle are reasonably arranged. Key components such as sprinkler pumps and valves adopt a modular design, which is convenient for disassembly and installation, facilitating daily inspection and maintenance. Meanwhile, sufficient maintenance space is reserved, and regular maintenance and fault troubleshooting do not require complex tools or professional skills, effectively reducing maintenance costs and time costs.
The components of the vehicle are reasonably arranged. Key components such as sprinkler pumps and valves adopt a modular design, which is convenient for disassembly and installation, facilitating daily inspection and maintenance. Meanwhile, sufficient maintenance space is reserved, and regular maintenance and fault troubleshooting do not require complex tools or professional skills, effectively reducing maintenance costs and time costs.
Comprehensive Safety Protection, Safe Operation
The vehicle body is equipped with complete safety devices, including check valves, pressure limiting valves, etc., to ensure the stable pressure of the water circuit system and prevent potential safety hazards caused by liquid backflow. The side guardrail is made of a combination of aluminum alloy and high-quality carbon steel, which is sturdy, beautiful, and can effectively protect the safety of pedestrians. The electrical system has a short-circuit self-protection function. Combined with a reliable grounding design, it comprehensively ensures safe operation throughout the process.
The vehicle body is equipped with complete safety devices, including check valves, pressure limiting valves, etc., to ensure the stable pressure of the water circuit system and prevent potential safety hazards caused by liquid backflow. The side guardrail is made of a combination of aluminum alloy and high-quality carbon steel, which is sturdy, beautiful, and can effectively protect the safety of pedestrians. The electrical system has a short-circuit self-protection function. Combined with a reliable grounding design, it comprehensively ensures safe operation throughout the process.
Q1. What is your terms of payment?
T/T with 30% deposit, and 70% balance will be paid before delivery.We will show you photos of the products and packages before you paying the balance.
T/T with 30% deposit, and 70% balance will be paid before delivery.We will show you photos of the products and packages before you paying the balance.
Q2. What's your minimum quantity?
1 set.
Q3. What is your packing?
Naked packing, we transport our trailers by bulk cargo carrier, ro-ro or 40/45 HQ or land transportation.
Q4. How about delivery time?
Generally speaking, 30 workdays after we received 30% of contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
Why choose us?
1.The company is a core supplier of environmental sanitation products to governments at all levels.
2. Competitive Price and Best Services.
3. Work with many famous brands.
4.Strong production capacity.
5.Excellent exprience of after-sale service
5.Excellent exprience of after-sale service
If you are interested in our products, please feel free to contact me anytime! Welcome to hear from your inquiry!
