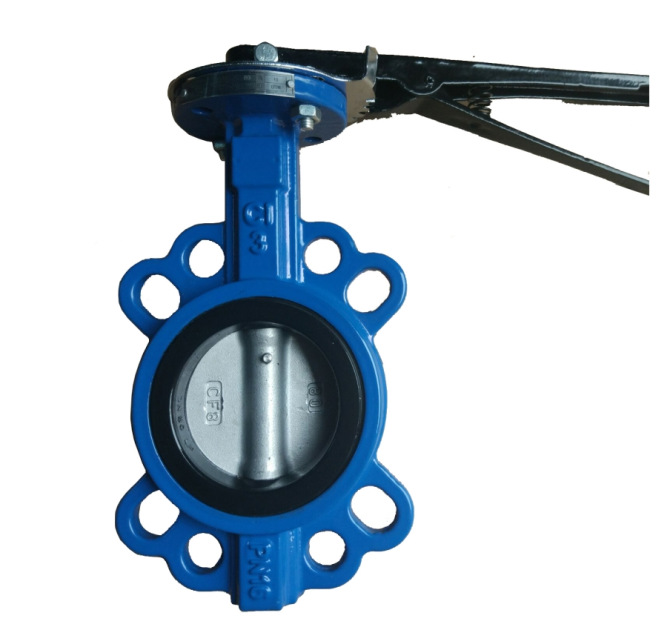

cast iron 3'' PN16 butterfly valve with pin

The quantities of pin depend on the manufacture standard of butterfly valves.

Specifications

1.Production Size:3''

2.Pressure:PN16

butterfly valve with pin Standard:

1.Design Standard:DIN 3354

2.Face to Face:DIN2501

3.Flange Standard:DIN3202

4.Testing Standard:EN12226

butterfly valve with pin Material of parts:

1.Body:GG25/GGG50

2.Stem:2Cr13/SS304/SS316/Carbon Steel

3.Disc:Ductile Iron,SS304,SS316

4.Gasket:NBR,PTFE,EPDM,Teflon

5.Seat:NBR,EPDM,PTFE,RPTFE

6.Packing:NBR,PTFE,EPDM,Teflon

7.Handle:ASTM A536 65-45-12/ malleable iron

Pls note:

Our factory manufacture various types of valves,including gate valves, globe valves, check valves, butterfly valves, ball valves and foot valves, if any inquiry for valves, pls don’t hesitate to contact Sophia via Email:sophiavalve(at)hbpvpt.com

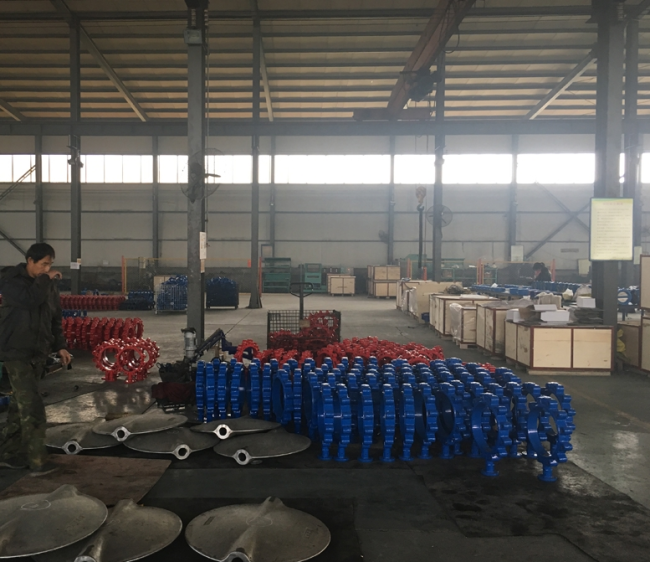

Product show
