DIN resilient seal cast iron PN10/16 butterfly valve

Butterfly valve is widely used in oil, gas, chemical industry, water treatment,cooling water system of the thermal power station.

According to the connection type, they are divided into flanged butterfly valves and wafer butterfly valves.

If you have related inquiry for butterfly valves, pls feel free to contact Sophia.

And welcome to visit our factory at any time you like.

DIN resilient seal cast iron PN10/16 butterfly valve range:

1.Production Size:1 1/2"~40".DN40~DN1000

2.Pressure:PN10,PN16

DIN resilient seal cast iron PN10/16 butterfly valve standard:

1.Design Standard:DIN 3354

2.Face to Face:DIN2501

3.Flange Standard:DIN3202

4.Testing Standard:EN12226

DIN resilient seal cast iron PN10/16 butterfly valve Material of parts:

1.Body:GG25/GGG50

2.Stem:2Cr13/SS304/SS316/Carbon Steel

3.Disc:Ductile Iron,SS304,SS316

4.Gasket:NBR,PTFE,EPDM,Teflon

5.Seat:NBR,EPDM,PTFE,RPTFE

6.Packing:NBR,PTFE,EPDM,Teflon

7.Handle:ASTM A536 65-45-12/ malleable iron

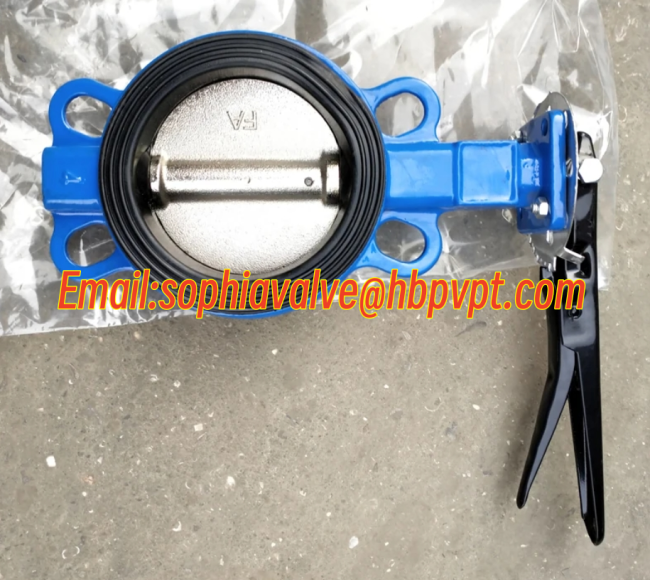

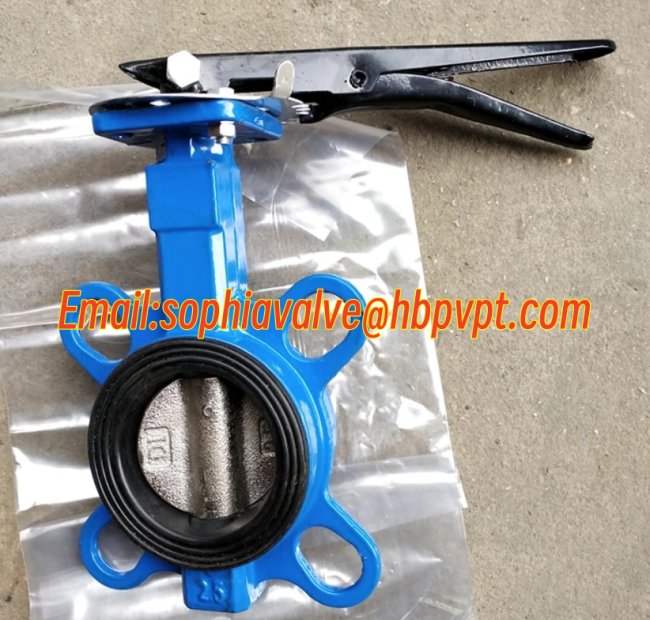

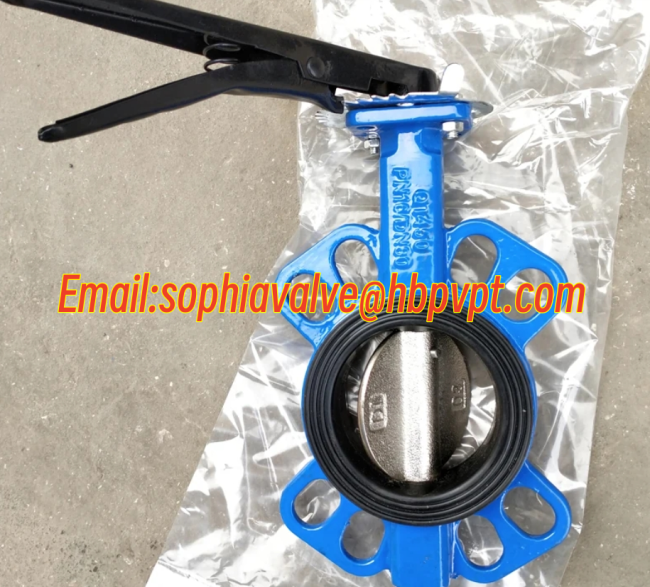

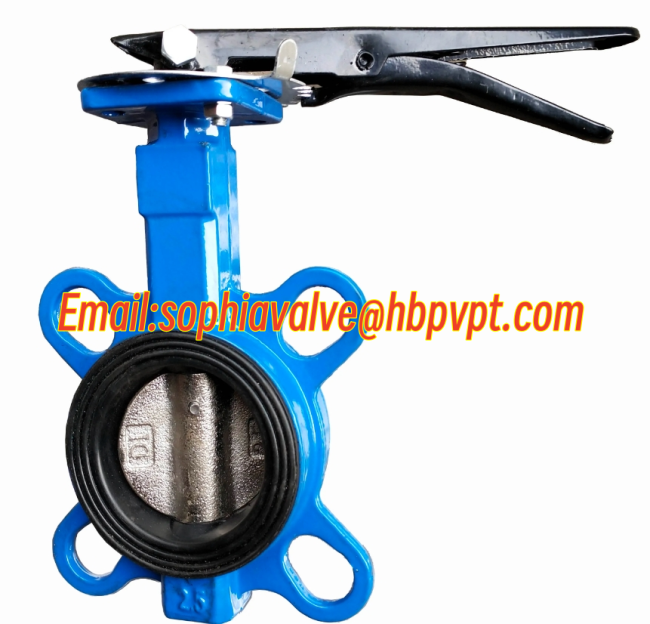

Product show
