1080P Car Surveillance Camera Monitoring Bus Wide Angle Infrared Camera
Bus interior high-definition monitoring 1080P night vision wide-angle infrared camera, car wide-angle lens

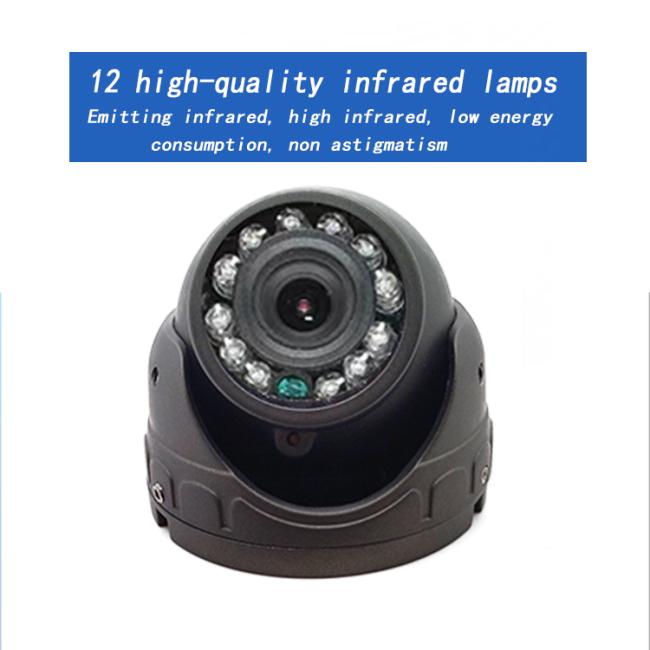

| 1/3CMOS 12 infrared LED wide angle shockproof anti-fog anti-interference high definition low light completely according to the car's circuit design) |
The in car camera is the core sensing device of ADAS (Advanced Driver Assistance System) . Currently global intelligent driving has ushered in a window of transition from L2 to L3/L4 and the number of cameras installed will increase from 3-8 to 8-12. According to CINNO Research the number of cameras installed in passenger cars in the Chinese market will exceed 100 million in 2025 and the compound annual growth rate from 2021 to 2025 will reach CAGR 21%.
At present in car cameras are mainly divided into front view surround view rear view side view and built - in cameras .
The front view camera is mainly installed on the front windshield usually equipped with 1 - 4 monocular/binocular cameras used to achieve functions such as front vehicle collision warning (FCW) lane departure warning (LDW) traffic sign recognition (TSR) pedestrian collision warning (PCW) etc .
| signal pattern | NTSC PAL |
| camera lens | 2. 1 2. 8 3. 6 |
| pixel | 200/1080P 130/960P |
| Low illumination | 0.0001 Iux-O Lux Infrared start |
| synchronous mode | Internal synchronization |
| Signal to Noise Ratio | >=46dB |
| dynamic range | 72d8(HDR) |
| Electronic shutter | 1/60 (PAL. 1/50)-1/100000s |
| automatic balancing | open (ON/OFF) |
| gain control | open (ON/OFF) |
| Back light supplement | open(HLC High brightness/BLC) |
| Auto Iris | image(Video/DC) |
| power supply | DC12V90mA(When infrared is turned on250mA) |
| weight | 0. 00g |
| Shell material | Aluminum alloy/stainless steel |
| interface | AV/USB/BNC/Aircraft Head interface |
