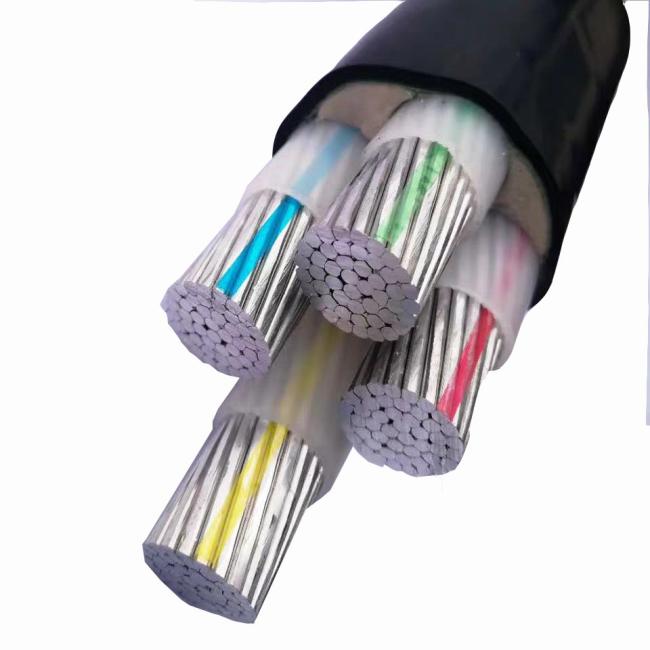

Insulated XLPE Cable Wire 4 Core 35mm 50mm 70mm 95mm 120mm 185mm 240mm Aluminium Core
Price:
$0.25/meters >=500 meters
MOQ:
500 meters
Delivery Time:
Negotiable
Brand:
Yuanhui
Product Description
Product Description
Applications:
PVC insulated power cable is suitable for laying fixed in power transmission and distribution lines with A.C. 50HZ and rated voltage of 0.6/1kV.
XLPE insulated power cable has a number of advantages compared with paper insulated and PVC insulated cables. XLPE cable has high electric property, mechanical property, heat aging performance, environmental stress crack resistance, chemical corrosion resistance, and it also has simple structure, convenient operation and it is not restricted by laying in large difference of level. It can be applied in high temperature of 90 degree for a long time.
1. Max temperature for Long-time working:≤90°C
2. Installing temperature: ≥0°C
3. Max short-circuit (Not more than5 Sec) temperature: 250°C
4. Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables
PVC insulated power cable is suitable for laying fixed in power transmission and distribution lines with A.C. 50HZ and rated voltage of 0.6/1kV.
XLPE insulated power cable has a number of advantages compared with paper insulated and PVC insulated cables. XLPE cable has high electric property, mechanical property, heat aging performance, environmental stress crack resistance, chemical corrosion resistance, and it also has simple structure, convenient operation and it is not restricted by laying in large difference of level. It can be applied in high temperature of 90 degree for a long time.
1. Max temperature for Long-time working:≤90°C
2. Installing temperature: ≥0°C
3. Max short-circuit (Not more than5 Sec) temperature: 250°C
4. Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables
Specification

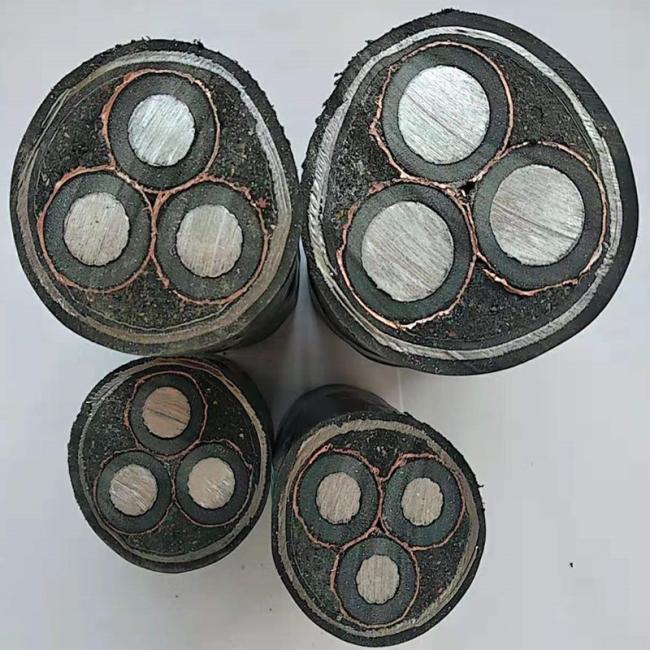

The detail technical data voltage armoured power cable as below for reference,any customized is available.
Nom.cross section mm² | Nom. thickness of insulation mm | Nom. thickness of steel tape mm | Nom. thickness of sheath mm | Cable weight km/kg | Max. D.c, resistance of conductor at 20℃ Ω/km |
3X2.5 | 0.7 | 1.8 | 11.3 | 111.4 | 12.1 |
3X4 | 0.7 | 1.8 | 12.2 | 135.8 | 7.41 |
3X6 | 0.7 | 1.8 | 13.4 | 167 | 4.61 |
3X10 | 0.7 | 1.8 | 16.1 | 238.3 | 3.08 |
3X16 | 0.7 | 1.8 | 18.4 | 318.2 | 1.91 |
3X25 | 0.9 | 1.8 | 22.1 | 463.7 | 1.2 |
3X35 | 0.9 | 1.8 | 24.6 | 584 | 0.868 |
3X50 | 1 | 1.8 | 27.9 | 752.2 | 0.641 |
3X70 | 1.1 | 1.9 | 32.8 | 1041 | 0.443 |
3X95 | 1.1 | 2 | 37.1 | 1359 | 0.32 |
3X120 | 1.2 | 2.1 | 41.2 | 1684 | 0.253 |
3X150 | 1.4 | 2.3 | 45.8 | 2084 | 0.206 |
3X185 | 1.6 | 2.4 | 50.9 | 2561 | 0.164 |
3X240 | 1.7 | 2.6 | 57.4 | 3284 | 0.125 |
3X300 | 1.8 | 2.8 | 63.4 | 4049 | 0.1 |
Packing & Delivery
PACKAGING FLOW
Company Profile
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
