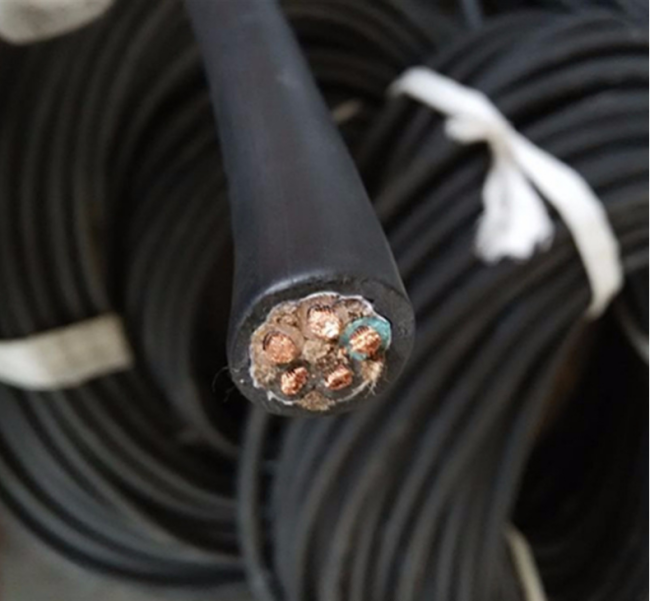

4 Core 1.5MM 2.5MM 4MM 6MM LOW VOLTAGE PVC Insulated and Sheathed Electrical Power Wire
Price:
$15.00/meters 500-999 meters
MOQ:
500 meters
Delivery Time:
Negotiable
Brand:
Yuanhui
Product Description
Products Description
Application:
1. RVV is suitable for the laying of power units, fixed wiring, household appliances, instruments and telecommunications equipment
with rated voltages of 450/750V and below
2. RVV can be used in places with high safety, environmental protection and flame retardant requirements. Such as high-rise
1. RVV is suitable for the laying of power units, fixed wiring, household appliances, instruments and telecommunications equipment
with rated voltages of 450/750V and below
2. RVV can be used in places with high safety, environmental protection and flame retardant requirements. Such as high-rise
Specification
Voltage V | Nominal Section mm² | Toplimit of overall diameter mm | Maximum DC Resistance 20℃ | Minimum insulation resistance 70℃ | Recommended value of carrying capacity A | Reference weight KG/KM |
300/300 | 2 X 0.5 | 5.9 | 3.9 | 0.012 | 10 | 37 |
2 X 0.75 | 6.3 | 26.0 | 0.01 | 13 | 47 | |
3 X 0.5 | 6.3 | 39.0 | 0.012 | 8 | 44 | |
3 X 0.75 | 6.7 | 26.0 | 0.01 | 10 | 58 | |
2 X 0.75 | 7.2 | 26.0 | 0.011 | 13 | 58 | |
450/750 | 2 X 1.0 | 7.5 | 19.5 | 0.01 | 16 | 66 |
2 X 1.5 | 8.6 | 13.30 | 0.01 | 20 | 89 | |
2 X 2.5 | 10.6 | 7.98 | 0.009 | 27 | 137 | |
2 X 4 | 12.4 | 4.95 | 0.007 | 38 | 205 | |
2 X 6 | 12.4 | 3.30 | 0.006 | 50 | 280 | |
3 X 0.75 | 7.6 | 26.00 | 0.011 | 9 | 70 | |
3 X 1.0 | 8.0 | 19.50 | 0.01 | 11 | 80 | |
3 X 1.5 | 9.4 | 13.30 | 0.01 | 12 | 112 | |
3 X 2.5 | 11.4 | 7.98 | 0.009 | 21 | 172 | |
3 X 4 | 11.4 | 4.950 | 0.007 | 27 | 310 | |
3 X 6 | 14.0 | 3.30 | 0.006 | 35 | 425 | |
4 X 0.75 | 8.3 | 26.0 | 0.011 | 10 | 103 | |
4 X 1.0 | 9.0 | 19.50 | 0.01 | 12 | 119 | |
4 X 1.5 | 10.5 | 13.30 | 0.01 | 13 | 172 | |
4 X 2.5 | 12.5 | 7.98 | 0.009 | 22 | 257 | |
4 X 4 | 14.6 | 4.95 | 0.007 | 27 | 386 | |
4 X 6 | 16.0 | 3.30 | 0.006 | 35 | 518 |
Packing & Delivery
Our Delivery time need 5~10 days after received your payment. Please confirm all the details information so we can arrange your
order as soon as possible!
order as soon as possible!
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
