SC20-L Wired Laser 1D Barcode Scanner with 100 Scans Per Second 0.127mm Resolution and IP52 Sealing Rating
Price:
13-20usd
MOQ:
10PCS
Delivery Time:
5 working days
Brand:
SR
Product Description
SC20-L Wired Laser 1D Barcode Scanner
The SC20-L Wired Laser is a high-performance handheld 1D barcode scanner featuring precise laser scanning technology. A red laser beam is emitted, reflected, and filtered to eliminate stray light before striking a photodiode to generate an optoelectronic signal. This signal is amplified, shaped, and decoded into recognizable information for transmission to connected devices.
Key Features
- Durable ABS+PC construction
- Effortless continuous scanning operation
- Supports multiple languages and barcode types
- Multiple scanning modes including automatic and proximity
- Audible and visual scanning confirmation
Technical Specifications
| Item | Parameter |
|---|---|
| Model | SC20-L |
| Scanning element type | Laser |
| Scanning speed | 100 times per second |
| Light source | Laser |
| Scan mode | Button-activated, proximity, automatic, continuous |
| Minimum resolution | 0.127mm(5mil) @Code 39, PCS=90% |
| Operating temperature | 0℃-50℃ |
| Storage temperature | -20℃~+70℃ |
| Input voltage | 5VDC±10% |
| Interface Support | USB, USB-COM, RS-232 (Optional) |
| Dimensions | 159mm*65.5mm*85mm (L*W*H) |
| Weight | Approx. 150g (Excluding packaging) |
| Sealing rating | IP52 |
| Drop height | 1.5m |

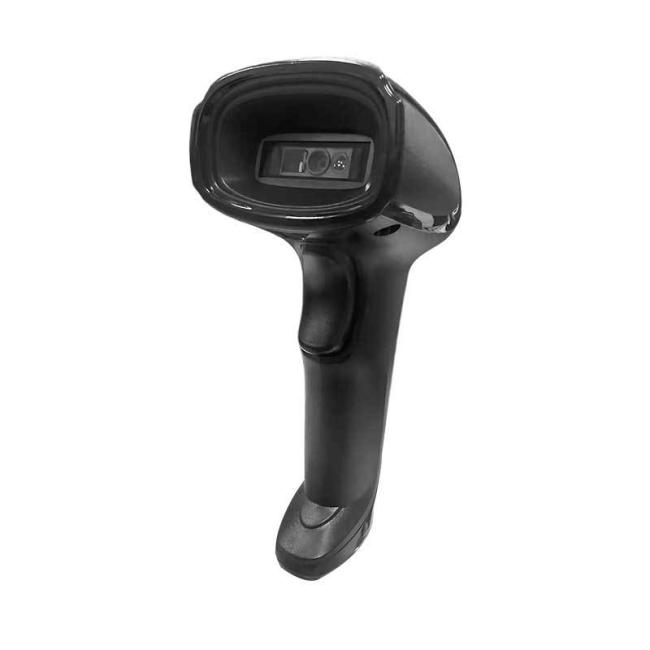

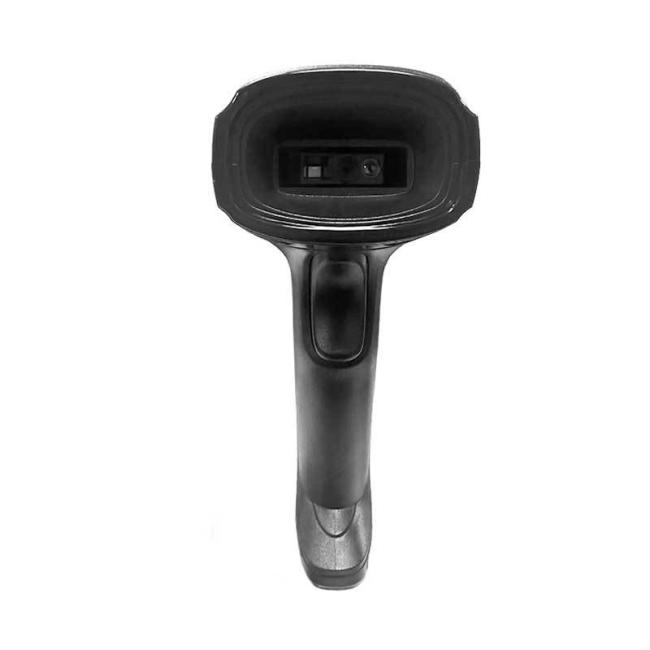

Product Images
