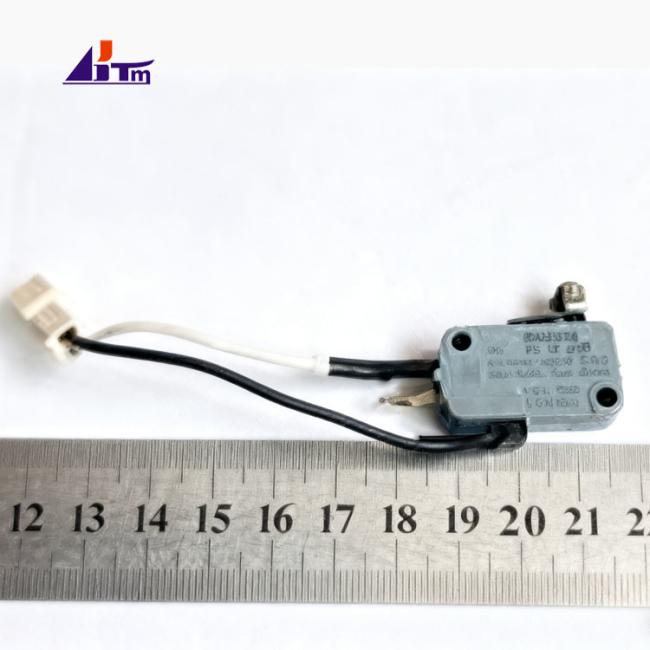

S3200000224 Micro Switch Hyosung CDU10 ATM Part HCDU Main Body 7310000709-06
The S3200000224 Micro Switch is a precision electronic-mechanical component engineered exclusively for Hyosung CDU10 ATM dispenser modules, specifically designed to integrate with the S7310000709 HCDU Main Body. As a critical "sensing and control" part of the ATM’s cash handling mechanism, this micro switch detects the position of internal HCDU components (e.g., cash stacks, lever movements) and triggers electrical signals to synchronize dispensing operations. Crafted to meet Hyosung’s OEM standards, it ensures accurate signal transmission, reliable component coordination, and minimal downtime for high-volume ATMs in banks, retail stores, and financial facilities.
| Part Number | S3200000224, 3200000224, 7310000709-06 |
|---|---|
| Product Name | Micro Switch |
| Brand | Hyosung |
| Material | Plastic+Metal |
| Compatible Module | Hyosung HCDU (CDU dispenser) Main Body Assy |
| Type | ATM-specific micro switch (momentary contact, normally open/closed per OEM design) |
| Warranty | 3 Months |
This micro switch is essential for:
- Repairing unresponsive or inaccurate HCDU systems in Hyosung CDU10 ATMs (e.g., ATMs failing to detect cash stacks, random dispensing errors) caused by worn or faulty micro switches.
- Routine maintenance of Hyosung CDU10 ATMs in banks, credit unions, and financial institutions—proactively replacing aging micro switches to avoid sudden breakdowns.
- Emergency repairs by ATM service providers for retail, airport, or convenience store ATMs (equipped with S7310000709 HCDU) experiencing signal transmission failures.
- Spare parts inventory management for fleet managers overseeing multiple Hyosung CDU10 ATMs, ensuring quick access to critical components and reducing service disruptions.
Tiger Spare Parts Co., Ltd. specializes in the sales and manufacture of ATM and banking equipment spare parts. We can supply new original spare parts and manufacture most of the ATM and banking equipment parts, mainly covering Diebold Nixdorf (DN), NCR, Wincor, Hyosung, Glory, NMD, GRG, Fujitsu, Hitachi, OKI, MEI, Datacard, G&D, etc., and has gained a good reputation in the industry.
Hyosung CDU10 micro switch, S3200000224, S7310000709 HCDU part, Hyosung ATM micro switch, HCDU position sensor, CDU10 ATM repair part, Hyosung HCDU electrical component, ATM micro switch replacement.
| Part Number | Part Number | Part Number |
|---|---|---|
| S3200000224 | S7310000731 | S4590000827 |
| S4500000767 | S7310000729 | S4820000275 |
| S4400000096 | S7310000723 | S7310000715 5640000127 |
| S4350000459 | S4360000551 | S3200000283 |
| S5640000128 | S7310000712 | S3300000030 |
| S7760000069 | S7310000718 | S3200001125 |
| S7310000726 4500000609 | S7310000724 | S3200000271 |
| S3300000029 | S7310000722 | S7430000297 |
| S21683911 | S4520000325 | S7310000728 |
| S7310000725 | S7760000066 | 431000205 |
| S5639000029 | S3200000269 | S7310000730 |
| S7430000281 | S4360000538 | S7310000717 |
| S5639000024 | S4370001688 | S7310000716 |
