484-0106869 4840106869 NCR SDM2 Escrow Assembly ATM Parts
Price:
Contact us
MOQ:
1 unit
Delivery Time:
It depends on the quantity of your order
Brand:
NCR
Product Description

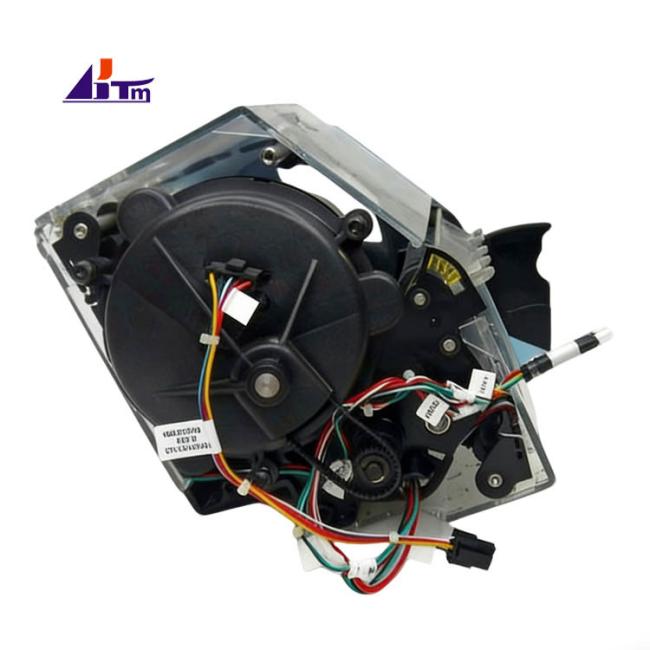

NCR SDM2 Escrow Assembly (484-0106869)
The NCR SDM2 Escrow Assembly is a critical core component designed for the NCR SDM2 (Smart Deposit Module 2) – a high-performance cash deposit unit integrated into a wide range of NCR self-service devices, including ATMs and cash recyclers, to deliver secure, automated cash deposit solutions.
Functioning as the module's temporary holding hub, the Escrow assembly retains deposited banknotes in a secure buffer zone before they undergo full validation and processing. When users insert cash into the self-service machine, the assembly instantly captures and safely stores the notes, initiating the subsequent verification workflow.
Composed of precision-engineered parts – including advanced sensors, durable transport belts, and robust mechanical components – the Escrow assembly ensures seamless, damage-free handling of banknotes at all stages. It enables comprehensive validation, counterfeit authentication, and denomination identification, ultimately directing verified notes to storage or returning unqualified ones to the user with high accuracy.
Product Specifications
| Part Numbers | 484-0106869, 4840106869 |
|---|---|
| Product Name | NCR SDM2 Escrow Assembly |
| Compatible Brand | NCR |
| Application | NCR SDM2 Dispenser |
| Product Types | New |
| Quality Assurance | Pre-shipment testing by certified engineers |
| Warranty Period | 90 days (all products) |
| Customization | Available for specific requirements |
| Supply Scope | Full assembly, core components, replacement accessories |
| Origin | Factory-direct supply from trusted manufacturers |
NCR SDM2 Escrow Components & Accessories
We provide a complete range of parts to support the NCR SDM2 Escrow Assembly, covering every critical part of the cash handling process:
| Part Number | Alternate Part Number | Description |
|---|---|---|
| 484-0106789 | 4840106789 | BELT GUARD |
| 484-0106394 | 4840106394 | DRIVE JACK GEAR, 23 teeth |
| 484-0106395 | 4840106395 | GEAR - TAPE SHAFT, 20/21 teeth |
| 484-0104919 | 4840104919 | CLIP-ON FLANGE |
| 006-1068762 | 61068762 | BELT - TIMING 113T 6W |
| 484-0106396 | 4840106396 | PULLEY - ESCROW SLIP CLUTCH, 73 teeth |
| 006-1070737 | 61070737 | bearing |
| 484-0106405 | 4840106405 | TRACK TOP |
| 484-0068268 | 4840068268 | SPRING - IDLER LIGHT |
| 484-0102437 | 4840102437 | COVER - ESCROW TOP |
| 484-0106407 | 4840106407 | GUIDE - ESCROW TOP |
| 484-0106416 | 4840106416 | COVER - ESCROW BOTTOM |
| 484-0106412 | 4840106412 | TS18 HARNESS TROUGH |
| 484-0105127 | 4840105127 | Board Assembly - Single Sensor |
| 484-0106456 | 4840106456 | TIRE |
| 484-0102440 | 4840102440 | COVER - REAR ESCROW |
| 484-0106788 | 4840106788 | HOLDER - TAPE SENSOR |
| 484-0106466 | 4840106466 | HARNESS - TRACK REAR |
| 484-0102703 | 4840102703 | ESCROW FIXED TAPE GUIDE |
| 484-0101710 | 4840101710 | SPOOL - ESCROW TAPE IDLER |
| 484-0105268 | 4840105268 | roller shaft assembly, grey |
| 006-1068799 | 61068799 | SLOTTED OPTICAL SWITCH, SIDE MOUNT |
| 484-0102439 | 4840102439 | BRACKET - DRUM FULL SENSOR |
| 484-0103183 | 4840103183 | Harness - Limit Switch |
| 484-0106382 | 4840106382 | cable harness |
| 484-0106403 | 4840106403 | TRACK BOTTOM |
| 484-0105130 | 4840105130 | Board Assembly - Single LED |
| 484-0106502 | 4840106502 | ASSEMBLY - ESCROW SPOOL W/ TAPE, LEADER IN, black |
| 484-0106501 | 4840106501 | ASSEMBLY - ESCROW SPOOL W/ TAPE, LEADER OUT, white |
| 006-1068730 | 61068730 | MAGNETIC CLUTCH,445-0761208484-0106869-30 |
| 484-0102446 | 4840102446 | GEAR - TAPE SPOOL SHAFT, 16 teeth |
| 484-0101708 | 4840101708 | GEAR - ESCROW TAPE DRIVE SHAF, 28 teeth |
| 484-0106404 | 4840106404 | PADDLE |
| 484-0106406 | 4840106406 | SPOOL - MAIN |
| 484-0106465 | 4840106465 | SPRING - ESCROW PADDLE TORSION |
| 484-0106413 | 4840106413 | BEARING HOLDER - ESCROW DRUM,98mm |
| 484-0106410 | 4840106410 | TAPE SPOOL SHAFT,135.5mm |
| 484-0102445 | 4840102445 | CLIP - ESCROW TAPE |
| 484-0106414 | 4840106414 | DRUM - ESCROW DOCUMENT |
| 484-0102432 | 4840102432 | MOUNT - ESCROW MOTOR |
| 484-0101723 | 4840101723 | PULLEY - ESCROW TAPE DRIVE, 26 teeh |
| 484-0067146 | 4840067146 | ASSEMBLY - INFEED MOTOR_GEAR |
| 006-1068990 | 61068990 | MOTOR-DC 24V 35.8 OD |
| 484-0066683 | 4840066683 | GEAR - 15T 0_5 MODULE |
| 484-0106103 | 4840106103 | Harness - Large DC Motor |
| 484-0101717 | 4840101717 | GEAR PULLEY, 19-72 teeth |
| 006-1068729 | 61068729 | bearing |
| 484-0102922 | 4840102922 | ESCROW MOUNTING POST |
| 484-0091592 | 4840091592 | UPPORT BUSHING - DIVERTOR SHAFT |
| 484-0099297 | 4840099297 | LABEL - MODULE ID "H" |
| 445-0774920 | 4450774920 | PLATE B - ESCROW SIDE |
| 484-0101713 | 4840101713 | GEAR - ESCROW RING, 60 teeth |
| 484-0102447 | 4840102447 | PLATE A - ESCROW SIDE |
| 484-0102450 | 4840102450 | SHAFT - TAPE SPOOL |
| 484-0102451 | 4840102451 | SHAFT - TAPE SPOOL DRIVE |
| 484-0106409 | 4840106409 | ESCROW DRIVE - JACK SHAFT, 27.25mm |
| 484-0106401 | 4840106401 | TS18 LOWER MOUNT |
| 484-0106798 | 4840106798 | ASSEMBLY - TAPE SPOOL SHAFT |
| 484-0106801 | 4840106801 | ASSEMBLY - TAPE SPOOL SHAFT LEADER IN |
| 484-0106807 | 4840106807 | ASSEMBLY - ESCROW DOCUMENT GUIDE |
| 445-0774973 | 4450774973 | TAPE SPOOL SHAFT LEADER OUT |
| 445-0774974 | 4450774974 | TAPE SPOOL SHAFT LEADER IN |
