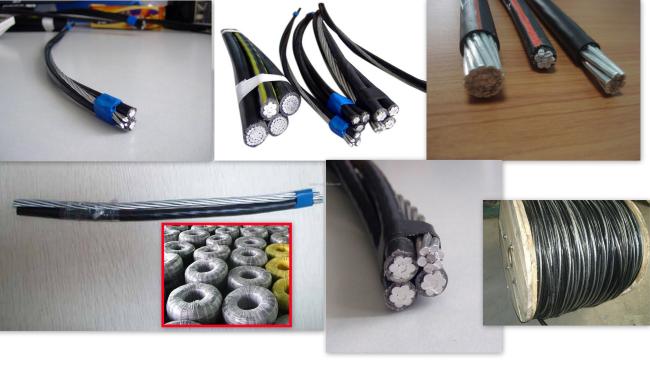

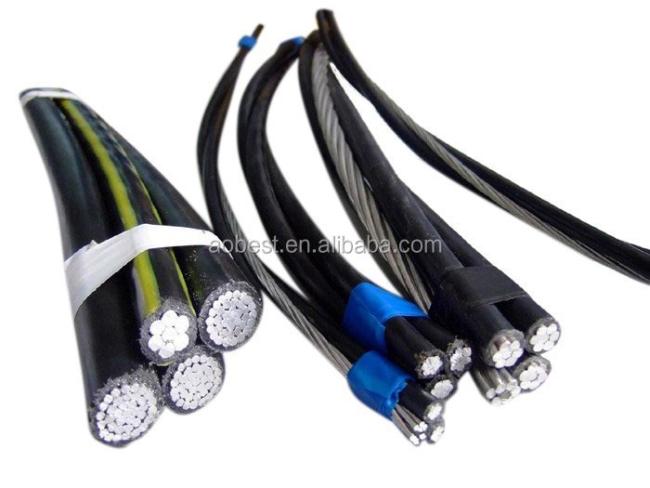

2021 year hot selling main cable Aluminum Triplex URD Burial Secondary 600V Cable
Specification for Aluminium Conductor URD Cable, 2020year hot selling main cable Aluminum Triplex URD Burial Secondary 600V Cable
URD cable
1.Application:
used for secondary distribution and underground service either direct burial or in ducts with fully insulated.
2.Construction:
Concentric strand or compressed 1350-H19 conductor,polythylene or crosslinked polyethylene insulation.
3.URD cable covers mainly 3 types of the service drop cable:Duplex service drop cable.triplex service drop cable,quadruplex service drop
4.Detailed specification,
Secondary UD Quadruplex 600V
Aluminium Conductor Cross-linked polyethylene(XLPE) insulation,600V Three phase with neutral
| Code name | Phase conductor | Neutral | Diameter | Approx. Weight | Allowable Ampacities Raceway (cable in ducts)
| |||||
| Size | Number Of wires | Insulation Thickness | Size | Number Of wires | Insulation Thickness | Single Phase conductor | Complete cable | |||
| AWG or kcmil | mm | AWG | mm | mm | Kg/km | |||||
| QUADRUPLEXED WITH TRIPLE SOLID YELLOW STRIPES NEUTRAL | ||||||||||
| Tulsa | 4 | 7 | 1.52 | 4 | 7 | 1.52 | 8.7 | 21.1 | 385 | 85 |
| Dyke | 2 | 7 | 1.52 | 4 | 7 | 1.52 | 10.2 | 24.7 | 518 | 110 |
| Wittenberg | 2 | 7 | 1.52 | 2 | 7 | 1.52 | 10.2 | 24.7 | 562 | 110 |
| Notre Dame | 1/0 | 19 | 2.03 | 2 | 7 | 1.52 | 13.2 | 32 | 810 | 150 |
| Purdue | 1/0 | 19 | 2.03 | 1/0 | 19 | 2.03 | 13.2 | 32 | 892 | 150 |
| Syracuse | 2/0 | 19 | 2.03 | 1 | 19 | 2.03 | 14.3 | 34.6 | 998 | 165 |
