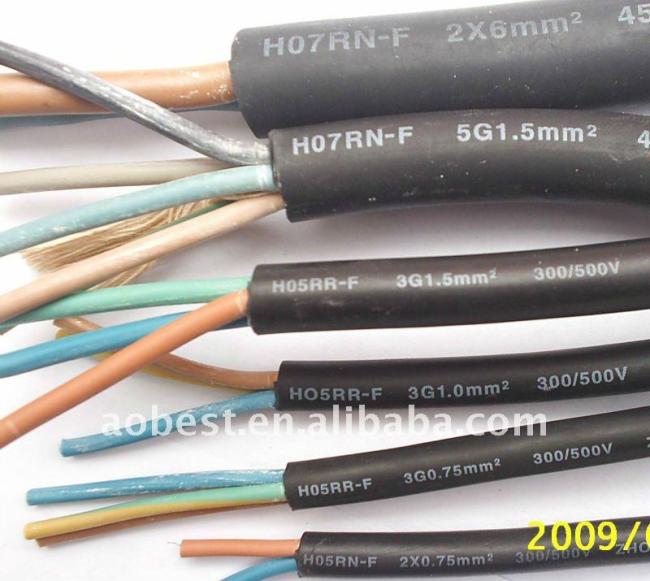

Top- H07RN-F Stranded Rubber Insulated Cable for Heating Applications in South America

 The rubber cable  are flexible and can be used in the oil proof ,

  made comple with   national standards and have passed the CCC.

1.Applications

 Mobile appliances, lighting, electrical equipment cable boxes

  Mining, construction, shipyards, oil,steel,industry,

  electrical equipment in construction  field work

2.Model type:

 YZ YZW :Middle modle rubber sheath flexible cable

               used for various domestic appliance portable equipment and

               moving machinery in oil or damp environment.

 YC YCW :Heavy modle rubber sheath flexible cable which can bear larger

               machenical force effect.

3.Rated voltage

    YZ 300V/500V

    YC 450V/750V

4.Specifications

    2,  3 , 3+1,  3+2  ,and so on .We can also customize electrical wire and

     cable as your request.

    you can choose line core number of conductor or cross section of conductor

     as well as the insulation and sheath material.

 5.  long-term allowable working temperature does not exceed 65 degrees
6. Main Technical Performance:
    Insulated core insulation resistance between the conversion to a

     temperature of 20 , not less than 50MΩ/KM.
     Between the cable core insulation should withstand voltage test AC

     50Hz2000V 5 min, without breakdown.
