Customized 3 Axles 40ft 45ft Red Curtain Side Semi Trailer with Max Payload of 40tons
Price:
$16,000.00/units 1-1 units
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
WOSHENG
Product Description
Products Description
Overview
Video Presentation
Specification

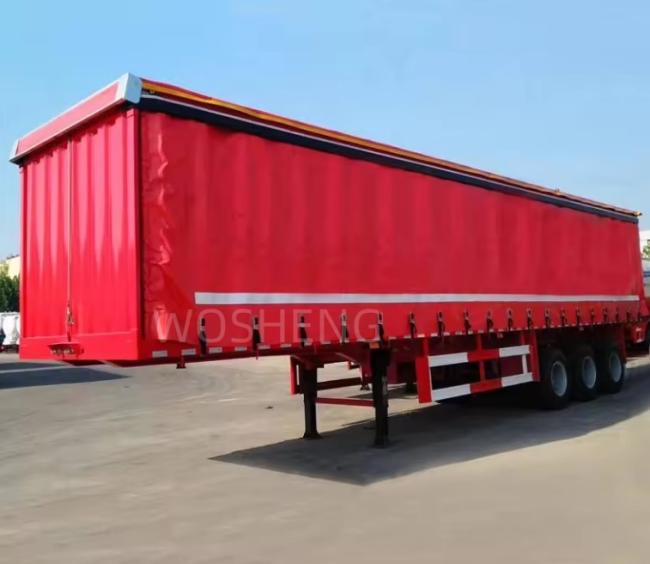

3 Axles side curtain semi trailer
The chassis, pillars, beams, and curtains form the main body of the side curtains. The curtains on both sides can be quickly opened, or single side curtains can be selected, making the loading and unloading of goods very convenient.
Side curtain trailers play a huge advantage in six transportation fields, including multi-modal transportation, household
appliances, beverages, paper rolls, automotive parts, panels, and packaged goods.
Side curtain trailers play a huge advantage in six transportation fields, including multi-modal transportation, household
appliances, beverages, paper rolls, automotive parts, panels, and packaged goods.
Trailer Model | 3 Axle Curtain Slider Semi Trailer |
Overall Dimension (Lx W x H)(mm) | 13900*2500*4000 (customizable) |
Tare Weight(KG) | 7000 |
Loading Weight( KG) | 40000 |
Total Weight(KG) | 50000 |
Axle Brand | 13Ton Axle FuWa Brand |
Axle Number | Three |
Wheelbase(mm) | 7450+1310+1310 |
Suspension system | Mechanical Suspension |
Steel Spring | 10/10/10 leaf spring suspension |
The material of Main beam | The height of the beam is 500mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm. |
Side Beam | 18mm |
Platform plate | 3mm Diamond plate |
Curtain Height | 2000mm |
Slider | Manual operation |
Tire Type and quantity | 11.00r20 12r22.5 315 385 13units brand optional |
Traction Pin | 50(2")/#90(3.5") |
Spare Wheel Bracket | 1 pieces |
Tool Box | 1 Standard |
Landing Gear | 28ton |
Brake system | Dual Line braking system, WEBCO valve, with ABS |
Brake air chamber | Six big chamber |
Electrical system | 1. Voltage: 24v |
2. Receptacle: 7 ways (7 wire harness) | |
Side Guard | Tail lamp with turn signal, brake light & reflector, side lamp etc.One set 6-core standard Cable. Accept customization. |
Painting | Color as customer’s requirement |
Packing | Unpacked, Polish with wax before shipping |
Delivery way | Transfer to Qingdao,Tianjin or Lianyungang Port, and carry by ro-ro ship or bulk ship, the freight cost depends on the volume. |
