Customizable 3 Axles 40ft 45ft Curtain Side Tarpaulin Semi Trailer for from Wosheng
Price:
$9,800.00/units 1-1 units
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
WOSHENG
Product Description
Products Description

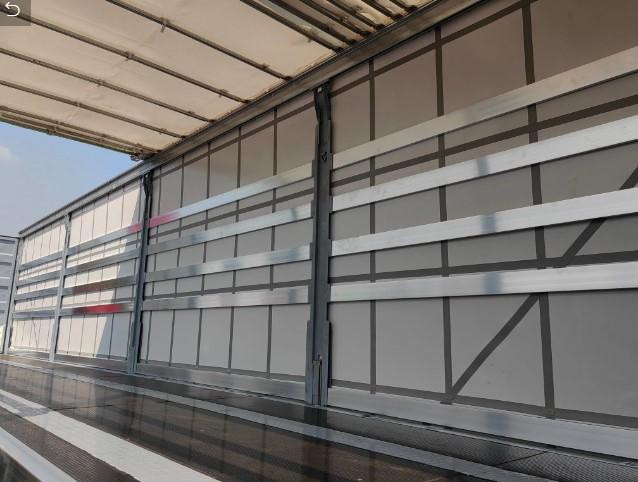

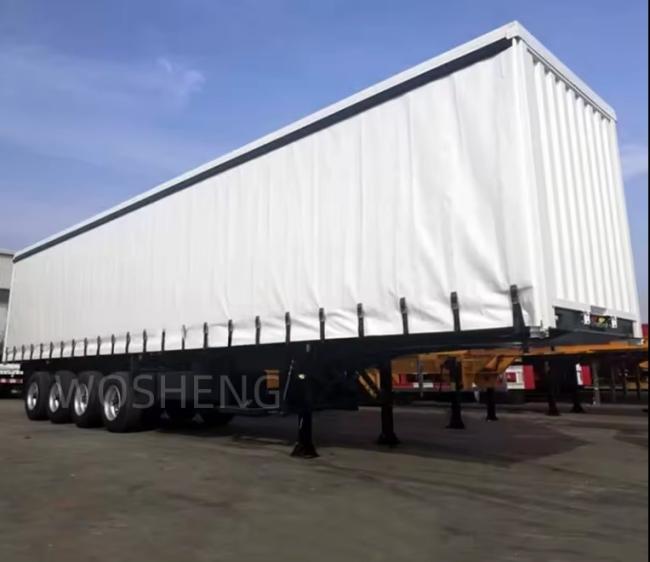

Curtain Side Semi Trailer
Side curtain trailer has great advantages in six transportation fields such as multi-modal transport, household appliances, beverages, paper rolls, auto parts, plates, and packaged goods. The chassis, the column, the beam, and the curtain form the main body of the side curtain, and the curtains on b oth sides can be quickly opened, and the loading and unloading of the goods are very convenient.
Specification
Trailer Model | 3 Axle Curtain Slider Semi Trailer |
Overall Dimension (Lx W x H)(mm) | 13900*2500*4000 (customizable) |
Tare Weight(KG) | 7000 |
Loading Weight( KG) | 40000 |
Total Weight(KG) | 50000 |
Axle Brand | 13Ton Axle FuWa Brand |
Axle Number | Three |
Wheelbase(mm) | 7450+1310+1310 |
Suspension system | Mechanical Suspension |
Steel Spring | 10/10/10 leaf spring suspension |
The material of Main beam | The height of the beam is 500mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm. |
Side Beam | 18mm |
Platform plate | 3mm Diamond plate |
Curtain Height | 2000mm |
Slider | Manual operation |
Tire Type and quantity | 11.00r20 12r22.5 315 385 13units brand optional |
Traction Pin | 50(2")/#90(3.5") |
Spare Wheel Bracket | 1 pieces |
Tool Box | 1 Standard |
Landing Gear | 28ton |
Brake system | Dual Line braking system, WEBCO valve, with ABS |
Brake air chamber | Six big chamber |
Electrical system | 1. Voltage: 24v |
2. Receptacle: 7 ways (7 wire harness) | |
Side Guard | Tail lamp with turn signal, brake light & reflector, side lamp etc.One set 6-core standard Cable. Accept customization. |
Painting | Color as customer’s requirement |
Packing | Unpacked, Polish with wax before shipping |
Delivery way | Transfer to Qingdao,Tianjin or Lianyungang Port, and carry by ro-ro ship or bulk ship, the freight cost depends on the volume. |
Details Images
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
abrasion.Meanwhile,Easy to disassemble and maintain.
Axle
BPW/FUWA/LEAO Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole
Axle Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.
Featured Tire
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance
Brake System
T30/30 Spring brake chamber. WABCO valve,
ABS/EBS system optional. dual line brake pipe.
TWIST LOCK
Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.
Landing Gear
The warranty period of Chinese brand/JOST landing
gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for
service from -30°C to 120°C.
Company Profile
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used
semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is
Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production
experience in the trailer industry. Please believe that our professional technology and manufacturing
experience can help your transportation be safer and efficient. we can provide high quality products
and competitive prices.
Factory
Our factory commit to strict quality
control and thoughtful customer
service, our experienced staff can
discuss your requirements at any time
to ensure your full satisfaction. We
not only want to be perfect in
appearance, but also pursue the
delicacy of detail. We have advanced
modern equipment, strong technical
force to ensure customer satisfaction
of products and timely delivery.
Packing and Loading
Certifications
we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000
Quality Management Certification. We are also a national high-tech enterprise and have obtained
more than 30 invention patents and utility model patents.
Why Choose Us
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility
model patents. We have attracted customers from all over the world, whether choosing the current
product from our catalog or seeking technical support for your application, you can talk to our
customer service colleagues about your procurement needs.
FAQ
Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research
and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional
engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process,
finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East,
Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can
ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international
courier service, such as DHL, TNT, UPS, or Fedex.
