WS Stone Transport Durable 3 Axles 50 Tons Side Dump Truck Semi Trailer Tipper for Solution
Price:
$12,300.00/units 1-4 units
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
WO SHENG
Product Description
Products Description

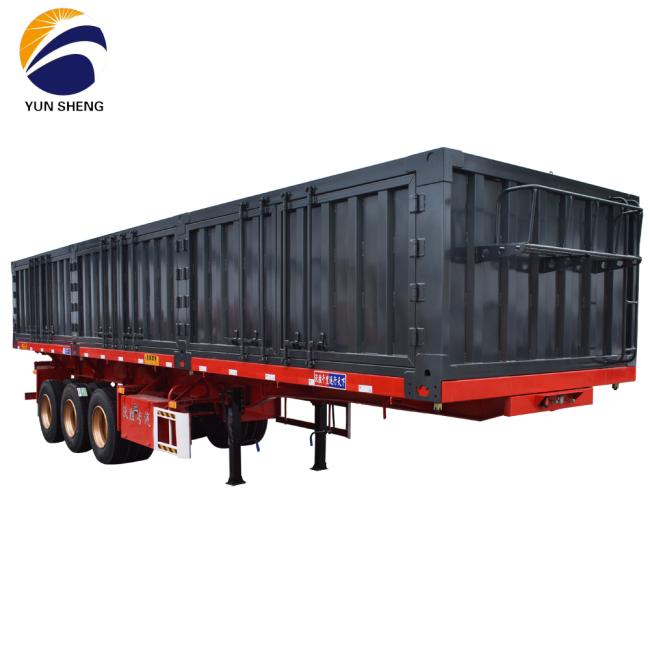

Hydraulic side Dump Semi Trailer
Wosheng Dump Semi Trailers are in great demand from customers, the proven product, which features reliable structure , great loading capacity, excellent power, reliable performance. This trailer model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation
Specification
Loading Capacity | 30-100 ton |
Landing Gear | China brand standard 28Tons |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
Manufacturer | Shandong Wosheng Special Vehicle Manufacturing Co.,Ltd |
Type | Side Dump semi trailer |
Semi trailer Dimension | 13000*2550*2900mm(can be customized) |
Inside dimension | 12800mm*2350mm600mm （can be customized) |
Side wall height | 600mm |
Side wall thicknes(mm) | 1.5mm - 2.5mm Q235 steel |
Door | Vertical corrugated, 2mm thickness zinc-iron alloy bending parts. |
Door frame | 50*70*2 high strength pipe |
Tare weight | 8.5 tons |
Bottom plate thickness(mm) | 2mm zinc-rion alloy plate or 3mm plain plate |
Lifting system | 130 Hydraulic Lifting Cylinder |
Main beam | Q345B Steel Height: 500mm upper plate is 14mm middle plate is 8mm down plate is 16mm |
Axle | 13T/16T,FUWA/BPW/ WS etc |
Spring leaf | 90(w)mm*13/16(thickness)mm*10Layer |
King pin | 90# or 50# |
Landing Gear | China brand standard 28Tons |
Suspension | Mechanical suspension |
Rim | 9.00-22.5/8.00-20/8.5-20 |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available |
Braking system | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber, 45L air tank |
Tool box | One piece 1m *0.5m*0.5m (accept customized size) |
Spare wheel carrier | 1 set |
Painting | 1. Sand blasting processing clean rust 2.coat of anticorrosive prime, 3 coats of final paint 4.colors optional |
Axle
BPW/FUWA/LEAO Axle optional.Integrated advanced low-alloy axle beam,Whole axle beam no welding process.strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400,000 kilometers.
Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.
Suspension and break system
Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose. Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Tire
Double Coin / Ling Long / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.
Packing and Loading
Company Profile
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.
Factory
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Why Choose Us
Shandong wosheng special vehicle manufacturing co.,ltd
Certifications
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
Exhibition
FAQ
1.Are you a factory or a trading company? We are factory,based in Shandong,China.There are total about 150-200 people in our factory.
2. What services can we provide? Accepted Delivery Terms: EXW,FOB, CFR, CIF Accepted Payment Currency: EUR,USD, CNY Accepted Payment Type:T/T,Western Union,Cash
3.Why should you choose us?
We are trailer manufacturer with more than 30 years' experience.we have professional technician and sales, good after-sale service and prompt response sales team.
