High Fence Semi Trailer for Customization 3 Axles 50-70 Tons Stake Type Fence Semi-Trailer
Price:
$12,000.00/sets >=1 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Yun Cheng
Product Description
Products Description
Overview
Video Presentation

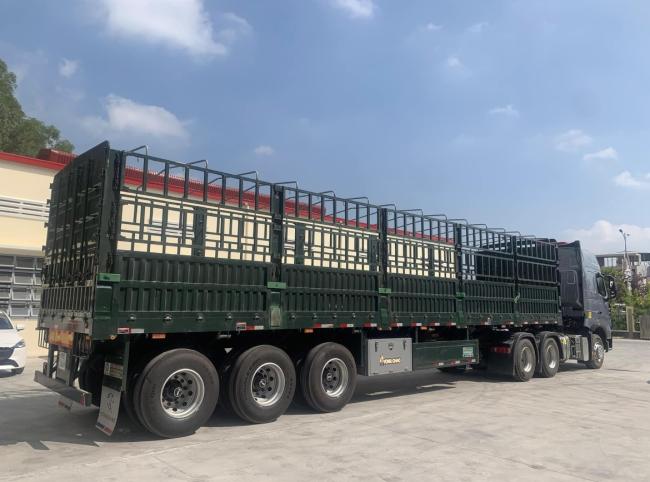

3 Axle Fence Semi Trailer
Fence semi trailer generally less expensive compared to other specialized trailers, making them a cost-effective option
for businesses that require flexibility in cargo transportation..
for businesses that require flexibility in cargo transportation..
Specification
Products Name | Wosheng 3 Axle Fence Steel Stake Semi Trailer |
Max Payload | 42.5 ton |
Size | 12400X2500X3650mm |
Tare weight | 7500kg |
Color | According to customer's requirment |
Axle | 3 axles 13ton FUWA |
Suspension | Mechanical Suspension |
Wheel | 6780X1310X1310 |
King Pin | 2"(50mm)or3.5"(90mm) |
Landing gear | SAF two speed 28t Heavy Duty Landing Gear |
leaf spring | 90(w)mm*13(thickness)mm*10(layer) |
platform plate | 3mm |
logo | According to customer's requirment |
Application | Coal/ Livestock/Vegetable/Cargo Loading |
SIZE | 12400X2500X3650mm |
Payload | 42.5 ton |
Main beam | Height: 500mm upper plate is 14mm middle plate is 8mm down plate is 16mm Q345B Steel |
Axles | 3 axles 13ton FUWA |
side wall height | 600-1700mm(can be customized) |
side beam | 16mm channel steel(material is Q235B steel) |
Bottom Platform | 3mm steel plate |
Suspension | Mechanical Suspension |
leaf spring | 90(w)mm*13(thickness)mm*10(layer) |
tire | 12.00R22.5 Trangle or other brand |
Rim | 9.0-22.5 |
Kin pin | 2"(50mm)or3.5"(90mm) |
Landing gear | SAF two speed 28t Heavy Duty Landing Gear |
Braking system | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; three units of 40L air tanks |
Electrical | LED light , 7 ways ,24V |
Tool box | one set |
spare wheel carrier | one set |
ABS | 4S/2M |
Painting | 1.Sand blasting processing clean rust.2.Coat of anticorrosive primer. |
3.Coats of finish urethane paint. | |
4.Color as customer choice. |
Axle.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
Axle suspension and brake system.
BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost.
Suspension and break system
Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose. Brake system: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe
Tire
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.
Recommend Products
Company Profile
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.
Factory
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Packing and Shipping
Certifications
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
Exhibition
FAQ
Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design,scientific research and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for furtherdiscussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for furtherdiscussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
