Large Capacity 3/4 Axle Front Fender Side Column Flatbed Container Truck Semi Trailer
Price:
$8,000.00/sets 1-4 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Yun Sheng
Product Description
Products Description

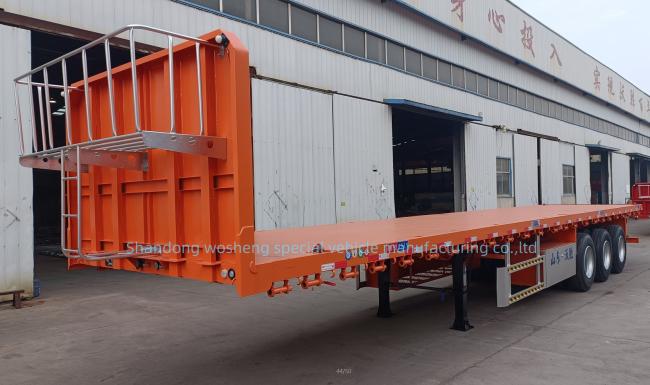

Flatbed Semi Trailer
Wosheng Flatbed semi-trailers are usually used to transport 20FT/40FT/45FT container The lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles. According to the number of axles and the size of the tires, the load of the flatbed semi trailer is also different. The more the number of axles, the greater the load, and the load range is between 30-80 tons.
Specification
Product Name | Flatbed Semi Trailer | |
Dimension(Lx W x H)（mm） | outside 12400×2610×1550mm (customizable) | |
Front Guard Height (mm) | 1550mm (customizable) | |
Tare weight (kg) | 7000 (depends on final configuration) | |
Max Loading Capacity (kg) | 50000 （customizable) | |
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) | |
Side Beam | Q235 16# channel steel (customizable) | |
Bottom Plate | 3mm diamond plate (customizable) | |
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4/6axles ..., Axle brand optional like SAF /FUWA/BPW etc | |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) | |
Rim | 9.00-22.5/8.00-20/8.50-20 | |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional | |
Suspension | Mechanical Suspension Air Suspension(American or Geman) | |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) | |
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. | |
Twist-lock | 4/8/12 units (customizable) | |
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums | |
ABS System | None or installed as your requirement. | |
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) | |
Color | As per customer requirement | |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket | |
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar | |
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; | |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. | |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. | |
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. | |
Pls kindly noted that pictures and configuration information are only for your reference.The final product can be made according to specific requirements. | ||
Details Images
Featured Tire
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance
Suspension and break system
Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose.
Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
abrasion.Meanwhile,Easy to disassemble and maintain.
Axle
BPW/FUWA/LEAO Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole
Axle Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.
TWIST LOCK
Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.
Landing Gear
The warranty period of Chinese brand/JOST landing
gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for
service from -30°C to 120°C.
Company Profile
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used
semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is
Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production
experience in the trailer industry. Please believe that our professional technology and manufacturing
experience can help your transportation be safer and efficient. we can provide high quality products
and competitive prices.
Factory
Our factory commit to strict quality
control and thoughtful customer
service, our experienced staff can
discuss your requirements at any time
to ensure your full satisfaction. We
not only want to be perfect in
appearance, but also pursue the
delicacy of detail. We have advanced
modern equipment, strong technical
force to ensure customer satisfaction
of products and timely delivery.
Container flatbed semi trailer
Flatbed Semi Trailer is the main load-bearing part, which is composed of the main beam, side beam, beam, bottom plate, suspension and so on. The steel plate in the middle of the beam is made of Q345B manganese steel with a thickness of 8mm
Production Processing Plant
Wosheng Flatbed Semi Trailer is mainly used to carry heavy duty containers.With better carrying capacity, increased off-road capability, mobility, road safety and longer service life. We have professional technicians to operate.The chassis is a frame of welded beams and beams with mounting brackets and equipment to hold and securely hold the load.With side protection and support.
Flatbed Tractor Trailer Features
The flatbed trailer has a reinforced frame made of high-strength steel HG60, a thickened floor, a reliable chassis and an efficient braking system.
Packing and Loading
FAQ
Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research
and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional
engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process,
finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East,
Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can
ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international
courier service, such as DHL, TNT, UPS, or Fedex.
Certifications
we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000
Quality Management Certification. We are also a national high-tech enterprise and have obtained
more than 30 invention patents and utility model patents.
Why Choose Us
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility
model patents. We have attracted customers from all over the world, whether choosing the current
product from our catalog or seeking technical support for your application, you can talk to our
customer service colleagues about your procurement needs.
